Delock 12590 Mag mount antenna 5G, LTE, UMTS
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

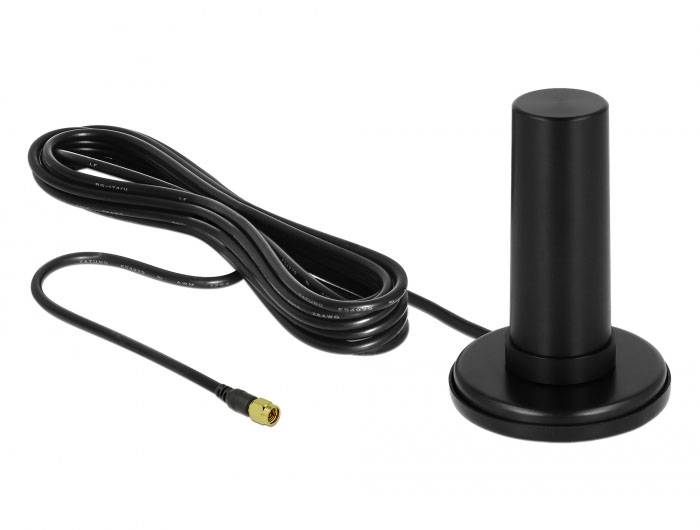

5G LTE antenna SMA plug 0 - 3 dBi solid omni-directional with magnetic base and connection cable RF195 3 m outdoor black
Technical specifications
- Product type
Mobile phone antenna
- Mobile phone standard
5G
LTE
- Factory colour
Black
- Length
250 cm
- Antenna type
Mag mount antenna
- Suitable for mains
5G
LTE
UMTS
- Width
110 mm
- Height
77 mm
- Cable design
Round
- Version
Cable
- Depth
77 mm
IPX5
- Cable use
C13/C14 appliances
- Charging method (Power Delivery)
w/o USB Power Delivery
- Charging capacity (max.)
15 W
- Charging capacity (min.)
10 W
- Weight
0.46
- UKCA
yes
- Operating temperature (T-T)
-20 - 70 °C
- Antenna gain level (max)
3 dBi
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3381974 Delock 12590 Mag mount antenna 5G, LTE, UMTS
User & Safety Instructions
User & Safety Instructions 3381974 Delock 12590 Mag mount antenna 5G, LTE, UMTS
Description
The Delock antenna allows you to use a range of 5G and LTE tapes indoors and outdoors.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range:
- 698 MHz - 960 MHz
- 1710 MHz - 2170 MHz
- 2500 MHz - 2700 MHz
- 3400 MHz - 3800 MHz
- 5G, ZigBee, LoRa, DECT, Z wave NB-IoT, Bluetooth, GSM, UMTS, LTE, ISM, WLAN
- 2.4 GHz
- Antenna gain 0 - 3 dBi
- Impedance: 50 ohm
- VSWR: ≤2.0
- Polarisation: linear, vertical
- Operating temperature: -20 °C ~ 70 °C
- ABS casing material
- Colour, black
- Protection system: IPX5
- Cable type: Coaxial
- Cable type RF195
- Cable color: Black
- Cable attenuation: 0.46 dB @ 1.5 GHz per meter
- Cable diameter: Approx. 4.95 mm
- Cable length incl. connection: Approx. 3 m.
- Dimensions (LxD): Approx. 110.0 x 77.0 mm
System requirements
- Device with a free SMA connection
