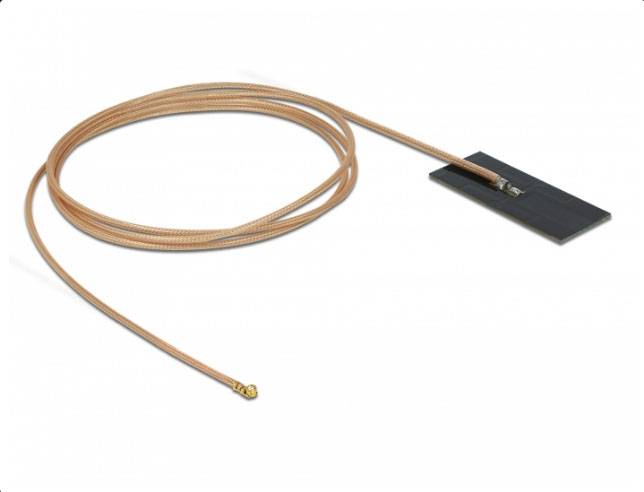

Delock 12609 12609 Wi-Fi antenna 1.2 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock 12609 network antenna MHF 1.2 dBi
- MHF black
- 1.2 dBi
- 2.4 - 2.5/5.15 - 5,875 GHz
- 50 Ohm
Technical specifications
- Frequency range 2.4 - 2.5/5.15 - 5,875 GHz
- Impedance: 50 ohm
- Cable type: RG-178
- Product type
Wi-Fi antenna
- Gain
1.2 dBi
- Type
Flat antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Indoors
- Antenna socket
IPEX plug
- Weight
0.10
- No. of ports
1
- Dual Band compatibility
2.4 GHz and 5 GHz
- Mounting type
Adhesive
- Width
14.7 mm
- Length
40.00 mm
- Cable design
Round
- Cable length
1 m
- Version
Cable
- Factory colour
Black
- Depth
40 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3382494 Delock 12609 12609 Wi-Fi antenna 1.2 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3382494 Delock 12609 12609 Wi-Fi antenna 1.2 dBi 2.4 GHz
Description
This Delock antenna allows you to use the 2.4 GHz + 5 GHz WLAN bands indoors.
This text is machine translated.
This text is machine translated.
Features
- Connection: 1 x I-PEX Inc., MHF® I plug
- Frequency range:
- 2400 MHz - 2500 MHz
- 5150 MHz - 5875 MHz
- Bluetooth, WLAN 2.4/5.0 GHz, ZigBee 2.4 GHz, ISM
- Antenna gain 0.5 - 1.2 dBi
- VSWR 2.5
- Impedance: 50 ohm
- Mounting type: Adhesive mounting
- Operating temperature: -10 °C ~ 55 °C
- Housing material: FR4
- Colour, black
- Cable type: Coaxial
- Cable type: RG-178
- Cable color: Black
- Cable diameter: Approx. 1.8 mm
- Cable attenuation: 2.9 dB @ 2.4 GHz per meter
- Minimum bend radius: Approx. 7.5 mm
- Dim. (LxB): Approx. 40.00 x 14.65 mm
- Cable length incl. connection: Approx. 1 m.
System requirements
- Device with a free I-PEX Inc., MHF® I connector
