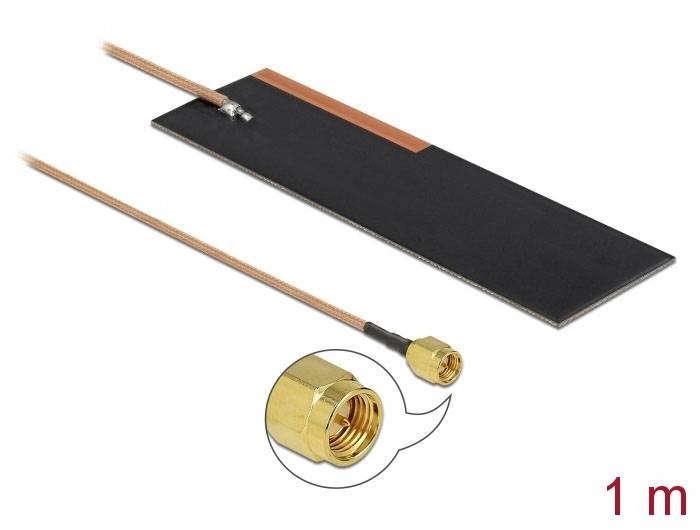

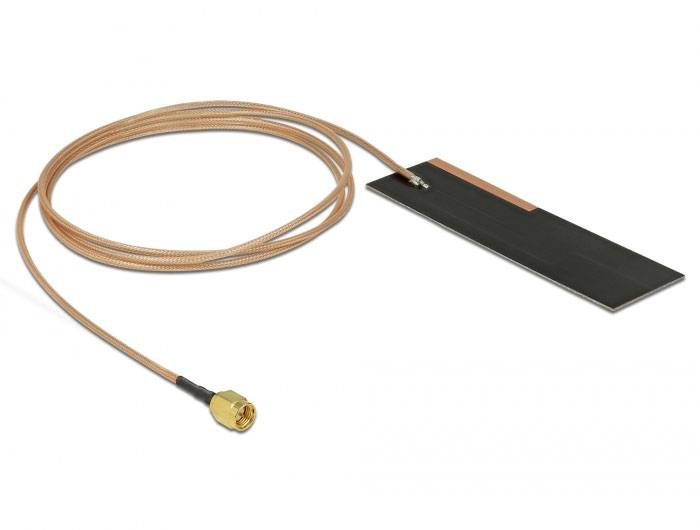

Delock 12620 12620 LPWAN antenna 2 dBi
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock 12620 network-antenna SMA 2 dBi
- SMA black
- 2 dBi
- 0,703 – 0,824; 0,832 – 0.96 GHz
- 50 Ohm
- Male
Technical specifications
- Frequency range 0,703 - 0,824; 0,832 - 0.96 GHz
- Impedance: 50 ohm
- Cable type: RG-178
- Product type
LPWAN antenna
- Gain
2 dBi
- Type
Flat antenna
- Used at
Indoors
- Antenna socket
SMA plug
- Weight
0.02
- No. of ports
1
- Mounting type
Adhesive
- Width
25 mm
- Height
85 mm
- Length
85.0 mm
- Cable design
Round
- Cable length
1 m
- Version
Cable
- Factory colour
Black
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3382499 Delock 12620 12620 LPWAN antenna 2 dBi
User & Safety Instructions
User & Safety Instructions 3382499 Delock 12620 12620 LPWAN antenna 2 dBi
Description
The Delock antenna allows the NB-IoT bandwidth to be used indoors.
This text is machine translated.
This text is machine translated.
Features
- ZigBee, Z-Wave, GSM, LTE, NB-IoT, LoRa, ISM
- Antenna gain 1 - 2 dBi
- VSWR 3.5
- Impedance: 50 ohm
- Mounting type: Adhesive mounting
- Operating temperature: -10 °C ~ 55 °C
- Housing material PCB
- Colour, black
- Cable type: Coaxial
- Cable type: RG-178
- Cable color: Black
- Cable diameter: Approx. 1.8 mm
- Cable attenuation: 2.9 dB @ 2.4 GHz per meter
- Minimum bend radius: Approx. 7.5 mm
- Dim. (LxB): Approx. 85.0 x 25.0 mm
- Cable length incl. connection: Approx. 1 m.
System requirements
- Device with a free I-PEX Inc., MHF® I connector
