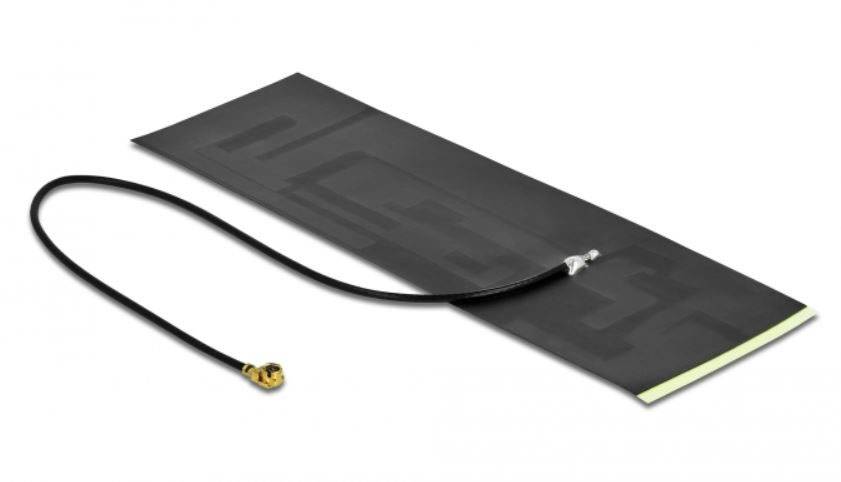

Delock 12626 Internal antenna 5G, LTE, UMTS
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
5G LTE antenna I-PEX Inc., MHF® I plug -0.42 - 5.00 dBi omnidirectional FPC
Technical specifications
- Cable type 1.13
- Product type
Mobile phone antenna
- Mobile phone standard
5G
LTE
- Factory colour
Black
- Length
95 mm
- Antenna type
Internal antenna
- Suitable for mains
5G
LTE
UMTS
- Width
30 mm
- Height
1.6 mm
- Cable design
Round
- Cable length
0.15 m
- Version
Cable
- Depth
1.6 mm
- Cable use
C13/C14 appliances
- Weight
0.00
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Antenna gain level (max)
5 dBi
- Impedance
50 Ohm
- Maximum indoor range
617 - 798 MHz
803 - 960 MHz
1452 - 1496 MHz
1710 - 2270 MHz
2300 - 2690 MHz
3300 - 3800 MHz
4200 - 5000 MHz
Documents & Downloads
Datasheet
Datasheet 3381976 Delock 12626 Internal antenna 5G, LTE, UMTS
User & Safety Instructions
User & Safety Instructions 3381976 Delock 12626 Internal antenna 5G, LTE, UMTS
Description
This Delock 5G LTE antenna allows you to use various 5G LTE bands indoors. It is fully GSM, UMTS, 5G LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT, and LoRa compatible.
5G mobile phone standard
5G will use more and wider frequency spectrum than its predecessors LTE (4G) and UMTS (3G).
The 5G standard promises more throughput, capacity and low latency.
This text is machine translated.
5G mobile phone standard
5G will use more and wider frequency spectrum than its predecessors LTE (4G) and UMTS (3G).
The 5G standard promises more throughput, capacity and low latency.
This text is machine translated.
Features

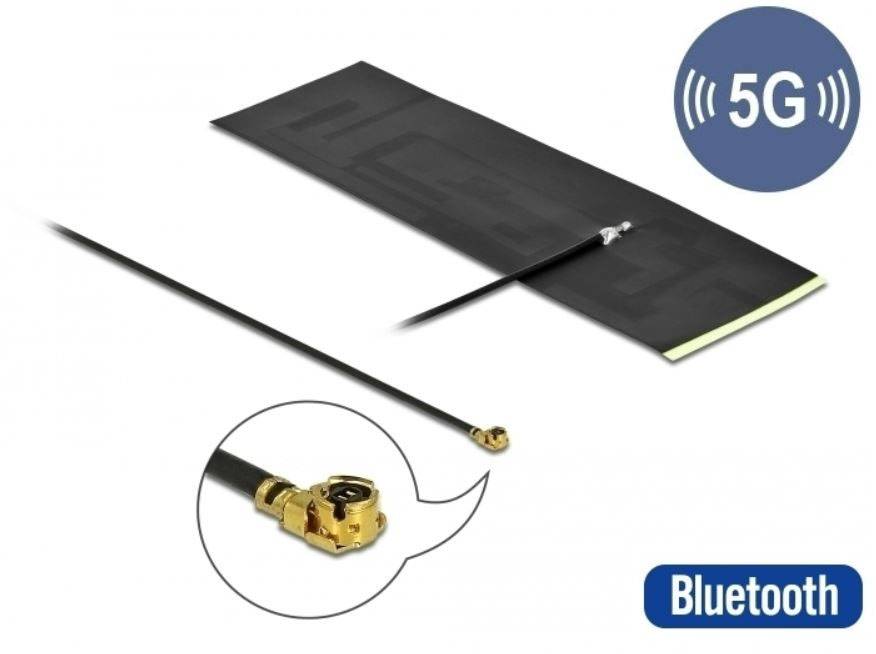

- Connection: 1 x I-PEX Inc., MHF® I plug
- Frequency range:
- 617 - 798 MHz
- 803 - 960 MHz
- 1452 - 1496 MHz
- 1710 - 2270 MHz
- 2300 - 2690 MHz
- 3300 - 3800 MHz
- 4200 - 5000 MHz
- Antenna gain 0.42 - 5.00 dBi
- VSWR: 3.5 - 4.0
- Impedance: 50 ohm
- Polarisation: linear, vertical
- Mounting type: Adhesive mounting
- Operating temperature: -10 °C ~ 55 °C
- FPC casing material
- Colour, black
- Cable type: Coaxial
- Cable type 1.13
- Cable color: Black
- Cable diameter: Approx. 1.13 mm
- Cable attenuation: 3.2 dB @ 2.4 GHz per meter
- Minimum bend radius: Approx. 4.5 mm
- Dim. (LxWxH): Approx. 95 x 30 x 1 mm
- Length including connections (L): Approx. 15 cm
System requirements
- Device with a free I-PEX Inc., MHF® I connector
