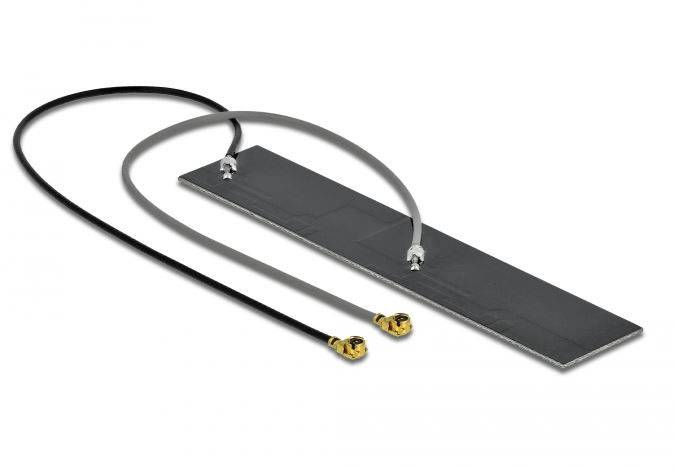

Delock 12627 12627 Wi-Fi antenna 5 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock WLAN 802.11 ac/ax/a/h/b/g/n Double antenna 2 x I-PEX Inc., MHF® I plug 2.2 – 4.0 dBi 2 x 15 cm PCB internal adhesive mounting
- MHF
- 5 dBi
- 2.4 - 2.5, 5.15 - 5.85 GHz
- 50 Ohm
- Linear polarization
Technical specifications
- 2.4 – 2.5 GHz, 5.15 – 5.85 GHz band
- Impedance: 50 ohm
- Product type
Wi-Fi antenna
- Gain
5 dBi
- Type
Flat antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Indoors
- Antenna socket
IPEX plug
- Weight
0
- No. of ports
2
- Dual Band compatibility
2.4 GHz and 5 GHz
- Mounting type
Adhesive
- Polarisation
Linear
Vertical
- Width
150 mm
- Height
1 mm
- Length
780 mm
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Charging capacity (max.)
7.5 W
- Charging capacity (min.)
2.5 W
- UKCA
yes
- Operating temperature (T-T)
-10 - 50 °C
Documents & Downloads
Datasheet
Datasheet 3382501 Delock 12627 12627 Wi-Fi antenna 5 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3382501 Delock 12627 12627 Wi-Fi antenna 5 dBi 2.4 GHz
Description
This Delock antenna allows you to use the 2.4 GHz + 5 GHz WLAN bands indoors.
This text is machine translated.
This text is machine translated.
Features
- Connection: 2 x I-PEX Inc., MHF® I plug
- Frequency range:
- P1:
- 2400 - 2500 MHz
- 5150 - 5850 MHz
- P2:
- 2400 - 2500 MHz
- 5150 - 5850 MHz
- Bluetooth, WLAN 2.4/5.0 GHz, ZigBee 2.4 GHz, ISM
- Antenna gain: Less than alspan style="font-size:11.0pt 2.2 – 4.0 dB less than/span
- VSWR: 2.0 - 4.0
- Impedance: 50 ohm
- Polarisation: linear, vertical
- Mounting type: Adhesive mounting
- Operating temperature: -10 °C ~ 55 °C
- Housing material PCB
- Colour, black
- Cable type: Coaxial
- Cable type 1.13
- Cable color: Black and gray
- Cable diameter: Approx. 1.13 mm
- Cable attenuation: 3.2 dB @ 2.4 GHz per meter
- Minimum bend radius: Approx. 4.5 mm
- Dim. (LxWxH): Approx. 780 x 150 x 1 mm
- Length including connections (L): 2 x approx. 15 cm
System requirements
- Device with two free I-PEX Inc., MHF® 1 connectors
