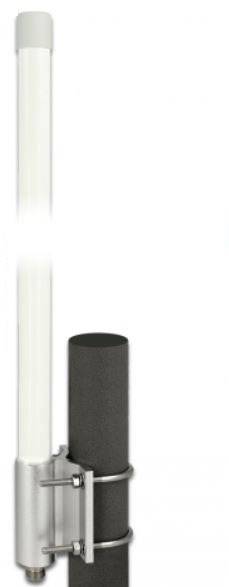

Delock 12631 Wall/pole mount antenna 5G, LTE, UMTS
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
5G LTE antenna N socket -2.14 - 2.93 dBi 33.5 cm rigid wall and mast mounting omni-directional outdoor white
Technical specifications
- Product type
Mobile phone antenna
- Mobile phone standard
5G
LTE
- Factory colour
White
- Length
350 cm
- Antenna type
Wall/pole mount antenna
- Suitable for mains
5G
LTE
UMTS
- Width
27 mm
- Height
335 mm
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Weight
284 g
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Antenna gain level (max)
2.93 dBi
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
- Diameter
2.7 cm
- Horizontal beam width
360°
- Vertical beam width
17°
- Maximum indoor range
617 - 798 MHz
803 - 960 MHz
1452 - 1496 MHz
1710 - 2200 MHz
2300 - 2690 MHz
3300 - 3800 MHz
4200 - 5000 MHz
- Power consumption (max)
100 W
Documents & Downloads
Datasheet
Datasheet 3381639 Delock 12631 Wall/pole mount antenna 5G, LTE, UMTS
User & Safety Instructions
User & Safety Instructions 3381639 Delock 12631 Wall/pole mount antenna 5G, LTE, UMTS
Description
This waterproof antenna from Delock enables the use of various 5G and LTE tapes outdoors. It is fully GSM, UMTS, 5G LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT, and LoRa compatible.
5G mobile phone standard
5G will use more and wider frequency spectrum than its predecessors LTE (4G) and UMTS (3G).
The 5G standard promises more throughput, capacity and low latency.
This text is machine translated.
5G mobile phone standard
5G will use more and wider frequency spectrum than its predecessors LTE (4G) and UMTS (3G).
The 5G standard promises more throughput, capacity and low latency.
This text is machine translated.
Features
- 1 x N socket, waterproof
- Frequency range:
- 617 - 798 MHz
- 803 - 960 MHz
- 1452 - 1496 MHz
- 1710 - 2200 MHz
- 2300 - 2690 MHz
- 3300 - 3800 MHz
- 4200 - 5000 MHz
- Antenna gain -2.14 - 2.93 dBi
- Impedance: 50 ohm
- VSWR: 3.0 - 5.0
- Polarisation: linear, vertical
- Operating temperature -40 °C ~ 85 °C
- Housing material:GFK

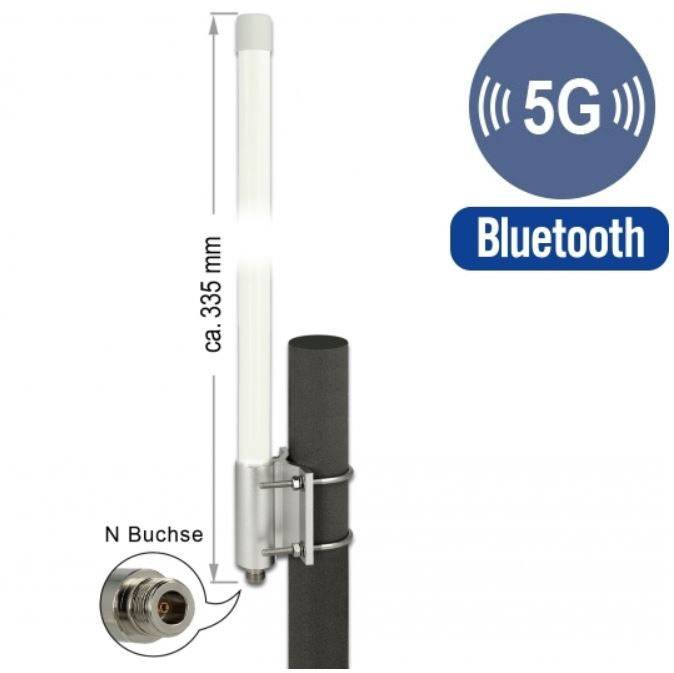

- Length approx. 335 mm
- Diameter approx. 27 mm
- Weight approx. 284 g
System requirements
- Device with an empty N connection
