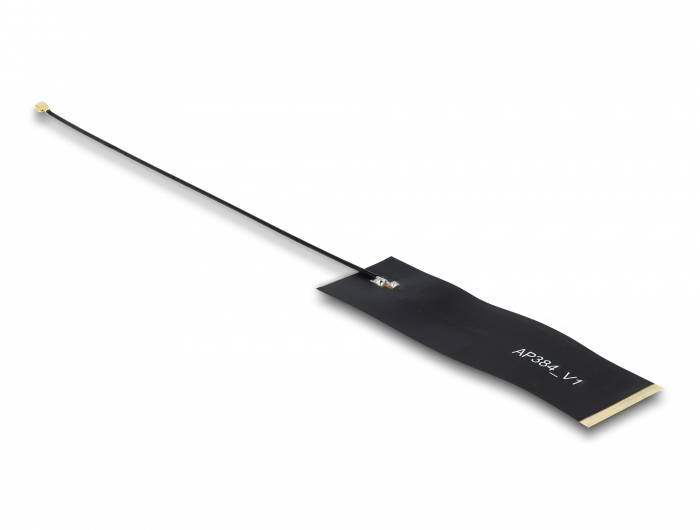

Delock 12648 Internal antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Lora antenna 863 - 928 MHz I-PEX Inc., MHF® 4 plug 1.68 dBi 15 cm 1.13 FPC black adhesive mounting
Technical specifications
- Product type
Mobile phone antenna
- Factory colour
Black
- Gain
1.68 dBi
- Antenna type
Internal antenna
- Width
20 mm
- Height
85 mm
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Weight
0.00
- UKCA
yes
- Gain
1.68 dB
- Impedance
50 Ohm
- FM band range
863 - 928 MHz
Documents & Downloads
Datasheet
Datasheet 3382505 Delock 12648 Internal antenna
User & Safety Instructions
User & Safety Instructions 3382505 Delock 12648 Internal antenna
Description
The Delock antenna allows you to use the 863 - 928 MHz bands indoors.
This text is machine translated.
This text is machine translated.
Features
- Connection: 1 x I-PEX Inc., MHF® 4 plug
- Frequency range 863 - 928 MHz
- Lora, NB-IoT, ZigBee, Z-Wave (908, 921), ISM, GSM
- Antenna gain 1.68 dBi
- Impedance: 50 ohm
- VSWR 2.5
- Polarisation: linear, vertical

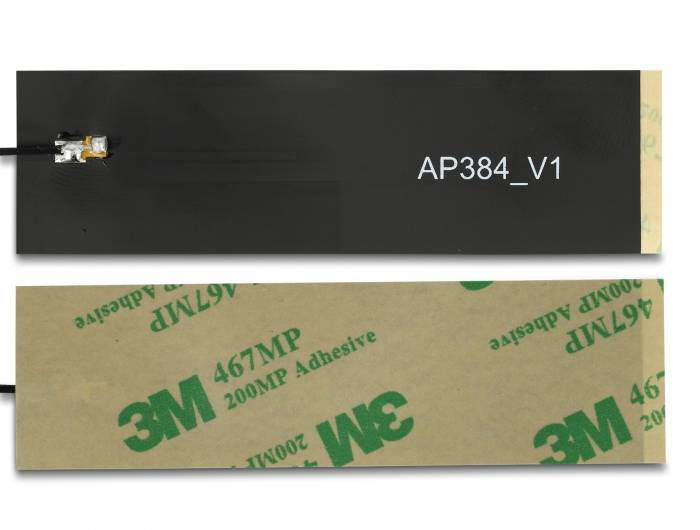

- Mounting type: Adhesive mounting
- Operating temperature: -10 °C ~ 55 °C
- FPC casing material
- Colour, black
- Cable type: Coaxial
- Cable type 1.13
- Cable color: Black
- Cable diameter: Approx. 1.13 mm
- Cable attenuation: 2.5 dB @ 2400 MHz per meter
- Minimum bend radius: Approx. 4.5 mm
- Length including connections (L): Approx. 15 cm
- Dim. (LxB): Approx. 85 x 20 mm
System requirements
- Device with a free I-PEX Inc., MHF® 4 connector
