Delock 12695 Internal antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

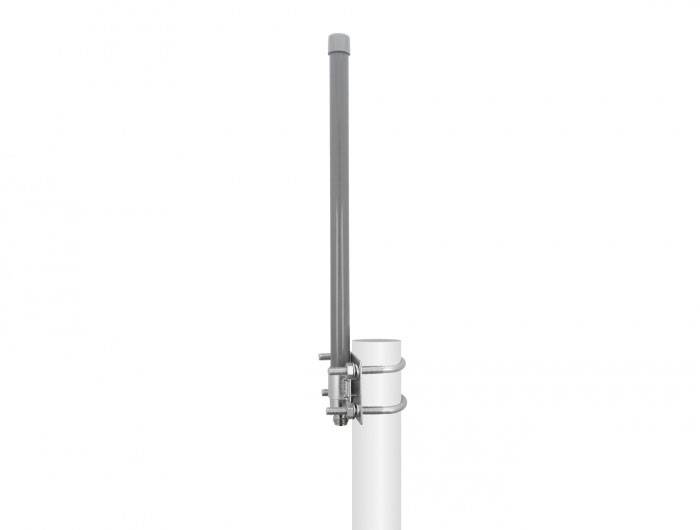

433 MHz antenna N socket 2 dBi 40 cm omnidirectional rigid outdoor gray
Technical specifications
- Product type
Mobile phone antenna
- Factory colour
Grey
- Gain
2 dBi
- Length
2.2 cm
- Antenna type
Internal antenna
- Width
100 mm
- Height
40 cm
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Weight
490 g
- UKCA
yes
- Operating temperature (T-T)
-40 - 80 °C
- Antenna gain level (max)
2 dBi
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
- Diameter
2.2 mm
Documents & Downloads
Datasheet
Datasheet 3382534 Delock 12695 Internal antenna
User & Safety Instructions
User & Safety Instructions 3382534 Delock 12695 Internal antenna
Description
This Delock antenna allows you to use the 433 MHz bandwidth in indoor and outdoor areas.
This text is machine translated.
This text is machine translated.
Features
- 1 x N socket
- Frequency range 433 MHz
- Antenna gain 2 dBi
- Impedance: 50 ohm
- VSWR: ≤2.0
- Polarisation: Vertical
- Operating temperature: -40 °C ~ 80 °C
- Housing material:GFK
- Colour: grey
- Dimensions (LxD): Approx. 40 x 2.2 cm
- Thread diameter: Approx 15.5 mm
System requirements
- Device with a free N plug
