Delock 12701 12701 Wi-Fi antenna 6 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

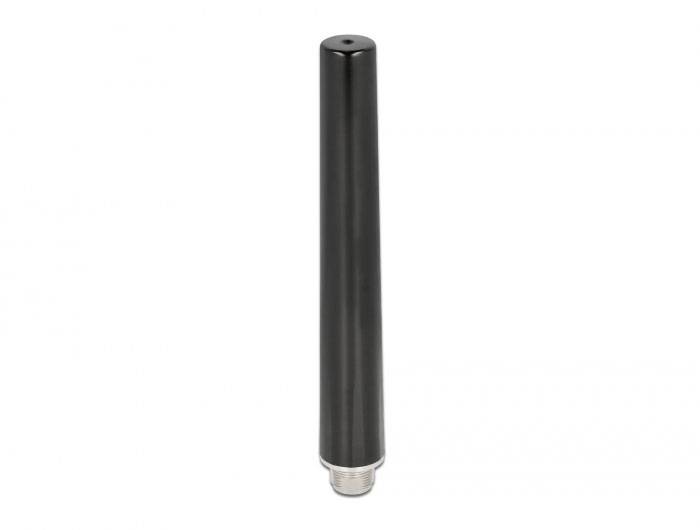

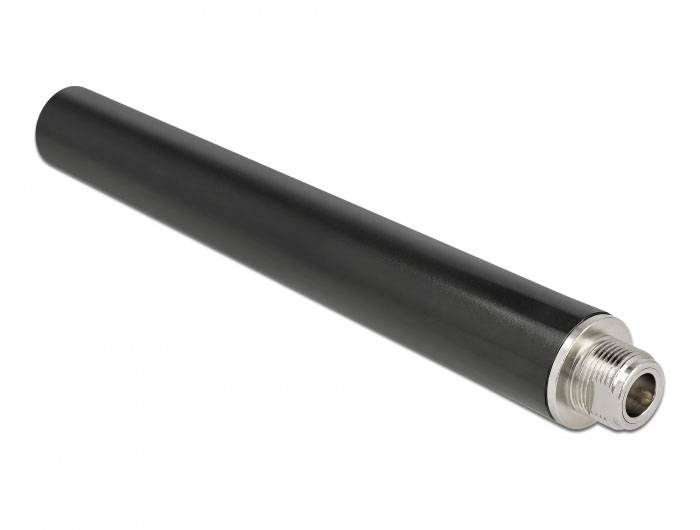

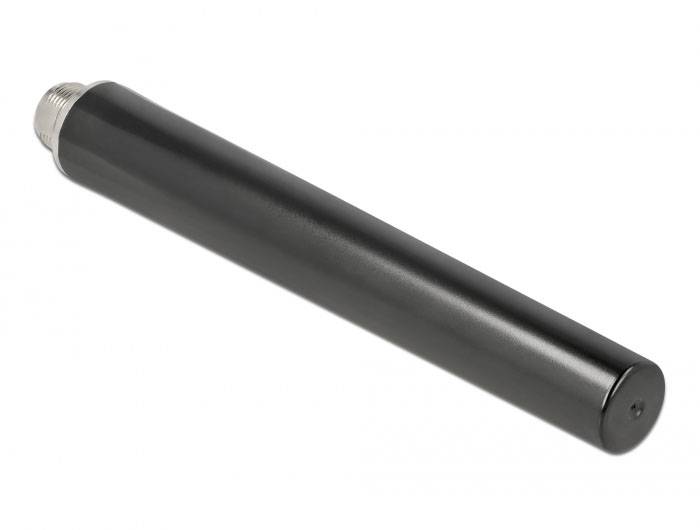

Delock Dualband WLAN WiFi 6 Antenna N socket 4 - 6 dBi 16.55 cm omnidirectional rigid outdoor black
- Omni-directional N-type antenna black
- 6 dBi
- 5.15 - 5,875 GHz
- 50 Ohm
- Dual polarisation
Technical specifications
- 5.15 - 5,875 GHz
- Impedance: 50 ohm
- Product type
Wi-Fi antenna
- Gain
6 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Outdoors
- Antenna socket
N socket
- Antenna socket
N socket
- Weight
63.2 g
- No. of ports
1
- Dual Band compatibility
2.4 GHz and 5 GHz
- Polarisation
Linear
Vertical
- Width
22.5 mm
- Height
165.5 mm
- Length
200 cm
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Cable use
C13/C14 appliances
- Material (details)
Acrylonitrile butadiene styrene (ABS)
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Gain
4 / 6 dBi
Documents & Downloads
Datasheet
Datasheet 3382098 Delock 12701 12701 Wi-Fi antenna 6 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3382098 Delock 12701 12701 Wi-Fi antenna 6 dBi 2.4 GHz
Description
This waterproof WLAN antenna from Delock enables the use of different WLAN bands outdoors.
This text is machine translated.
This text is machine translated.
Features
- 1 x N socket
- WLAN standard: WiFi 6, IEEE 802.11 ax/ac/a/h/b/g/n
- Frequency range:
- 2400 - 2500 MHz
- 5150 - 5875 MHz
- Antenna gain 4 - 6 dBi
- Impedance: 50 ohm
- VSWR: ≤2.0
- Polarisation: linear, vertical
- Operating temperature -40 °C ~ 85 °C
- ABS casing material
- Dimensions (LxD): Approx. 165.5 x 22.5 mm
- Weight: approx 63.2 g
System requirements
- Device with an empty N connection
