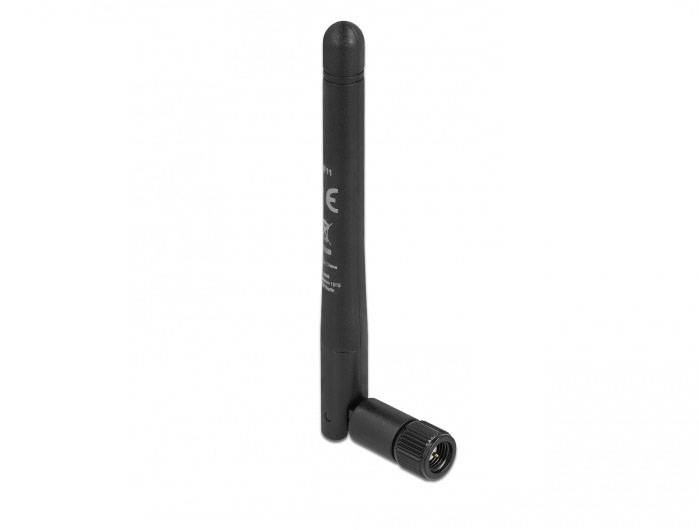

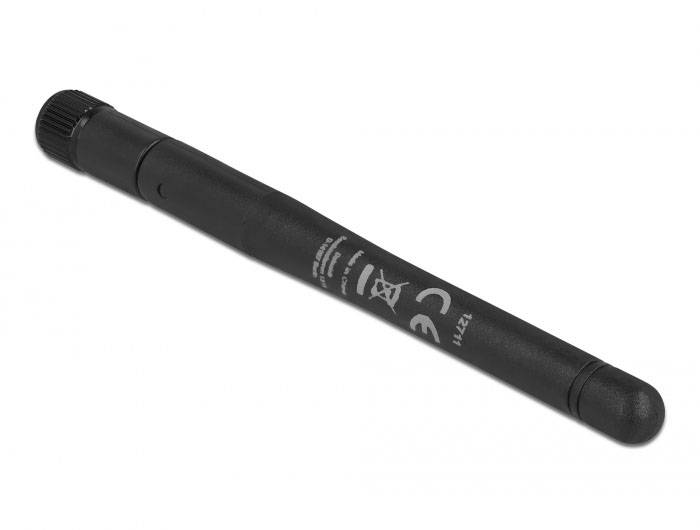

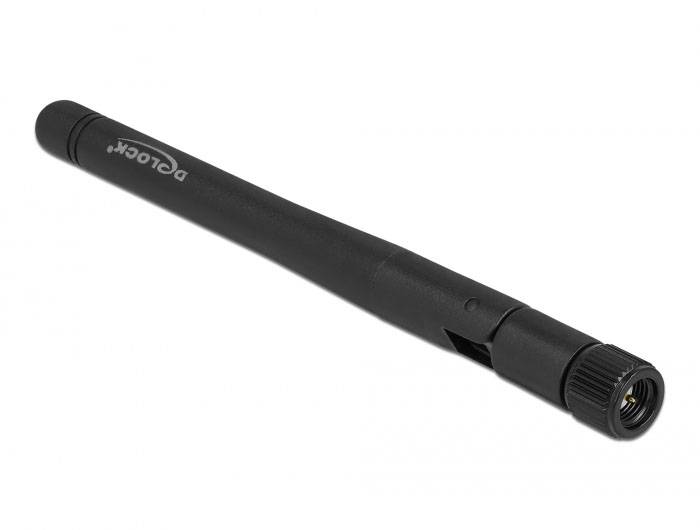

Delock 12711 Internal antenna 5G
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
5G 3.3 - 5.0 GHz antenna SMA plug -1.0 - 4.5 dBi 10.9 cm omni-directional with articulated joint and flexible material black
Technical specifications
- Product type
Mobile phone antenna
- Mobile phone standard
5G
LTE
UMTS
- Factory colour
Black
- Antenna type
Internal antenna
- Suitable for mains
5G
- Width
10 mm
- Height
10.9 cm
- Version
Adapter
- Depth
109 mm
- Cable use
Networks
- Weight
0.01
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Antenna gain level (max)
4.5 dBi
- Impedance
50 Ohm
- Diameter
1 cm
Documents & Downloads
Datasheet
Datasheet 3381981 Delock 12711 Internal antenna 5G
User & Safety Instructions
User & Safety Instructions 3381981 Delock 12711 Internal antenna 5G
Description
This 5G antenna from Delock enables the use of different 5G bands indoors.
5G mobile phone standard
5G will use more and wider frequency spectrum than its predecessors LTE (4G) and UMTS (3G). The 5G standard promises more throughput, capacity and low latency.
This text is machine translated.
5G mobile phone standard
5G will use more and wider frequency spectrum than its predecessors LTE (4G) and UMTS (3G). The 5G standard promises more throughput, capacity and low latency.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range 3.3 - 5.0 GHz
- Antenna gain -1.0 - 4.5 dBi
- Impedance: 50 ohm
- Polarisation: linear, vertical
- VSWR 4.0
- Operating temperature -40 °C ~ 85 °C
- Colour, black
- Length approx. 10.9 cm
- Diameter approx. 10.0 mm
System requirements
- Device with a free SMA socket
