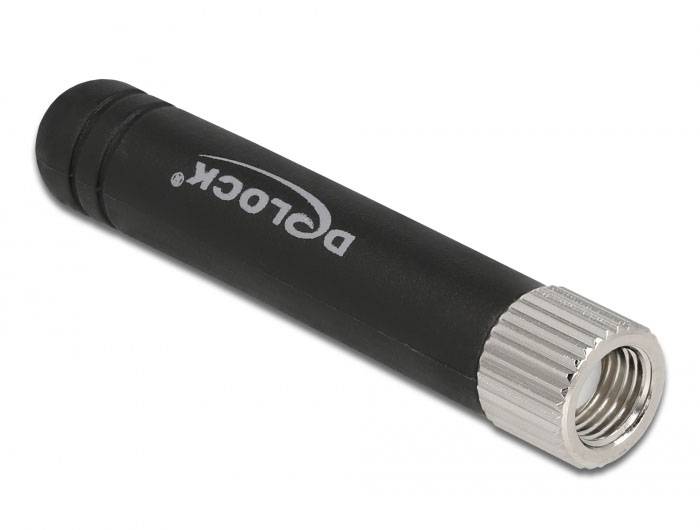

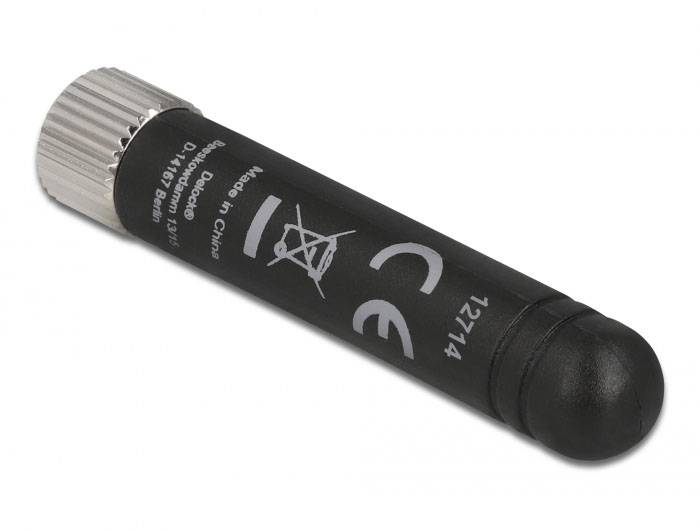

Delock 12714 12714 Wi-Fi antenna 3.7 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Delock WLAN 802.11 b/g/n Antenna RP-SMA Plug 1.7 - 3.7 dBi omnidirectional rigid with flexible material black
- Omni-directional antenna SMA Black
- 3.7 dBi
- 2.4 ~ 2.5 GHz
- 50 Ohm
- Linear Polarisation Female
Technical specifications
- 2.4 - 2.5 GHz
- Impedance: 50 ohm
- Product type
Wi-Fi antenna
- Gain
3.7 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Indoors
- Antenna socket
RPSMA plug
- Antenna socket
SMA plug
- Weight
0
- No. of ports
1
- Polarisation
Linear
Vertical
- Width
8 mm
- Height
47.3 mm
- Length
4.73 cm
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Depth
8 mm
- Cable use
C13/C14 appliances
- Charging capacity (max.)
7.5 W
- Charging capacity (min.)
2.5 W
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Power handling
25 W
Documents & Downloads
Datasheet
Datasheet 3382537 Delock 12714 12714 Wi-Fi antenna 3.7 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3382537 Delock 12714 12714 Wi-Fi antenna 3.7 dBi 2.4 GHz
Description
This Delock antenna enables the use of the 2.4 GHz band in the interior. It is fully Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM 2.4 GHz compatible.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x RP-SMA plug
- Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM
- Frequency range: 2.4 - 2.5 GHz.
- Antenna gain 1.7 - 3.7 dBi
- Impedance: 50 ohm
- VSWR 1.57
- Polarisation: linear, vertical
- Operating temperature -40 °C ~ 85 °C
- ABS casing material
- Colour, black
- Antenna length: Approx. 4.73 cm
System requirements
- Device with a free RP-SMA socket
