Delock 12716 12716 LPWAN antenna 1.6 dBi
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

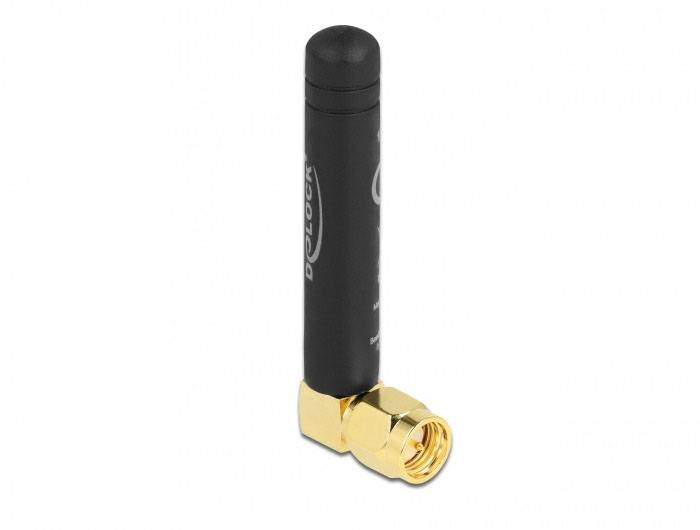

Delock LPWAN 868 MHz antenna SMA plug 90° 1.6 dBi omnidirectional rigid black
- Omni-directional antenna SMA Black
- 1.6 dBi
- 0.86 - 0.87 GHz
- 50 Ohm
- Vertical polarization
Technical specifications
- 0.86 - 0.87 GHz
- Impedance: 50 ohm
- Product type
LPWAN antenna
- Gain
1.6 dBi
- Type
Monopole antenna
- Used at
Outdoors
- Antenna socket
SMA plug
- Antenna socket
SMA plug
- Weight
0
- No. of ports
1
- Polarisation
Vertical
- Width
8 mm
- Height
48.6 mm
- Length
4.86 cm
- Cable design
Round
- Version
Cable
- Factory colour
Black
- Depth
8 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
Documents & Downloads
Datasheet
Datasheet 3382109 Delock 12716 12716 LPWAN antenna 1.6 dBi
User & Safety Instructions
User & Safety Instructions 3382109 Delock 12716 12716 LPWAN antenna 1.6 dBi
Description
This Delock antenna allows you to use the 868 MHz bandwidth in indoor and outdoor areas.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x 90° SMA plugs
- Frequency range 860 - 870 MHz
- ZigBee 868 MHz, Z-Wave 868 MHz, LoRa 868 MHz
- Antenna gain 1.6 dBi
- Impedance: 50 ohm
- Efficiency: 43.97%
- VSWR 1.26
- Polarisation: Vertical
- Operating temperature -40 °C ~ 85 °C
- ABS casing material
- Colour, black
- Antenna length: Approx. 4.86 cm
System requirements
- Device with a free SMA socket
