Delock 12717 12717 Wi-Fi antenna 28 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

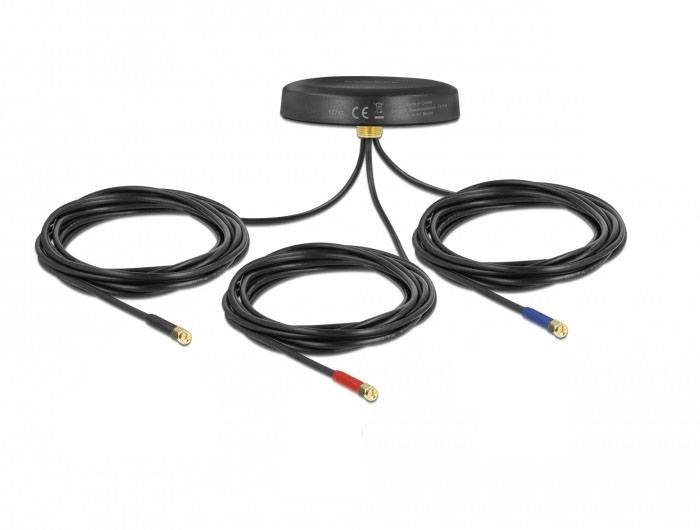

Delock multi-band LTE-MIMO UMTS GSM GNSS antenna 3 x SMA plug omni-directional roof mounting black outdoor
- Omni-directional antenna SMA Black
- 28 dBi
- 1.57542 GHz, 1.71 - 2.7, 0,698 - 0.96, 1,598 - 1,610
- 50 Ohm
- Linear Polarisation Female
Technical specifications
- 1.57542 GHz, 1.71 - 2.7, 0,698 - 0.96, 1,598 - 1,610 Hz
- Impedance: 50 ohm
- Cable type: RG-174
- Product type
Wi-Fi antenna
- Gain
28 dBi
- Type
Flat antenna
- Wi-Fi frequency band
2.4 GHz
- Used at
Outdoors
- Antenna socket
SMA plug
- Antenna socket
SMA plug
- Weight
1.2 kg
- No. of ports
3
- Mounting type
Screw fastening
- Polarisation
Linear
- Width
100 mm
- Height
50 mm
- Length
250 cm
- Cable design
Round
- Cable length
3 m
- Version
Cable
- Factory colour
Black
IP67
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-40 - 80 °C
- Power handling
5 W
Documents & Downloads
Datasheet
Datasheet 3382538 Delock 12717 12717 Wi-Fi antenna 28 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3382538 Delock 12717 12717 Wi-Fi antenna 28 dBi 2.4 GHz
Description
This multi-band antenna from Delock has three physically separate send and receive units. Two PIFA antennas, each for LTE and GSM / UMTS, are responsible for sending and receiving in these areas. The GNSS patch antenna receives the signals from the Global Navigation Satellite Systems GNSS.
The multi-band antenna is perfectly suitable through its outdoor properties for the rough daily routine in the fields of transportation, forestry and agriculture, construction as well as in the maritime area. It is waterproof, shock-resistant and can be used in an extended temperature range.
This text is machine translated.
The multi-band antenna is perfectly suitable through its outdoor properties for the rough daily routine in the fields of transportation, forestry and agriculture, construction as well as in the maritime area. It is waterproof, shock-resistant and can be used in an extended temperature range.
This text is machine translated.
Features
- Connection 3 x SMA plug
- LTE GSM UMTS:
- Frequency range:
- 0.698 - 0.960 GHz
- 1.710 - 2.700 GHz
- GSM / UMTS / ZigBee / Z-Wave / LoRa / NB-IoT / WLAN 2.4 GHz / Bluetooth
- Antenna gain 2 dBi
- Impedance: 50 ohm
- VSWR 2.5
- Polarisation: Linear
- Cable type: Coaxial
- Cable type: RG-174
- Cable diameter: Approx. 2.7 mm
- Cable attenuation: 1.5 dB @ 1.5 GHz per meter
- GNSS
- Frequency range:
- GNSS L1, 1.57542 GHz, 1.598 Hz, 1.610 GHz
- Antenna gain 3 dBi
- Impedance: 50 ohm
- VSWR 2.5
- Polarization: RHCP
- Cable type: Coaxial
- Cable type: RG-174
- Cable diameter: Approx. 2.7 mm
- Cable attenuation: 1.5 dB @ 1.5 GHz per meter
- LNA GNSS:
- Frequency range:
- GNSS L1, 1.57542 GHz
- Amplification 28 dBi
- VSWR: ≤2.0
- Impedance: 50 ohm
- Operating voltage 2.2 5.0 V
- Power consumption 5 - 15 mA
- Screw-on mounting
- Operating temperature -40 °C ~ 85 °C
- ABS casing material
- Colour, black
- Protection class IP67
- Cable color: Black
- Cable length incl. connections: Approx. 3 m.
- Dim. (Ø x H): Approx. 81.0 x 15.5 mm
- Mounting hole diameter 12 mm
System requirements
- Device with several free SMA connections
