Delock 18603 HDMI switch Ultra HD compatibility, LED display, + remote control, Steel casing
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
HDMI Switch 3 x HDMI in to 1 x HDMI out 8K 60 Hz
- HDMI video port type
- 7680 x 4320 pixels
- Black
- 1 pieces(s)
Technical specifications
- HD type 8K Ultra HD
- Product type
HDMI switch
- Supported monitors
1
- Interfaces (input)
HDMI™
Micro USB
- Interfaces (output)
HDMI™
- No. of inputs
3 x
- No. of outputs
1 x
- Switch function
Remote control
Key
Automatic
- Distributor/switch features
Ultra HD compatibility
LED display
+ remote control
Steel casing
- Factory colour
Black
- Width
56 mm
- Height
14 mm
- Depth
112 mm
- Weight
251 g
- Resolutions (max.)
UHD 8K @ 60 Hz
UHD 4K @ 120 Hz
- Supported audio file formats
Dolby TrueHD
DTS-HD
- Cable design
Round
- Cable length
75 cm
- Version
Cable
- Display resolution
7680 x 4320 Pixel
- Frame rate
144 Hz
- No. of HDMI ports
4 x
- Cable use
C13/C14 appliances
- HDR support
Yes
- Material
Metal
- UKCA
yes
- Remote control included
yes
- Quantity per pack
1 Stück(e)
- Consumer Electronics Control (CEC) support
yes
- DC-in jack
yes
- Bandwidth
48 Gbit/s
- Manual
yes
- Bandwidth
1200 MHz
- HDCP
yes
- HDMI in
3
- Number of HDMI outputs
1
- Power consumption (max)
5 W
Documents & Downloads
Datasheet
Datasheet 3382360 Delock 18603 HDMI switch Ultra HD compatibility, LED display, + remote control, Steel casing
User & Safety Instructions
User & Safety Instructions 3382360 Delock 18603 HDMI switch Ultra HD compatibility, LED display, + remote control, Steel casing
Description

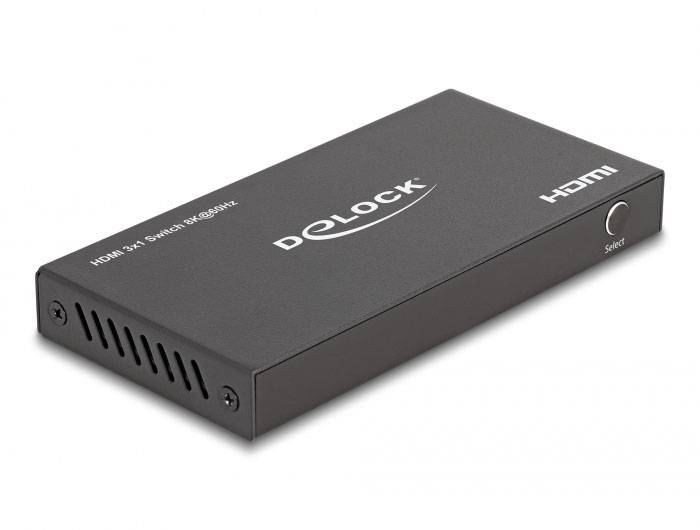

With this HDMI switch from Delock up to three HDMI devices can be operated at one HDMI monitor, TV or projector. You can switch between the HDMI devices using the button on the device or the remote control.
USB power supply

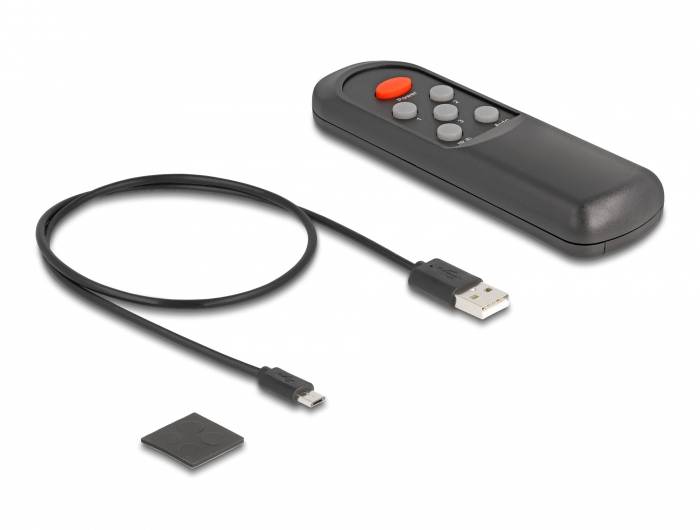

The device is powered via a USB port, a suitable USB cable is delivered. If no free USB-A port is available, an optional external power supply is necessary.
This text is machine translated.
USB power supply
The device is powered via a USB port, a suitable USB cable is delivered. If no free USB-A port is available, an optional external power supply is necessary.
This text is machine translated.
Features
- Connections:
- Input:
- 3 x HDMI-A socket
- 1 x USB type micro-B socket (5 V power supply)
- Output:
- 1 x HDMI-A socket

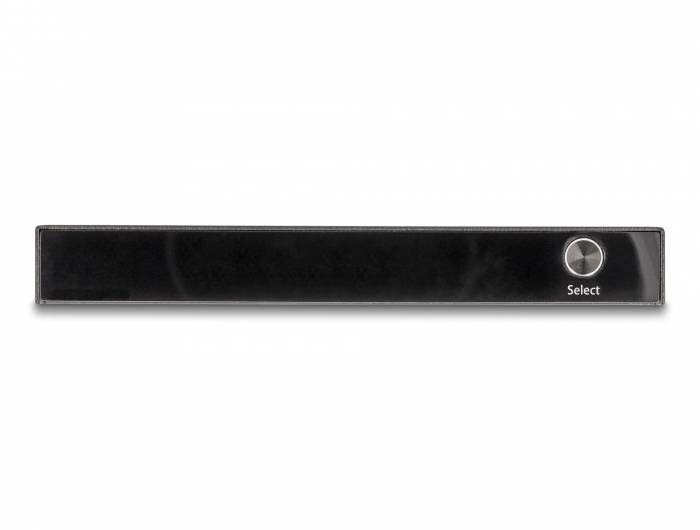

- HDMI port switching: Automatic, button or infrared remote control
- LED displays for active HDMI connection
- Ultra High Speed HDMI specification
- Supports HDCP 1.4 and 2.3
- Supports HDR
- Supports CEC
- Supports Game Mode VRR
- Supports Dolby® TrueHD and DTS-HD Master Audio™
- Resolution up to:
- 7680 x 4320 @ 60 Hz
- 3840 x 2160 @ 144 Hz
- (Depending on the system and the connected hardware)
- Video bandwidth up to 1200 MHz / 12 Gbps, max. 48 Gbps
- Power consumption: max. 5 W
- Heavy duty metal casing
- Colour, black
- Dim. (LxWxH): Approx. 112 x 56 x 14 mm
System requirements
- HDMI cable
Power source with a free USB type A socket
2 x AAA battery
