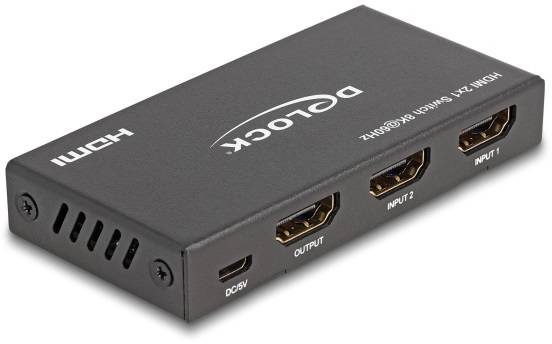

Delock 18607 HDMI switch Ultra HD compatibility, Steel casing, + LED indicator lights
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
HDMI Switch 2 x HDMI in to 1 x HDMI out 8K 60 Hz
- HDMI video port type
- 7680 x 4320 pixels
- Black
- 1 pieces(s)
Technical specifications
- HD type 8K Ultra HD
- Product type
HDMI switch
- Supported monitors
1
- Interfaces (input)
Micro USB B (USB 2.0)
HDMI™
HDMI® input
- Interfaces (output)
HDMI® output
HDMI™
- No. of inputs
2 x
- No. of outputs
1 x
- Switch function
Key
Automatic
Remote control
- Distributor/switch features
Ultra HD compatibility
Steel casing
+ LED indicator lights
- Factory colour
Black
- Width
44 mm
- Height
14 mm
- Depth
90 mm
- Weight
215 g
- Resolutions (max.)
UHD 8K @ 60 Hz
- Supported audio file formats
DTS-HD
Dolby TrueHD
- Cable design
Round
- Cable length
75 cm
- Version
Cable
- Display resolution
7680 x 4320 Pixel
- Frame rate
144 Hz
- No. of HDMI ports
3 x
- Cable use
C13/C14 appliances
- HDR support
Yes
- Material
Metal
- UKCA
yes
- Remote control included
yes
- Quantity per pack
1 Stück(e)
- Consumer Electronics Control (CEC) support
yes
- DC-in jack
yes
- Bandwidth
48 Gbit/s
- Manual
yes
- Bandwidth
1200 MHz
- HDCP
yes
- HDMI in
2
- Number of HDMI outputs
1
- Power consumption (max)
5 W
Documents & Downloads
Datasheet
Datasheet 3382362 Delock 18607 HDMI switch Ultra HD compatibility, Steel casing, + LED indicator lights
User & Safety Instructions
User & Safety Instructions 3382362 Delock 18607 HDMI switch Ultra HD compatibility, Steel casing, + LED indicator lights
Description
With this HDMI switch from Delock up to two HDMI devices can be operated at one HDMI monitor, TV or projector. You can switch between the HDMI devices using the button on the device or the remote control.
USB power supply
The device is powered via a USB port, a suitable USB cable is delivered. If no free USB-A port is available, an optional external power supply is necessary.
This text is machine translated.
USB power supply
The device is powered via a USB port, a suitable USB cable is delivered. If no free USB-A port is available, an optional external power supply is necessary.
This text is machine translated.
Features
- Connections:
- Input:
- 2 x HDMI-A socket
- 1 x USB type micro-B socket (5 V power supply)
- Output:
- 1 x HDMI-A socket
- HDMI port switching: Automatic, button or infrared remote control
- LED displays for active HDMI connection
- Ultra High Speed HDMI specification
- Supports HDCP 1.4 and 2.3
- Supports HDR
- Supports CEC
- Supports Game Mode VRR
- Supports Dolby® TrueHD and DTS-HD Master Audio™
- Resolution up to:
- 7680 x 4320 @ 60 Hz
- 3840 x 2160 @ 144 Hz
- (Depending on the system and the connected hardware)
- Video bandwidth up to 1200 MHz / 12 Gbps, max. 48 Gbps
- Power consumption: max. 5 W
- Heavy duty metal casing
- Colour, black
- Dim. (LxWxH): Approx. 90 x 44 x 14 mm
System requirements
- HDMI cable
Power source with a free USB type A socket
2 x AAA battery
