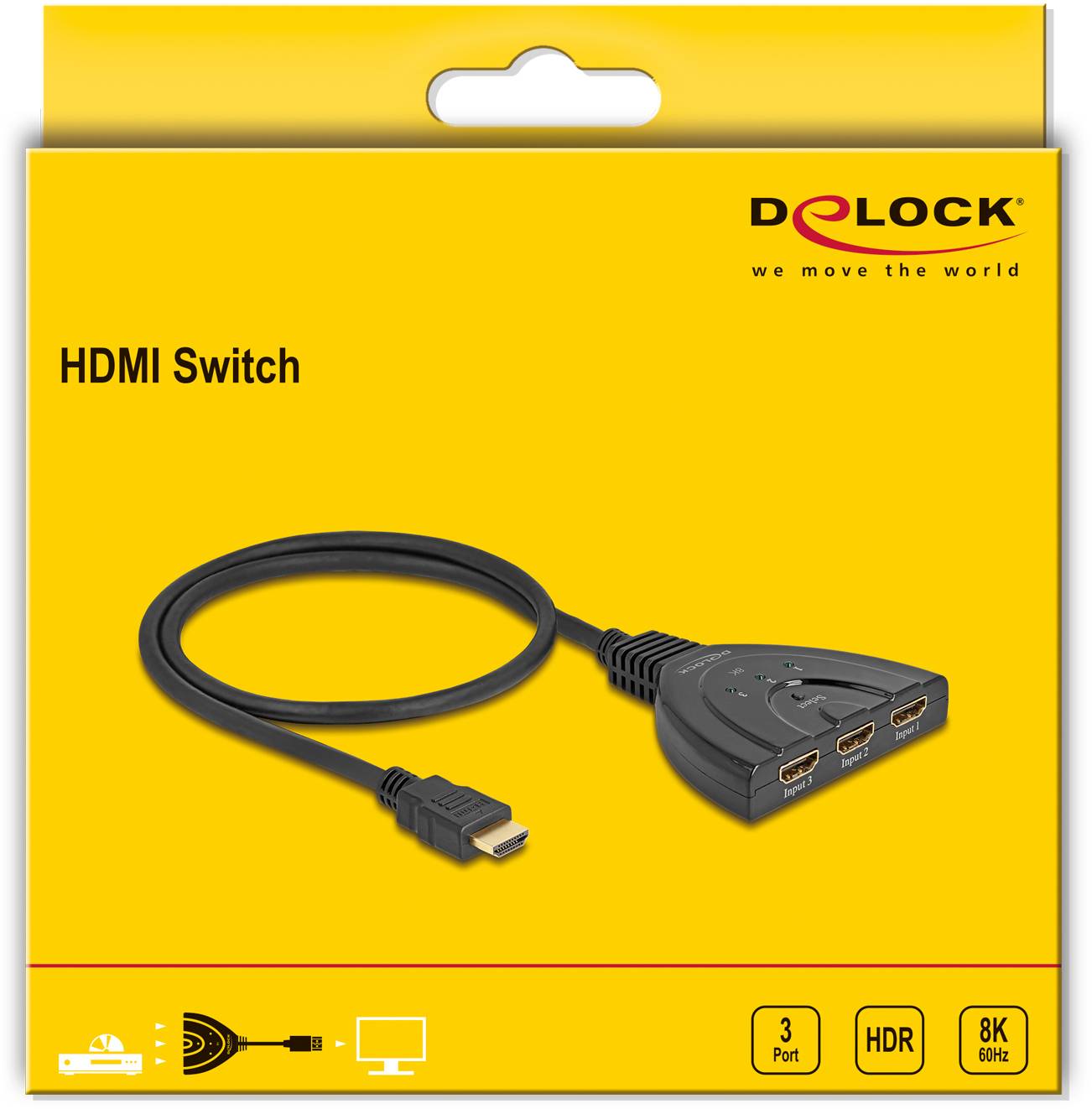

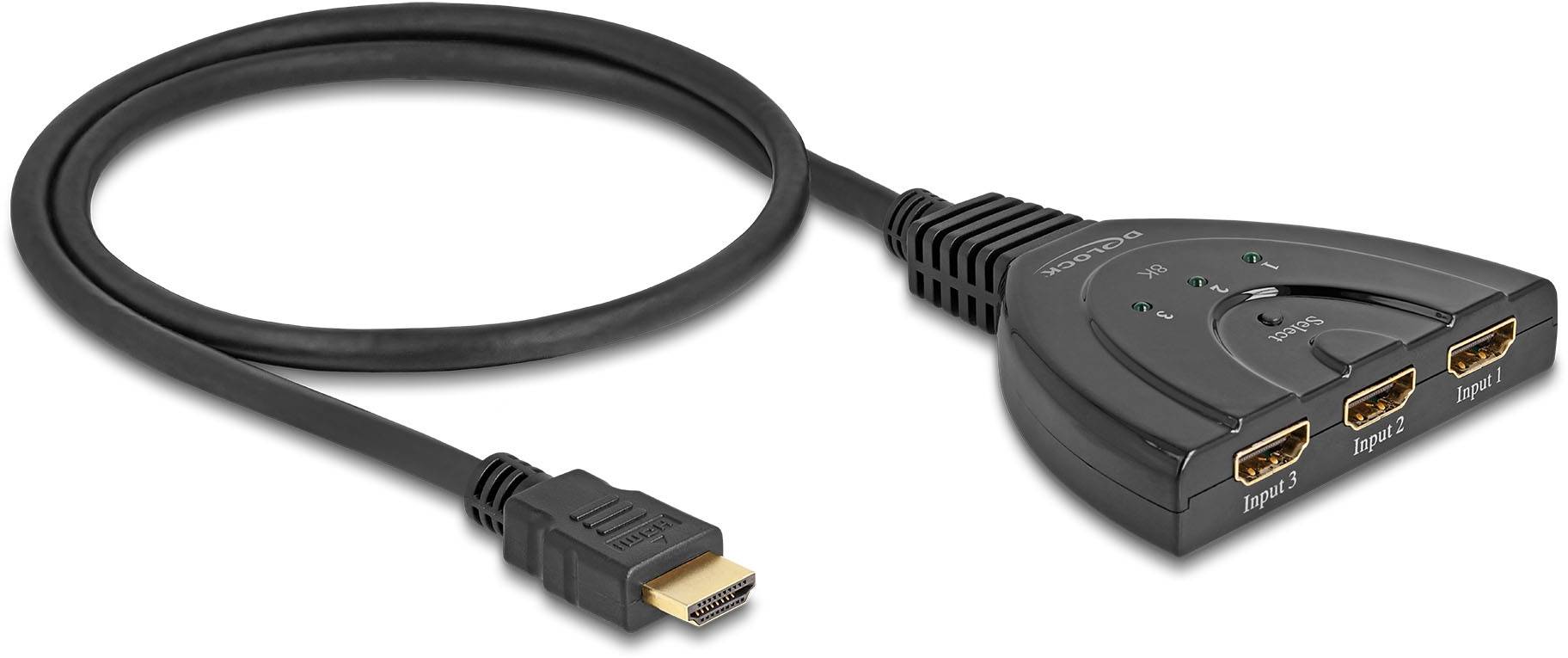

Delock 18649 HDMI switch Ultra HD compatibility
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
HDMI switch 3 x HDMI in to 1 x HDMI out 8K 60 Hz with integrated cable 60 cm
- HDMI video port type
- 7680 x 4320 pixels
- Black
- 1 pieces(s)
Technical specifications
- HD type 8K Ultra HD
- Product type
HDMI switch
- Supported monitors
1
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- No. of inputs
3 x
- No. of outputs
1 x
- Switch function
Key
- Distributor/switch features
Ultra HD compatibility
- Factory colour
Black
- Width
62 mm
- Height
16 mm
- Depth
81 mm
- Weight
100 g
- Resolutions (max.)
UHD 8K @ 60 Hz
- Supported audio file formats
Dolby TrueHD
- Cable design
Round
- Cable length
60 cm
- Version
Cable
- Display resolution
7680 x 4320 Pixel
- Frame rate
144 Hz
- No. of HDMI ports
3 x
- Cable use
C13/C14 appliances
- HDR support
Yes
- Material
Plastic
- UKCA
yes
- Quantity per pack
1 Stück(e)
- Bandwidth
48 Gbit/s
- Manual
yes
- Bandwidth
1200 MHz
- HDCP
yes
- Plug and Play
yes
- HDMI in
3
- Number of HDMI outputs
1
- Power consumption (max)
5 W
Documents & Downloads
Datasheet
Datasheet 3383106 Delock 18649 HDMI switch Ultra HD compatibility
User & Safety Instructions
User & Safety Instructions 3383106 Delock 18649 HDMI switch Ultra HD compatibility
Description
With this HDMI switch from Delock up to three HDMI devices can be operated at one HDMI monitor, TV or projector. You can switch between the HDMI devices using the button on the device.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- Input 3 x HDMI type A socket
- Output 1 x HDMI-A connector
- Button mode
- LED displays for active HDMI connection
- Ultra High Speed HDMI specification
- Supports HDCP 1.4 and 2.3
- Supports HDR
- Supports Game Mode VRR
- Supports Dolby® TrueHD and DTS-HD Master Audio™
- Resolution up to:
- 7680 x 4320 @ 60 Hz
- 3840 x 2160 @ 144 Hz
- (Depending on the system and the connected hardware)
- Video bandwidth up to 1200 MHz / 12 Gbps, max. 48 Gbps
- Do not Require external current supply
- Plastic housing
- Colour, black
- Dim. (LxWxH): Approx. 81 x 62 x 16 mm
- Cable length without connections: Approx. 60 cm
