1/4

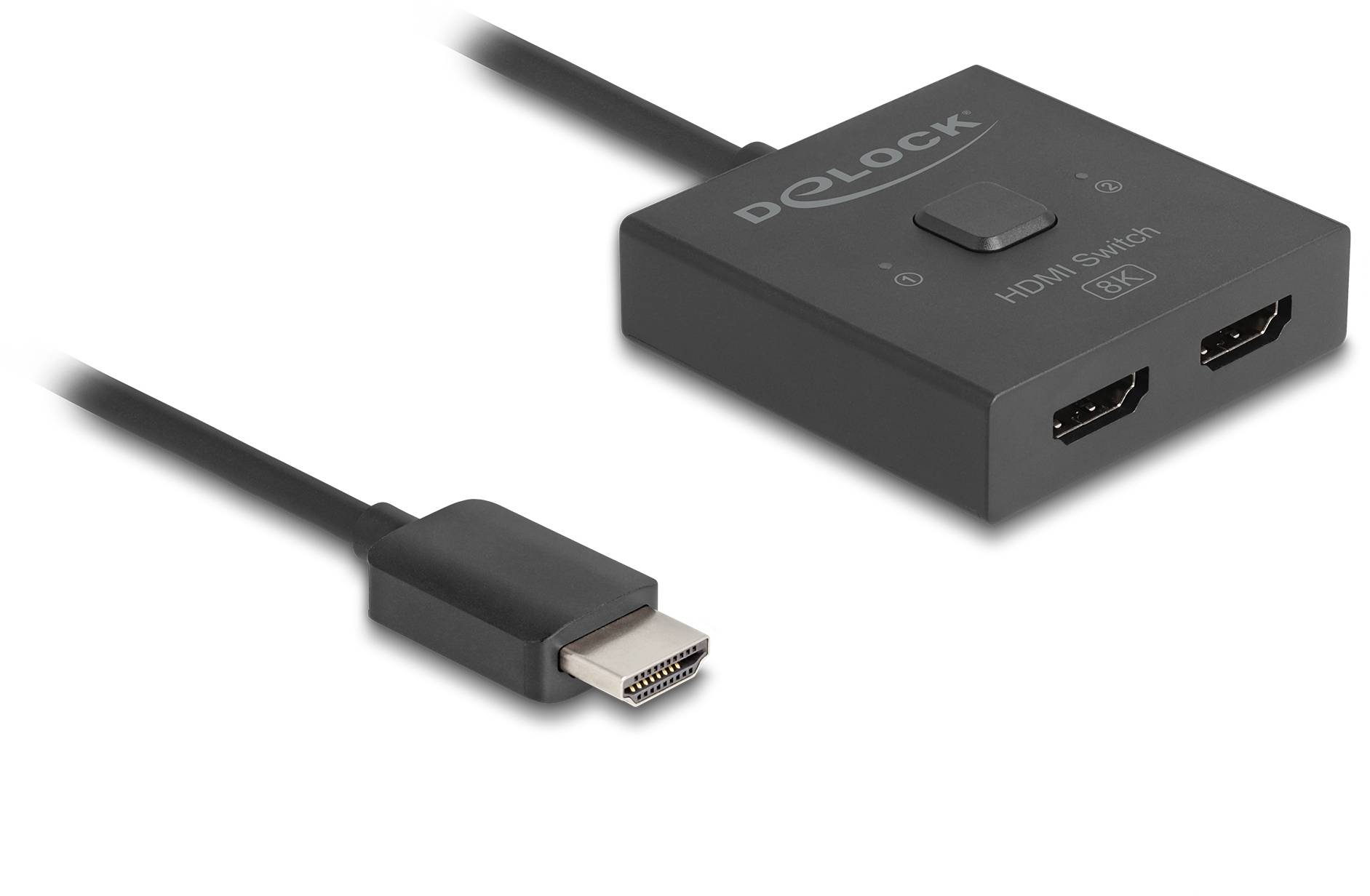

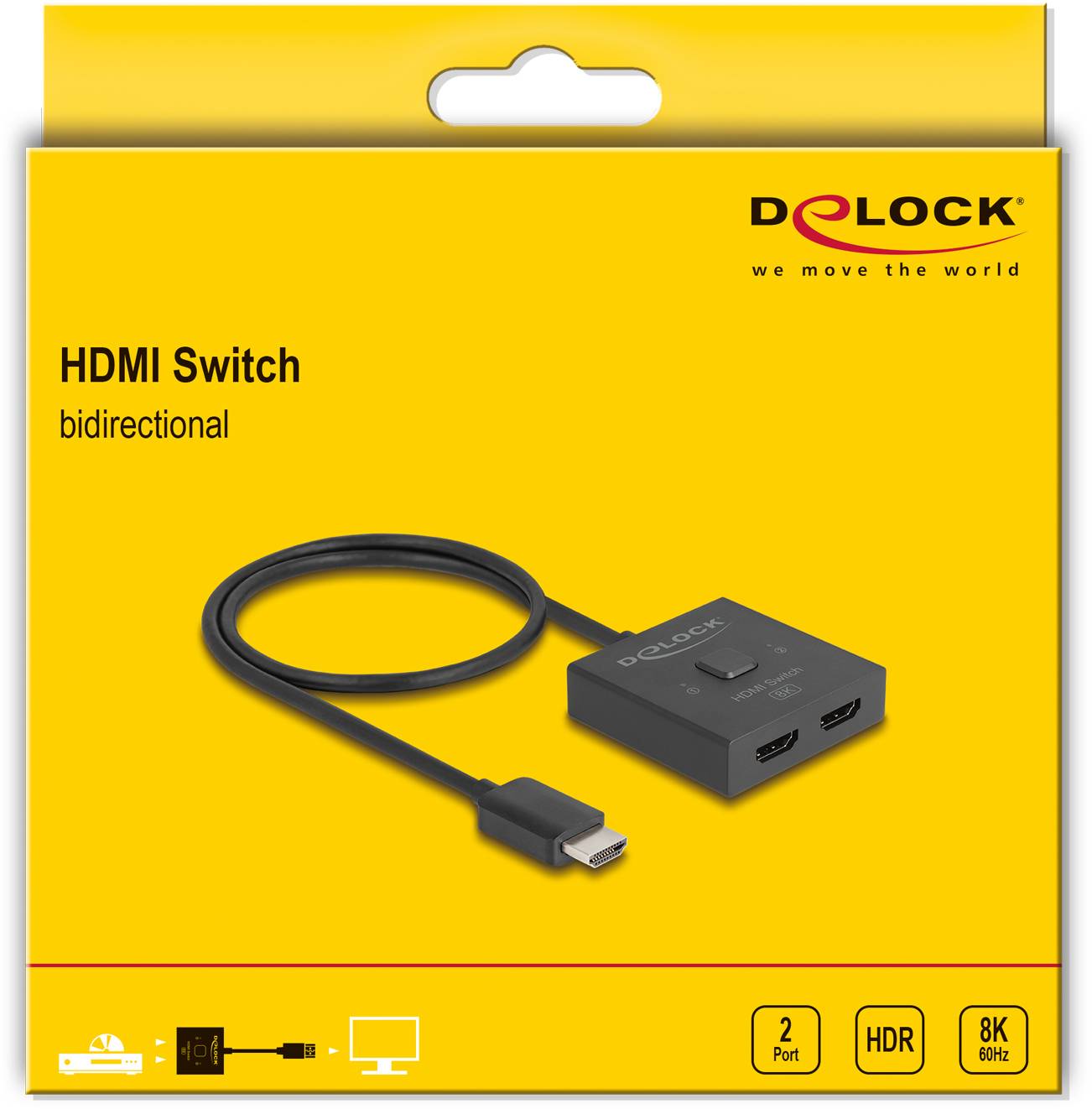

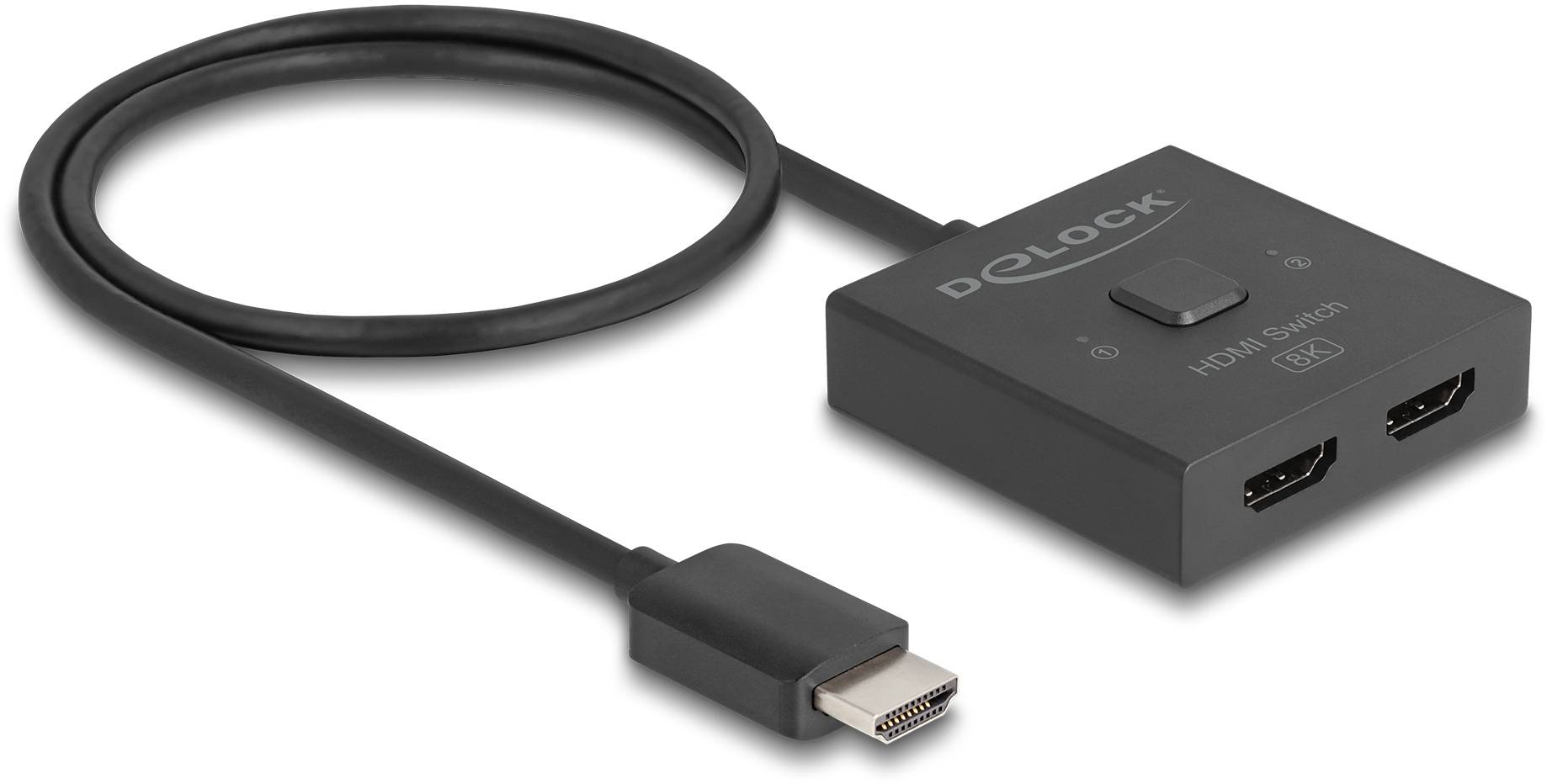

Delock 18901 HDMI switch
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
HDMI switch 2 to 1 bi-directional 8K
- HDMI video port type
- 7680 x 4320 pixels
- Black
- 1 pieces(s)
Technical specifications
- HD type 8K Ultra HD
- Product type
HDMI switch
- Supported monitors
2
- Factory colour
Black
- Width
55 mm
- Height
15 mm
- Depth
55 mm
- Weight
113 g
- Cable design
Round
- Cable length
50 cm
- Version
Cable
- Display resolution
7680 x 4320 Pixel
- Frame rate
144 Hz
- No. of HDMI ports
3 x
- Cable use
C13/C14 appliances
- HDR support
Yes
- Material
Plastic
- UKCA
yes
- Quantity per pack
1 Stück(e)
- Manual
yes
- Plug and Play
yes
- HDMI in
2
- Number of HDMI outputs
1
Documents & Downloads
Datasheet
Datasheet 3383108 Delock 18901 HDMI switch
User & Safety Instructions
User & Safety Instructions 3383108 Delock 18901 HDMI switch
Description
This HDMI converter from Delock is a manual bi-directional switch for connecting different devices with HDMI connection, which offers two different possible applications. It can connect up to 2 devices to one monitor, TV or projector. The device which is displayed on the screen can be selected with the push of a button. An HDMI device can be connected to up to 2 screens. The screen on which the signal is displayed can be selected by pressing a button. It is not possible to output simultaneously on multiple monitors.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- Function 1
- Input 2 x HDMI type A socket
- Output 1 x HDMI-A connector
- Function 2
- Input 1 x HDMI type A connector
- Output 2 x HDMI type A socket
- 1 x Shift key with LED indicators for 1 or 2
- Ultra High Speed HDMI specification
- Supports HDR
- Resolution up to:
- 7680 x 4320 @ 60 Hz
- 3840 x 2160 @ 144 Hz
- (Depending on the system and the connected hardware)
- Do not Require external current supply
- Plastic housing
- Colour, black
- Dim. (LxWxH): Approx. 55 x 55 x 15 mm
- Cable length without connections: Approx. 50 cm
System requirements
- A free HDMI socket
HDMI cable
