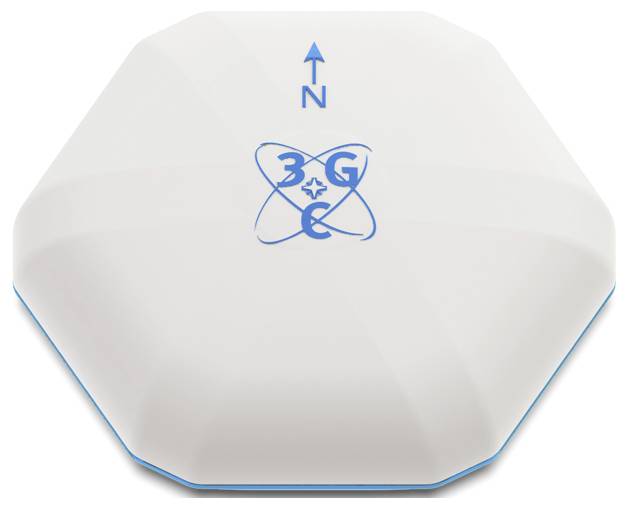

Delock 60548 GNSS antenna
EAN:
Part number:
Item no:
Highlights & Details
Navilock 3 G+C TNC socket GLONASS+GPS+Compass/Beidou multi GNSS antenna
- Reading range -
- Accuracy ± IP69K
Technical specifications
- Product type
GNSS antenna
- Type
Additional antenna for GNSS receiver – TNC socket
- Power supply (details)
Power supply 20 V; Power consumption 50 mA
- Weight
380 g
IP69K
- Reading (details)
GPS; GLONASS; Galileo; Compass
- Dim
(W x H) 17.2 cm x 7.2 cm
- Width
17.2 cm
- Height
7.2 cm
Manufacturer's standards (no certificate)
- Type
60548
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3383273 Delock 60548 GNSS antenna
Description
Description
Use this highly precise antenna on your GNSS devices to receive GPS, GLONASS, Galileo and Compass/Beidou signals simultaneously.
Technical data
External active additional antenna for GNSS receiver

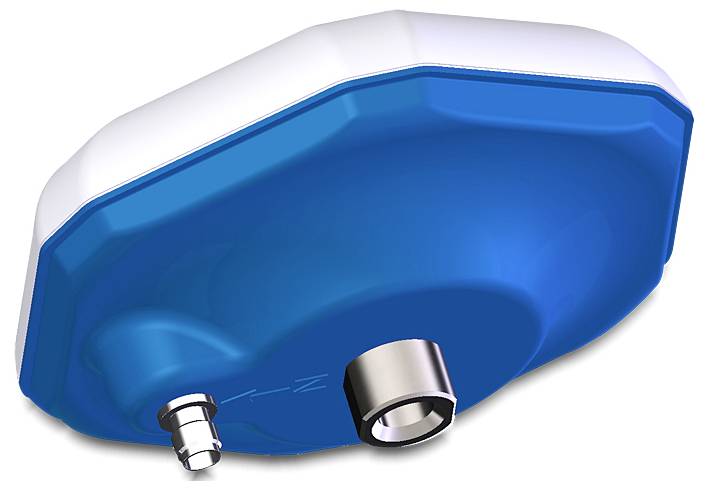

TNC socket
Galileo: E1, E5a, E5b, E5a+b (AltBOC), E6
GPS L1, L2, L2C, L5
B1, B2, B3 COMPASS
GLONASS: G1, G2, G3, G5
SBAS: WAAS, EGNOS, GAGAN, MSAS, SDCM
VSWR >2:1
Polarization: RHCP
Impedance: 50 ohm
LNA gain 29 dB +- 1@L2
27 dB +- 1@L1
Voltage supply
3.3 ~ 20 V
Power consumption 50 mA
Operating temperature: -45°C ~ 75°C
Dimensions (H x W) 72 x 172 mm
Mounting 5/8" - 11 UNC-2B
23 mm combination wrench
Weight 380 g
Protection class: IP69K
MIL-STD-810
Package contents
GNSS antenna
Packaging
White box
