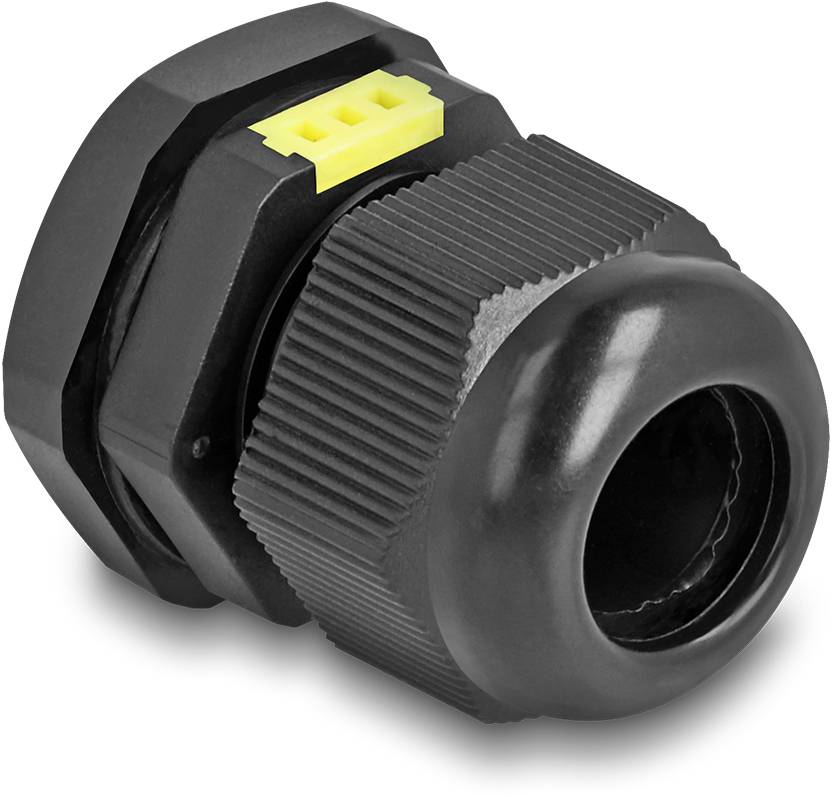

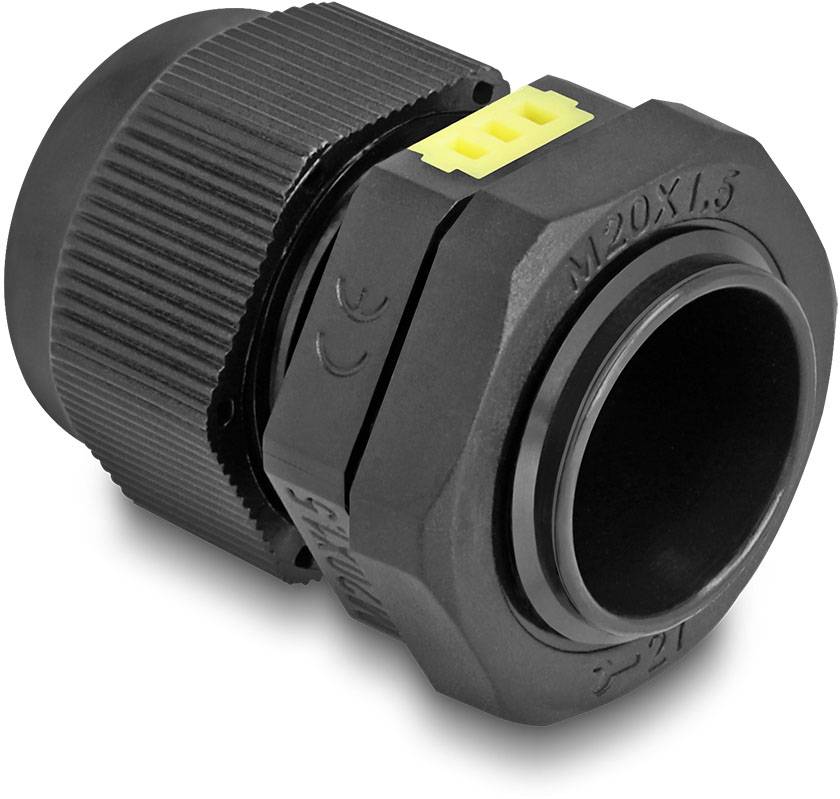

Delock 60616 Cable gland vented M20 x 1 M20 x 1 Plastic Black 2 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M20 x 1
Material
Plastic
Clamp Ø
6 mm
Terminal Ø (max.)
12 mm
Datasheet (PDF)
Technical specifications
- Form factor: Straight
- Product type
Cable gland
- Features
vented
- Factory colour
Black
- External thread
M20 x 1
- Internal thread
M20 x 1
- Material
Plastic
- Clamp Ø
6 mm
- Terminal Ø (max.)
12 mm
- Thread length
10 mm
- Min. temperature
-40 °C
- Max. temperature
100 °C
IP68
- Spanner size
27 mm
- Content
2 pc(s)
- Manufacturer part #
60616
- Type
60616
- Operating temperature (T-T)
-40 - 100 °C
- Thread length
1 cm
- Quantity per pack
2 Stück(e)
- Cable diameter (min)
6 mm
- Cable diameter (max)
1.2 cm
- Spanner width
2.7 cm
Documents & Downloads
Datasheet
Datasheet 3383316 Delock 60616 Cable gland vented M20 x 1 M20 x 1 Plastic Black 2 pc(s)
User & Safety Instructions
User & Safety Instructions 3383316 Delock 60616 Cable gland vented M20 x 1 M20 x 1 Plastic Black 2 pc(s)
Description
This cable screwing by Delock enables a watertight seal to the housing for conducting cables and electrical lines.
With ventilation
The integrated holes ensure permanent pressure and air balance and prevent the formation of condensation.
IP68, dust and waterproof
The cable gland also offers increased protection from dirt and moisture.
Wide range of uses
The robust design is ideally suited in the area of automation, in the robotics industry and in machine plants.
This text is machine translated.
With ventilation
The integrated holes ensure permanent pressure and air balance and prevent the formation of condensation.
IP68, dust and waterproof
The cable gland also offers increased protection from dirt and moisture.
Wide range of uses
The robust design is ideally suited in the area of automation, in the robotics industry and in machine plants.
This text is machine translated.
Scope of delivery

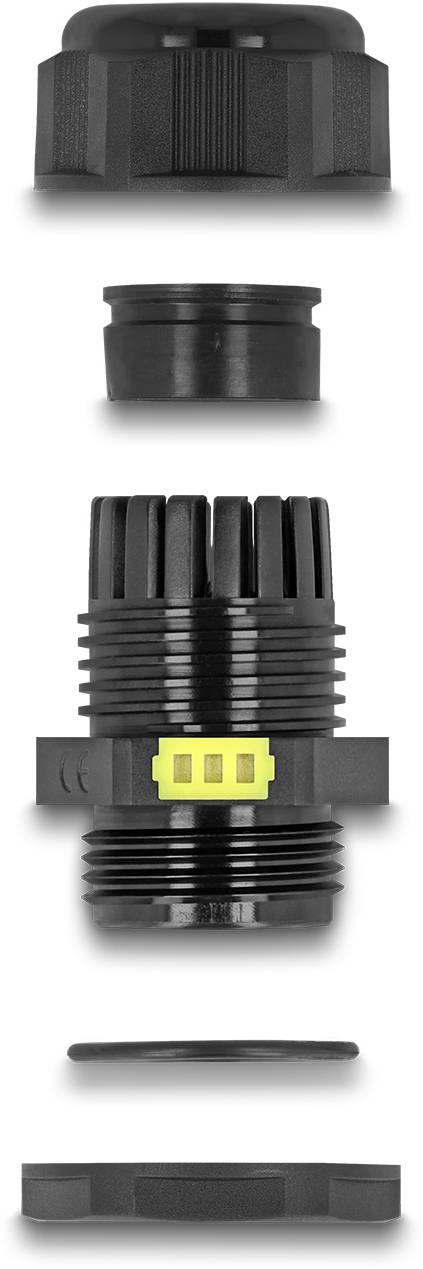

- 2 x cable gland
