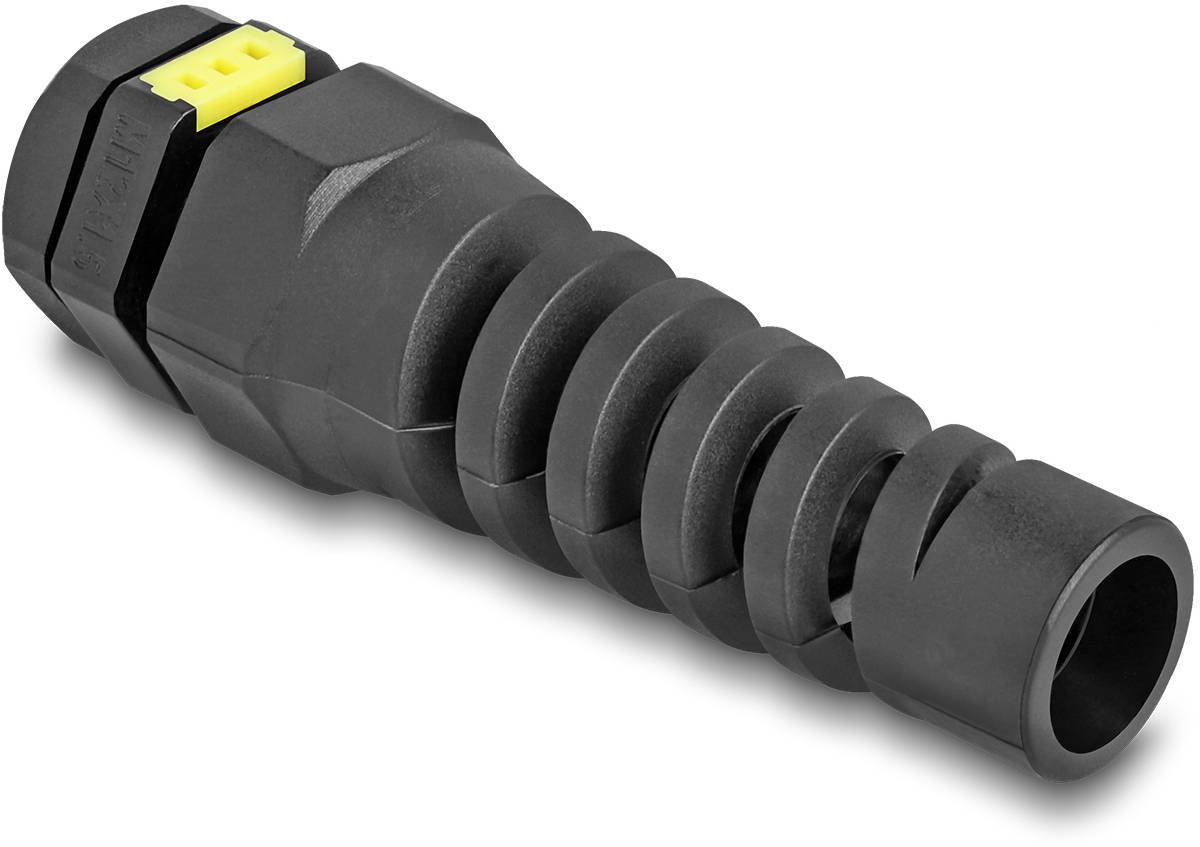

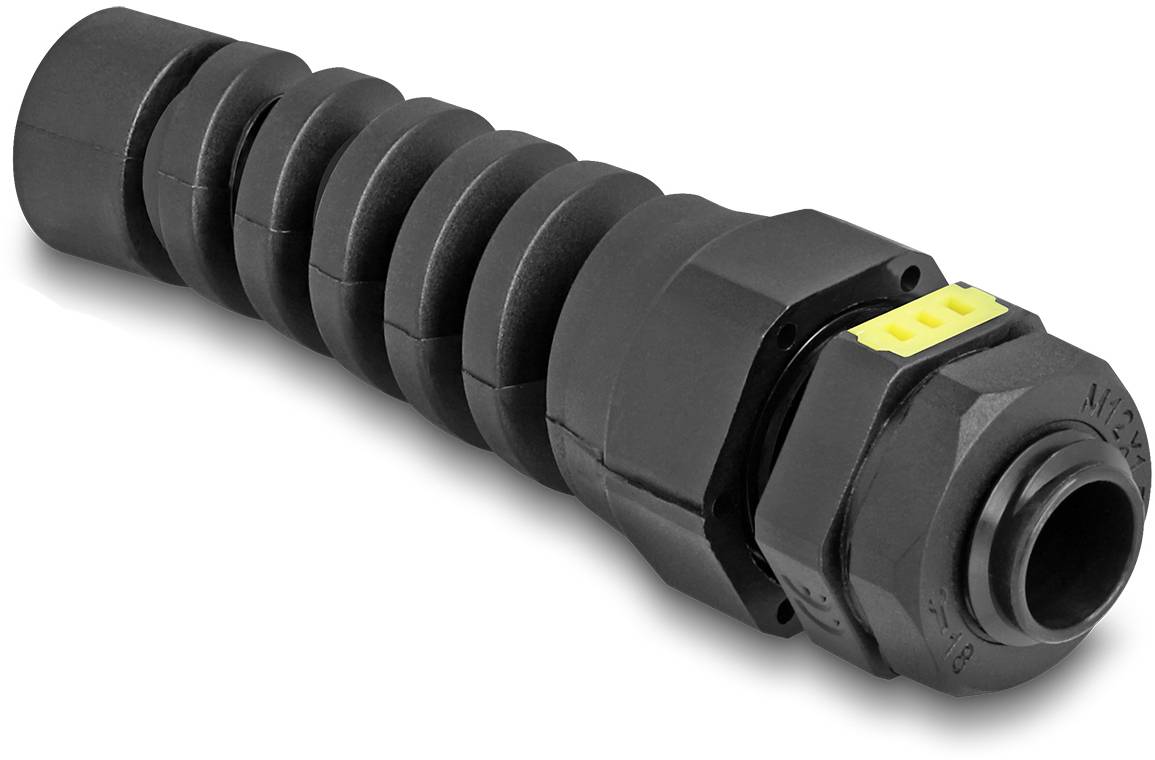

Delock 60624 with strain relief M12 Plastic Black 1 pc(s)
EAN:
Part number:
Item no:
External thread
M12
Material
Plastic
Clamp Ø
3 mm
Terminal Ø (max.)
6.5 mm
Features
with strain relief
Datasheet (PDF)
Technical specifications
- Form factor: Straight
- Features
with strain relief
- Factory colour
Black
- External thread
M12
- Material
Plastic
- Clamp Ø
3 mm
- Terminal Ø (max.)
6.5 mm
- Thread length
9 mm
- Min. temperature
-40 °C
- Max. temperature
100 °C
IP68
- Spanner size
18 mm
- Weight
0
- Content
1 pc(s)
- Manufacturer part #
60624
- Type
60624
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-40 - 100 °C
- Thread length
9 mm
- Quantity per pack
2 Stück(e)
- Cable diameter (min)
3 mm
- Cable diameter (max)
6.5 mm
- Spanner width
1.8 cm
Documents & Downloads
Datasheet
Datasheet 3383319 Delock 60624 with strain relief M12 Plastic Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3383319 Delock 60624 with strain relief M12 Plastic Black 1 pc(s)
Description
This cable screwing by Delock enables a watertight seal to the housing for conducting cables and electrical lines.
With ventilation
The integrated holes ensure permanent pressure and air balance and prevent the formation of condensation.
Additional protection through strain relief
Thanks to the bend relief spiral the flexible cables are secured and protected against excessive bend, e.g. with moving machine parts.
IP68, dust and waterproof
The cable gland also offers increased protection from dirt and moisture.
Wide range of uses
Ideal's robust construction is suitable for the automation, robotics and machinery sectors.
This text is machine translated.
With ventilation
The integrated holes ensure permanent pressure and air balance and prevent the formation of condensation.
Additional protection through strain relief
Thanks to the bend relief spiral the flexible cables are secured and protected against excessive bend, e.g. with moving machine parts.
IP68, dust and waterproof
The cable gland also offers increased protection from dirt and moisture.
Wide range of uses
Ideal's robust construction is suitable for the automation, robotics and machinery sectors.
This text is machine translated.
Features
- M12 thread
- Thread length: 9 mm
- Wrench width: 18 mm
- With ventilation and strain relief
- Protection class: IP68
- Cable diameter:
- min. 3 mm
- max. 6.5 mm
- Operating temperature: -40 °C ~ 100 °C
- Material: plastic
- Colour: Black RAL9005
