Delock 61847 DisplayPort / DVI Adapter [1x DisplayPort plug - 1x DVI socket 25-pin] Black incl. ferrite core 0 cm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Monitor Adapter
- Connection type
DisplayPort
DVI
- No. of A connectors
1 x
- Type A
DisplayPort plug
- No. of B connections
1 x
- Type B
DVI socket 25-pin
- Cable length
0 cm
- Factory colour
Black
- Video resolution
1920 x 1200 Pixel
- Cable features
incl. ferrite core
- Cable use
Monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- DisplayPort version
DisplayPort 1.1
- Cable design
Round
- Connections
DisplayPort plug
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3384108 Delock 61847 DisplayPort / DVI Adapter [1x DisplayPort plug - 1x DVI socket 25-pin] Black incl. ferrite core 0 cm
Description
Description
With this adapter of Delock a DVI monitor can be connected to a system via a free DisplayPort interface.
Technical data

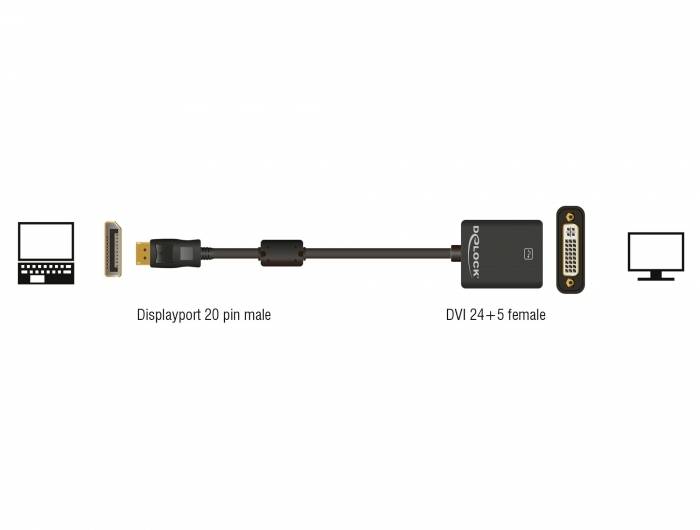

Connections:
1 x DisplayPort 20-pin plug >
1 x DVI 24+5 socket with nuts
NXP PTN3361 chipset
DVI-D (Single Link), VGA not connected
DisplayPort 1.1 specification
Passive converter (level shifter), only suitable for graphics cards with DP++ output
Resolution up to 1920 x 1200 @ 60 Hz (depending on the system and the connected one
Hardware)
Automatic standby detection, standby automatically switches to sleep mode
1 x ferrite core

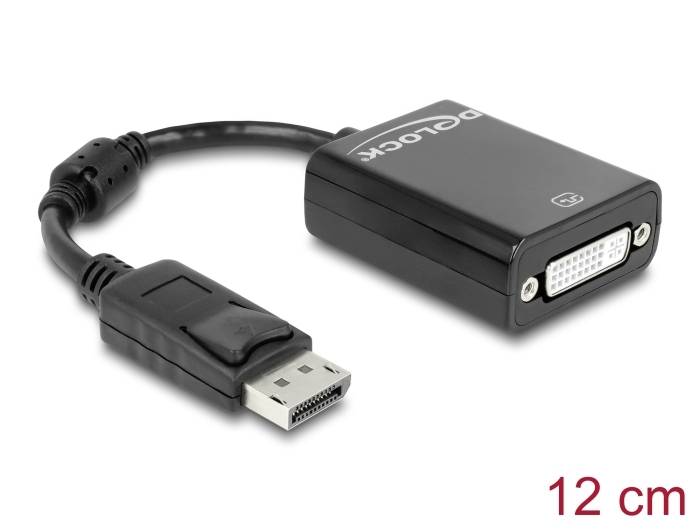

Cable length without connections: Approx. 12 cm
Colour, black
OS independent, no driver installation required
System requirements
A free DisplayPort DP++ socket
Package contents
Adapter DisplayPort to DVI
Packaging
Retail box
This text is machine translated.
