Delock 64152 USB hub 2 ports USB type A, SD, microSD USB 3.2 1st Gen 5 GBit/s Black 64152
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
USB hub
- Cable specs
USB 3.2 1st Gen
- Transfer rate (max.)
5 GBit/s
- Port
2 ports
- Interfaces (output)
USB type A
SD
microSD
- No. of outputs
2 x
- Cable length
150 cm
- Used at
External
- Factory colour
Black
- Weight
0
- Cable design
Round
- Version
Cable
- Type A
USB
- Type B
USB
- Cable use
C13/C14 appliances
- Connection type
USB
- UKCA
yes
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3383186 Delock 64152 USB hub 2 ports USB type A, SD, microSD USB 3.2 1st Gen 5 GBit/s Black 64152
User & Safety Instructions
User & Safety Instructions 3383186 Delock 64152 USB hub 2 ports USB type A, SD, microSD USB 3.2 1st Gen 5 GBit/s Black 64152
Description

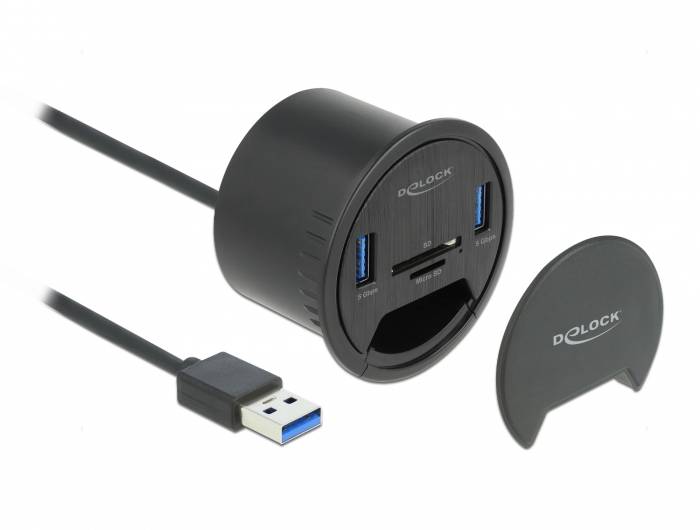

This hub of Delock can be inserted into an existing recess of the desk with a diameter of 60 mm and can be connected via the USB type A connection. It extends the computer by two USB Type-A ports and an SD as well as Micro SD Slot.
Cover cap and cable grommet
The hub has a cover cap, which protects the connectors from contamination. In addition, a cable feedthrough is also available, allowing existing cables for example, to move the mouse, keyboard and monitor further through the cut-out.
This text is machine translated.
Cover cap and cable grommet
The hub has a cover cap, which protects the connectors from contamination. In addition, a cable feedthrough is also available, allowing existing cables for example, to move the mouse, keyboard and monitor further through the cut-out.
This text is machine translated.
Features

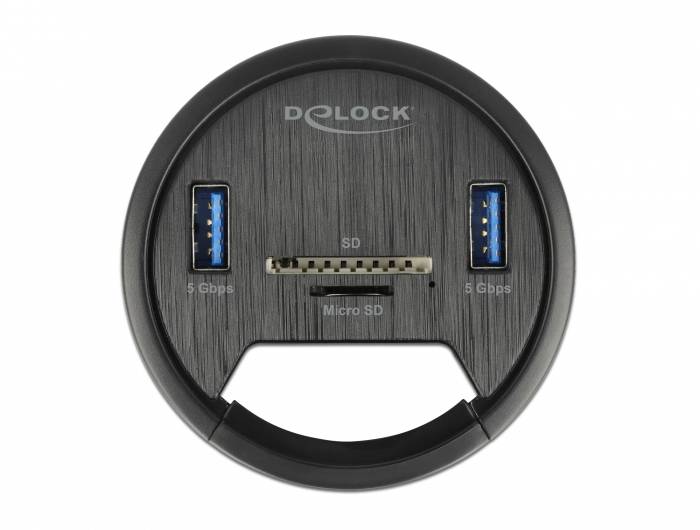

- Connections:
- Top:
- 2 x SuperSpeed USB (USB 3.2 1st Gen 1) Type A socket
- 1 x SD slot
- 1 x Micro SD Slot
- Bottom:
- 1 x SuperSpeed USB (USB 3.2 1st Gen 1) Type A connector
- Chipset: VIA VL817, Alcor Micro AU6366
- Data transfer rates up to:
- SuperSpeed USB 5 Gbps,
- Hi-speed 480 Mbps,
- Full speed 12 Mbps,
- Low speed 1.5 Mbps
- 1 x LED display
- Power supply: Bus-powered
- Installation diameter 60 mm
- Mounting depth: 43 mm
- Cable length: approx. 150 cm
- Plug & Play
System requirements
- Chrome OS
Linux Kernel 5.8 or later
Mac OS X 11.2.3 or higher
Windows 8.1/8.1-64/10/10-64
PC or notebook with a free USB type A port
60 mm recess in the desk
