Delock 64226 USB hub 4 ports USB type A, DC jack 3.5 mm USB 2.0 480 MBit/s Black 64226
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
4 Port USB 2.0 Isolator Hub with 5 kV insulation for data lines
- Host interface USB 2.0
- Output interface USB 2.0
- Connection 1 USB type-B connection 2: USB type-A
- Female/Female
- Black
Technical specifications
- Connection 1 USB type B
- Connection 2 USB type A
- Product type
USB hub
- Cable specs
USB 2.0
- Transfer rate (max.)
480 MBit/s
- Port
4 ports
- Interfaces (output)
USB type A
DC jack 3.5 mm
- No. of outputs
4 x
1 x
- Cable length
0 cm
- Power supply (LOV)
mains-powered
- Factory colour
Black
- Width
73 mm
- Height
31 mm
- Depth
90 mm
- Weight
0.519
- Cable design
Round
- Version
Cable
- Type A
USB 2.0
- Type B
USB
- Keyboard layout
German, QWERTZ
- Cable use
C13/C14 appliances
- Connection type
USB 2.0
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Manual
yes
- Operating voltage
5 V
- Storage temperature (T-T)
0 - 60 °C
- Isolation
5 kV
Documents & Downloads
Datasheet
Datasheet 3383455 Delock 64226 USB hub 4 ports USB type A, DC jack 3.5 mm USB 2.0 480 MBit/s Black 64226
User & Safety Instructions
User & Safety Instructions 3383455 Delock 64226 USB hub 4 ports USB type A, DC jack 3.5 mm USB 2.0 480 MBit/s Black 64226
Description

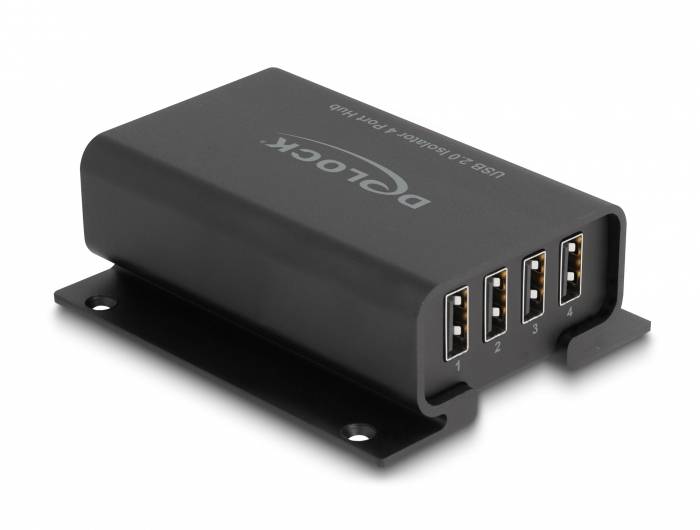

The USB hub isolator from Delock extends the host by four USB Type-A ports and disconnects the electrical connection of the data lines between the host PC and USB devices. The galvanic separation prevents interference noise in the audio field and inaccurate measurement results in the laboratory technology. The compact device supports USB 2.0 specification with low, full and high speed. A DC to DC converter in the USB isolator allows the separation between host and device of the USB power lines. The sturdy metal housing has four holes for attachment to machines for example, and is therefore suitable for industrial applications.
Secure stand
The rubber pads at the bottom prevent the hub from slipping when, for example, a USB stick or USB cable is inserted.
This text is machine translated.
Secure stand
The rubber pads at the bottom prevent the hub from slipping when, for example, a USB stick or USB cable is inserted.
This text is machine translated.
Features

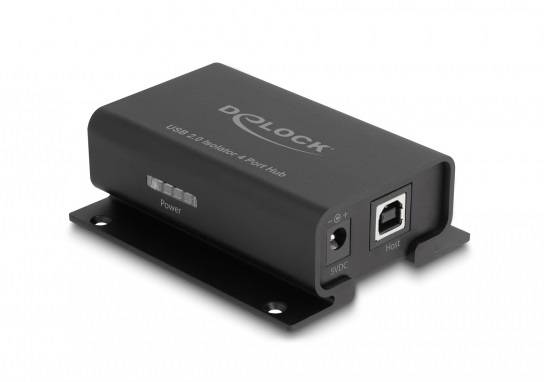

- Connections:
- 1 x USB 2.0 type B socket
- 4 x USB 2.0 type A socket
- 1 x DC power jack
- Data transfer rate of up to 480 Mbps
- Bootable
- LED display for current
- 5 kV optical insulation for data
- 3 kV Insulation for current
- Power supply: Bus-powered or self-powered, bus-powered up to 300 mA
- Operating temperature: 0 °C ~ 40 °C
- Storage temperature 0 °C ~ 60 °C.
- Dim. (LxWxH): Approx. 90 x 73 x 31 mm
- Heavy duty metal casing
- Colour, black
System requirements
- Android 11.0 or higher
Chrome OS
Linux Kernel 5.15 or later
Mac OS X 12.4 or higher
Windows 8.1/8.1-64/10/10-64/11
Windows Server 2019
PC or Notebook with a free USB port.
