Delock 65129 Mini DisplayPort / DVI Adapter [1x Mini DisplayPort plug - 1x DVI socket 29-pin] White 0 cm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Monitor Adapter
- Connection type
Mini DisplayPort
DVI
- No. of A connectors
1 x
- Type A
Mini DisplayPort plug
- No. of B connections
1 x
- Type B
DVI socket 29-pin
- Cable length
0 cm
- Factory colour
White
- Video resolution
1920 x 1200 Pixel
- Cable use
Monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- Cable design
Round
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3378501 Delock 65129 Mini DisplayPort / DVI Adapter [1x Mini DisplayPort plug - 1x DVI socket 29-pin] White 0 cm
Description
Description

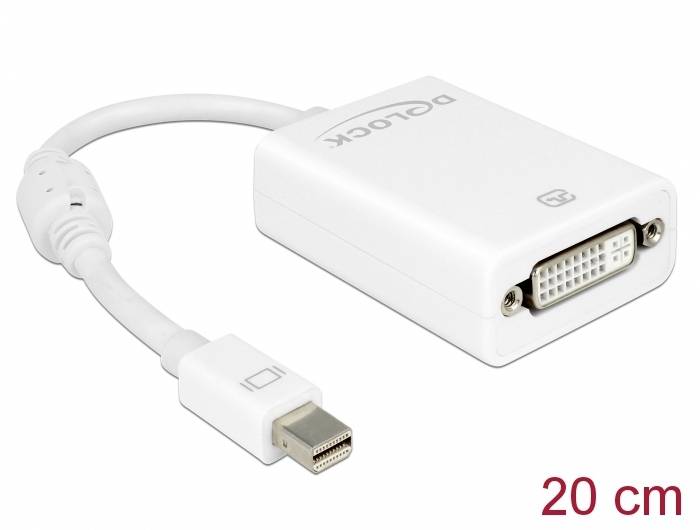

With this adapter of Delock a DVI monitor can be connected to a system via a free mini DisplayPort interface.
Technical data
Connections:
1 x mini DisplayPort 20-pin plug >
1 x DVI 24+5 socket with nuts
NXP PTN3361 chipset
DVI-D (Single Link), VGA not connected
DisplayPort 1.1 specification
Passive converter (level shifter), only suitable for graphics cards with DP++ output
Resolution up to 1920 x 1200 @ 60 Hz
(Depending on the system and the connected hardware)
Automatic standby detection, standby automatically switches to sleep mode
about
1 x ferrite core
Cable length without connections: Approx. 12 cm
Colour: white
OS independent, no driver installation required
System requirements
A free mini DisplayPort DP++ socket
Package contents
Adapter mini DisplayPort to DVI
Packaging
Retail box
This text is machine translated.
