Delock 65685 DisplayPort / HDMI Adapter [1x DisplayPort plug - 1x HDMI socket] Black gold plated connectors, Shielded
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Monitor Adapter
- Connection type
DisplayPort
HDMI
- No. of A connectors
1 x
- Type A
DisplayPort plug
- No. of B connections
1 x
- Type B
HDMI socket
- Factory colour
Black
- Video resolution
3840 x 2160 Pixel
- Cable features
gold plated connectors
Shielded
- Cable use
Monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- DisplayPort version
DisplayPort 1.2
- HDMI version
HDMI 1.4
- Cable design
Round
- Connections
RJ45 connector
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3380791 Delock 65685 DisplayPort / HDMI Adapter [1x DisplayPort plug - 1x HDMI socket] Black gold plated connectors, Shielded
User & Safety Instructions
User & Safety Instructions 3380791 Delock 65685 DisplayPort / HDMI Adapter [1x DisplayPort plug - 1x HDMI socket] Black gold plated connectors, Shielded

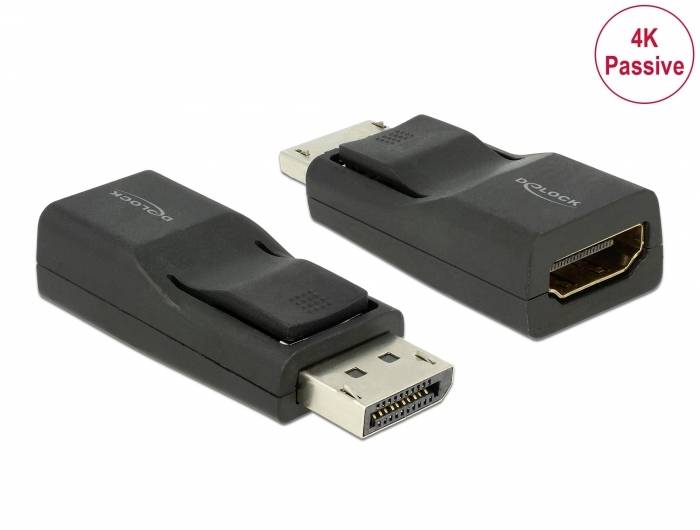

Description
Description
With this adapter from Delock, for example, a HDMI monitor can be connected via a free DisplayPort interface of the system. The adapter supports a resolution up to Ultra HD (4K) and is backward compatible with Full-HD 1080p.
Technical data
DisplayPort 20 pin plug > HDMI A 19 pin socket
NXP PTN3381D chipset
DisplayPort 1.2 and High Speed HDMI specification
Passive converter (level shifter), only suitable for graphics cards with DP++ output
Resolution up to 3840 x 2160 @ 30 Hz (depending on your monitor and system)
Supports 3D displays (1080p @ 120 Hz)
Dimensions incl. connection (LxWxH): Approx. 57 x 22 x 14 mm

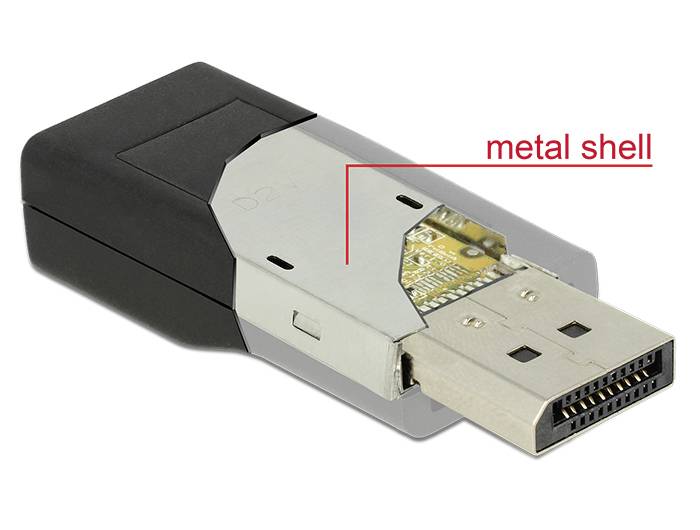

Plastic casing with inner metal shielding
Colour, black
OS independent, no driver installation required
System requirements
A free DisplayPort DP++ socket
Package contents
Adapter DisplayPort to HDMI

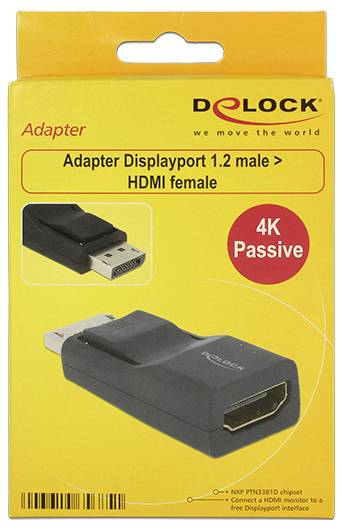

Packaging
Retail box
