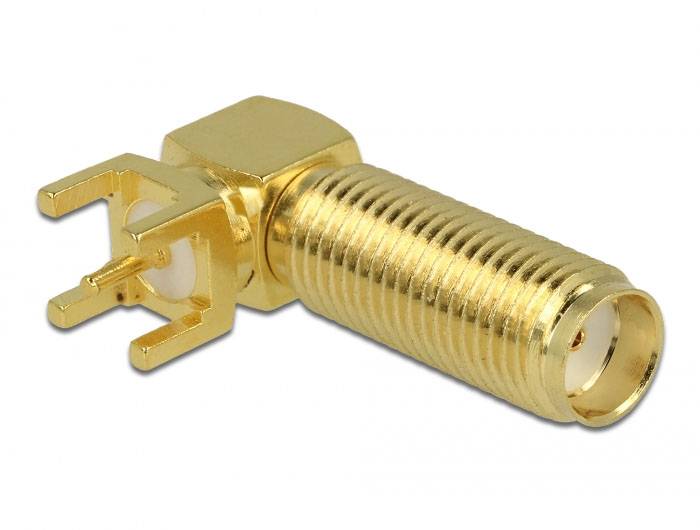

Delock 65848 65848 SMA connector 50 Ω 1 pc(s) Bag
EAN:
Part number:
Item no:
Packaging type
Bag
Product type
SMA connector
Impedance
50 Ω
Connection
SMA
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
SMA Bush 90° PCB thread length 16 mm
- Connection type: SMA
- Connection 1: SMA
- 0 - 6000 MHz 50 ohm
- Housing material: Brass
- Brass
- 1 pieces(s)
Technical specifications
- Connection 1: SMA
- Packaging type
Bag
- Product type
SMA connector
- Impedance
50 Ω
- Connection
SMA
- Content
1 pc(s)
- Max. frequency
6 GHz
- Case material
Brass gold plated
- Manufacturer part #
65848
- Insulation material
PTFE
- Contact material
Brass gold plated
- Length
22 mm
- Type
65848
- Seal type
None
- Cable design
Round
- Version
Cable
- Factory colour
Brass
- Depth
12 mm
- Height
4.6 mm
- Width
22 mm
- Cable use
C13/C14 appliances
- UKCA
yes
- Operating temperature (T-T)
-55 - 165 °C
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
- Withstanding voltage
500 V
- Frequency range
0 - 6000 MHz
Documents & Downloads
Datasheet
Datasheet 3383650 Delock 65848 65848 SMA connector 50 Ω 1 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 3383650 Delock 65848 65848 SMA connector 50 Ω 1 pc(s) Bag
Description
This socket by Delock is suitable for soldering on PCBs. The gold coating prevents corrosion and provides an optimum connection.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x 90° SMA socket
- Pin: Gold-plated brass
- Insulation: PTFE
- Housing: Gold-plated brass
- Frequency range: 0 - 6 GHz
- Impedance: 50 ohm
- VSWR: ≤1.5
- Thread type: 1/4″ - 36 US - 2A
- Thread length: 16 mm
- Operating temperature: -55 °C - 165 °C
- Voltage resistance 500V/50Hz
- Solder mounting 5 solder points
- Measured in (LxHxD) 22.0 x 12.0 x 4.6 mm
System requirements
- Suitable board for mounting the SMA connector
