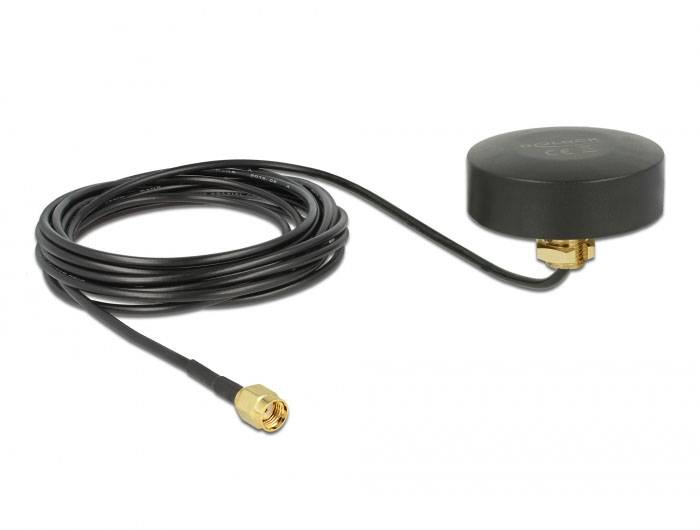

Delock 66285 Internal antenna WLAN
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
WLAN 802.11 b/g/n Antenna RP-SMA Plug 2 dBi solid directional with connection cable RG-174 1.5 m outdoor black
Technical specifications
- Product type
Mobile phone antenna
- Factory colour
Black
- Gain
2 dBi
- Length
250 cm
- Antenna type
Internal antenna
- Suitable for mains
WLAN
- Width
46 mm
- Height
15.4 mm
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Weight
80 g
- UKCA
yes
- Antenna gain level (max)
2 dBi
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3383850 Delock 66285 Internal antenna WLAN
User & Safety Instructions
User & Safety Instructions 3383850 Delock 66285 Internal antenna WLAN
Description
This Delock antenna allows you to use the 2.400 GHz band indoors and outdoors.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x RP-SMA plug
- Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM 2.4 GHz
- Frequency range 2.400 - 2.500 GHz
- Antenna gain 2 dBi
- Impedance: 50 ohm
- Polarisation: linear, vertical
- VSWR: ≤2.0
- Operating temperature -40 °C ~ 85 °C
- Screw-on mounting
- M16 screw type
- Thread length: 10 mm
- Mounting hole diameter 12 mm
- Colour, black
- Cable type: Coaxial
- Cable type: RG-174
- Cable color: Black
- Cable length incl. connections: Approx. 1.5 m.
- Transmitted power 50 W
- Dim. (Ø x H): Approx. 46.0 x 15.4 mm
System requirements
- Device with a free RP-SMA socket
