Delock 66388 66388 DIP switch Tri-state 1 pc(s) Bundle
Packaging type
Bundle
Product type
DIP switch
Type
Tri-state
Width
31.9 mm
Height
5.5 mm
EAN:
Part number:
Item no:
Technical specifications
- DIP switch type
- Packaging type
Bundle
- Product type
DIP switch
- Type
Tri-state
- Width
31.9 mm
- Height
5.5 mm
- Type
66388
- Content
1 pc(s)
- Dim
(W x H x D) 31.9 x 5.5 x 9.9 mm
- Version
Adapter
- Factory colour
Blue
- Type A
Print
- Type B
Print
- Depth
9.9 mm
- Material
Plastic
- UKCA
not relevant
- Operating temperature (T-T)
-40 - 85 °C
- Number of pins
24
- Quantity per pack
10 Stück(e)
- Maximum switching voltage
24 V
- Maximum switching current
0.025 A
- Withstanding voltage
300 V
- Soldering temperature (for 3 seconds)
250 °C
- Pitch distance
2.54 mm
- Insulation resistance
100 MΩ
- Storage temperature (T-T)
-40 - 85 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381519 Delock 66388 66388 DIP switch Tri-state 1 pc(s) Bundle
Description

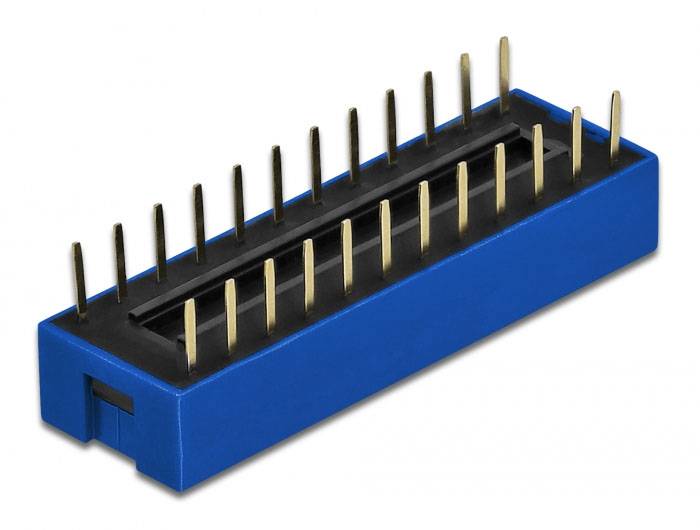

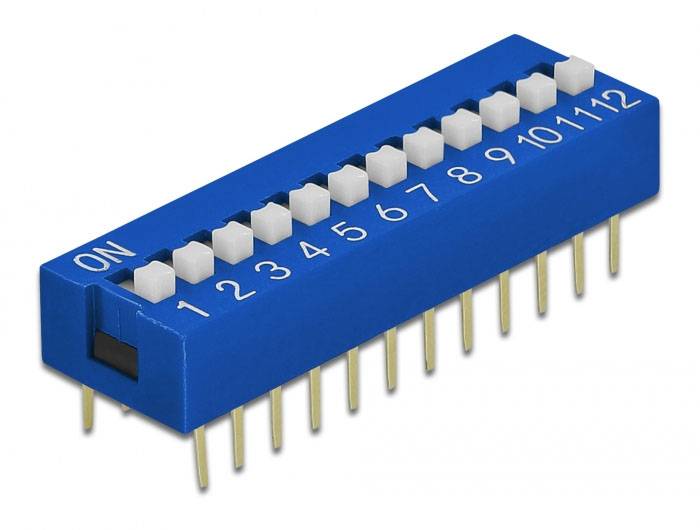

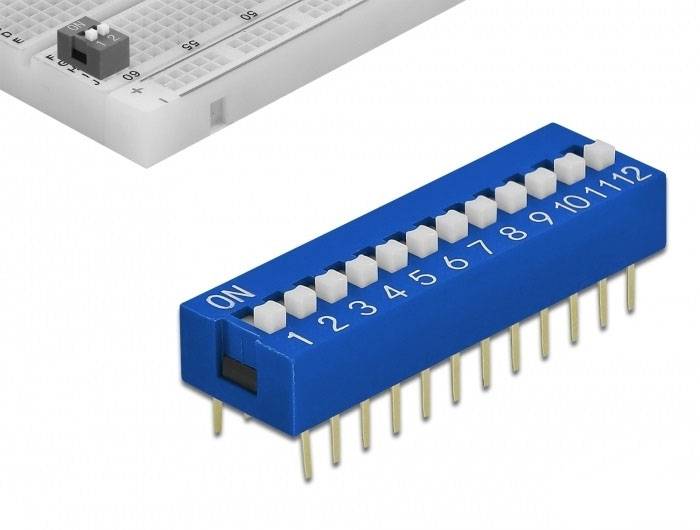

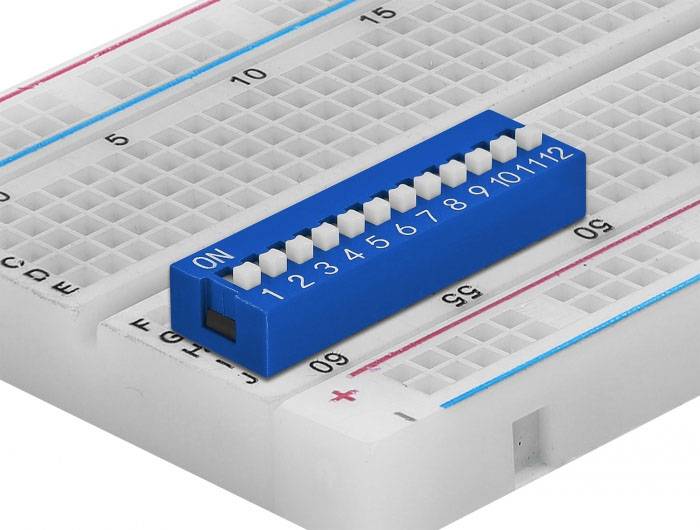

This DIP slide switch from Delock is suitable for through-hole mounting on a circuit board.
THT assembly technology
The attached solder pins on the DIP switch are placed in contact holes on the board and soldered to the bottom. The circuit series are used to set configurations as well as to change parameters.
Wide range of uses
The DIP switch is mainly used in telecommunications, computer and measurement applications.
This text is machine translated.
THT assembly technology
The attached solder pins on the DIP switch are placed in contact holes on the board and soldered to the bottom. The circuit series are used to set configurations as well as to change parameters.
Wide range of uses
The DIP switch is mainly used in telecommunications, computer and measurement applications.
This text is machine translated.
