Delock 66440 66440 Terminal (W x H x D) 18 x 14 x 26 mm Metal Multicolour 1 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal
Width
18 mm
Material
Metal
Height
14 mm
Dim
(W x H x D) 18 x 14 x 26 mm
Technical specifications
- Product type
Terminal
- Height
14 mm
- Width
18 mm
- Dim
(W x H x D) 18 x 14 x 26 mm
- Material
Metal
- Factory colour
Multicolour
- Content
1 pc(s)
- Type
66440
- Cable design
Round
- Cable length
0.018 m
- Version
Cable
- Type A
AMP
- Type B
AMP
- Depth
26 mm
- Cable use
C13/C14 appliances
- Weight
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3383952 Delock 66440 66440 Terminal (W x H x D) 18 x 14 x 26 mm Metal Multicolour 1 pc(s)
Description

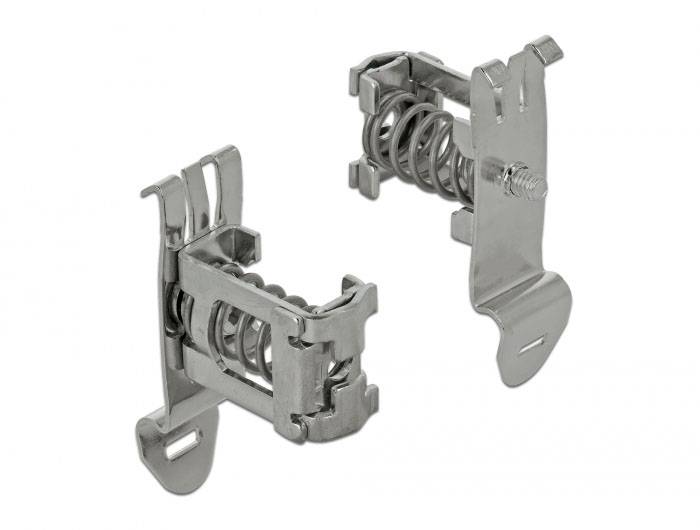

With this shield terminal from Delock a cable with a diameter of 3 - 8 mm can be attached to a 35 mm wide top-hat rail. In addition, the clamp can also be used as an EMC shield. This prevents any undesired electrical or electromagnetic effects from conducting the DIN rail.
Application
To secure a cable to the terminal, the spring must be pressed down using a tool, such as a screwdriver. If a cable is attached to the terminal, it is best to release it by pressing down the spring with the cable. The shield clamp can also be screwed onto the DIN rail. An HX3 Allen key is required for this purpose.
This text is machine translated.
Application
To secure a cable to the terminal, the spring must be pressed down using a tool, such as a screwdriver. If a cable is attached to the terminal, it is best to release it by pressing down the spring with the cable. The shield clamp can also be screwed onto the DIN rail. An HX3 Allen key is required for this purpose.
This text is machine translated.
