Delock 66441 66441 Terminal (W x H x D) 20 x 20 x 31 mm Metal Multicolour 1 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal
Width
20 mm
Material
Metal
Height
20 mm
Dim
(W x H x D) 20 x 20 x 31 mm
Technical specifications
- Product type
Terminal
- Height
20 mm
- Width
20 mm
- Dim
(W x H x D) 20 x 20 x 31 mm
- Material
Metal
- Factory colour
Multicolour
- Content
1 pc(s)
- Type
66441
- Cable design
Round
- Cable length
0.02 m
- Version
Cable
- Type A
AMP
- Type B
AMP
- Depth
31 mm
- Screen size diagonal (inches)
24 inch
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3383953 Delock 66441 66441 Terminal (W x H x D) 20 x 20 x 31 mm Metal Multicolour 1 pc(s)
Description

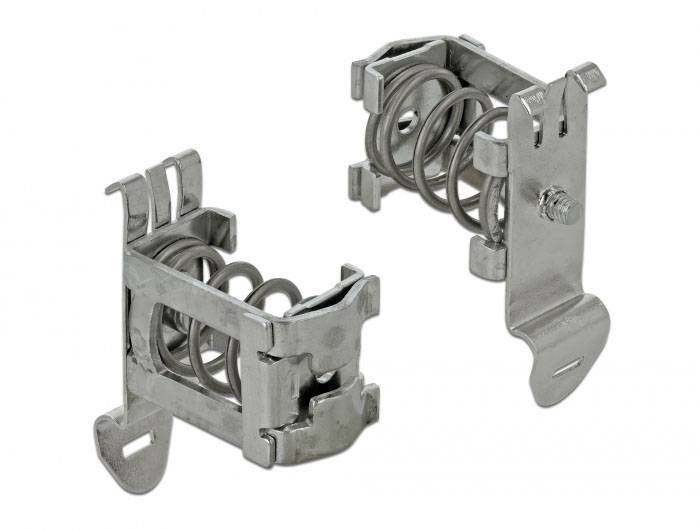

With this shield terminal from Delock a cable with a diameter of 4 - 13.5 mm can be attached to a 35 mm wide top-hat rail. In addition, the clamp can also be used as an EMC shield. This prevents any undesired electrical or electromagnetic effects from conducting the DIN rail.
Application
To secure a cable to the terminal, the spring must be pressed down using a tool, such as a screwdriver. If a cable is attached to the terminal, it is best to release it by pressing down the spring with the cable. The shield clamp can also be screwed onto the DIN rail. An HX3 Allen key is required for this purpose.
This text is machine translated.
Application
To secure a cable to the terminal, the spring must be pressed down using a tool, such as a screwdriver. If a cable is attached to the terminal, it is best to release it by pressing down the spring with the cable. The shield clamp can also be screwed onto the DIN rail. An HX3 Allen key is required for this purpose.
This text is machine translated.
