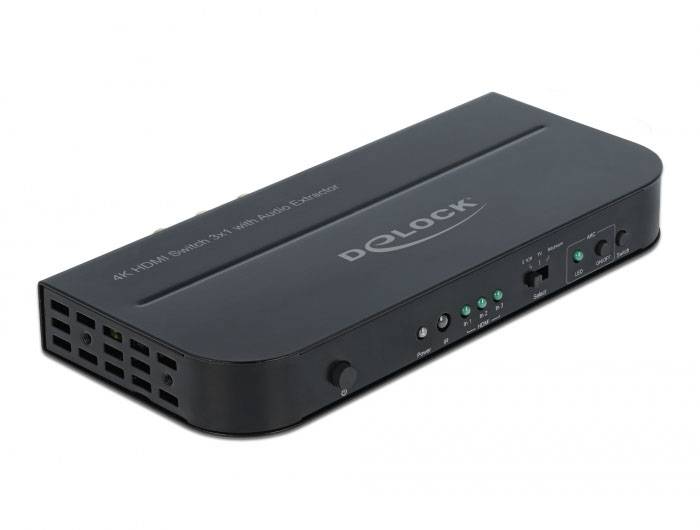

Delock 66498 HDMI switch 3840 x 2160 p
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
HDMI Switch 3 x HDMI in to 1 x HDMI out 4K 60 Hz with audio extractor
- HDMI video port type
- 3840 x 2160 pixels
- Black
- 1 pieces(s)
Technical specifications
- HD type 4K Ultra HD
- Product type
HDMI switch
- Supported monitors
1
- Resolution (max.)
3840 x 2160 p
- Factory colour
Black
- Width
75 mm
- Height
21 mm
- Depth
168 mm
- Weight
462 g
- Cable design
Round
- Cable length
50 cm
- Version
Cable
- Display resolution
3840 x 2160 Pixel
- Frame rate
60 Hz
- No. of HDMI ports
4 x
- Cable use
C13/C14 appliances
- Material
Metal
- Power supply (details)
100-240 V
- UKCA
yes

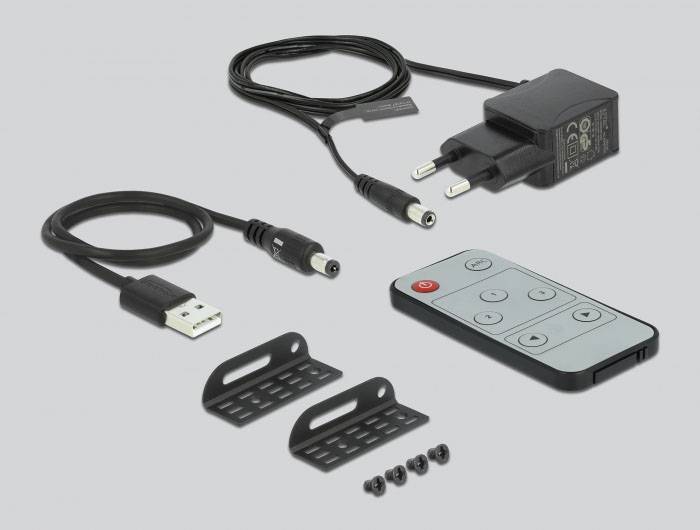

- AC adapter included
yes
- Remote control included
yes
- AC adapter input current
0.3 A
- Quantity per pack
1 Stück(e)
- 3.5 mm (1/8-inch) out
yes
- S/PDIF out port
yes
- DC-in jack
yes
- Bandwidth
18 Gbit/s
- Digital audio coaxial out
1
- Manual
yes
- Bandwidth
600 MHz
- HDCP
yes
- 3D
yes
- HDMI in
3
- Number of HDMI outputs
1
- Mounting kit
yes
- AC adapter output current
1 A
- Power consumption (max)
5 W
Documents & Downloads
Datasheet
Datasheet 3383963 Delock 66498 HDMI switch 3840 x 2160 p
User & Safety Instructions
User & Safety Instructions 3383963 Delock 66498 HDMI switch 3840 x 2160 p
Description
With this HDMI switch from Delock up to three HDMI devices can be operated at one HDMI monitor, TV or projector. You can switch between the HDMI devices using the button on the device or the remote control.
Audio Extractor
This function can be used to uncouple the audio signal from a HDMI transmission. While the image signal is displayed on a TV or monitor, the audio signal can be output digitally (S/PDIF) or analogue (stereo) to other devices such as headphones or surround receiver.
Audio return channel (ARC)
ARC can be activated on the device or on the remote control at the push of a button. The audio signal of the connected TV set is then output at the S/PDIF connectors of the switch.
This text is machine translated.
Audio Extractor
This function can be used to uncouple the audio signal from a HDMI transmission. While the image signal is displayed on a TV or monitor, the audio signal can be output digitally (S/PDIF) or analogue (stereo) to other devices such as headphones or surround receiver.
Audio return channel (ARC)
ARC can be activated on the device or on the remote control at the push of a button. The audio signal of the connected TV set is then output at the S/PDIF connectors of the switch.
This text is machine translated.
Features

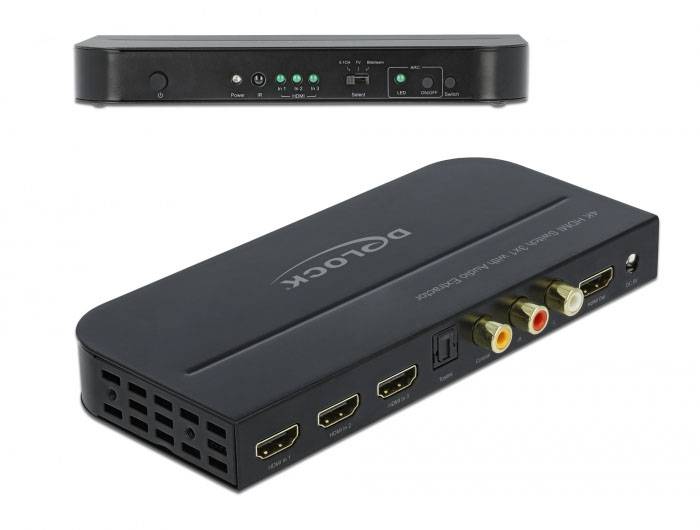

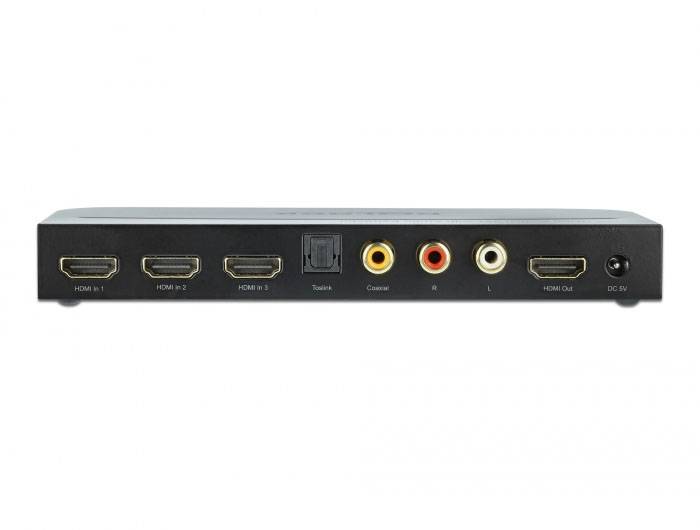

- Connections:
- Input:
- 3 x HDMI-A socket
- 1 x DC 5 V power connection
- Output:
- 1 x HDMI-A socket
- 2 x cinch sockets (audio)
- 1 x TOSLINK jack S/PDIF
- 1 x Cinch socket S/PDIF
- Switch over via button or via infrared remote control
- LED displays for active HDMI connection
- High Speed HDMI specification
- Supports 3D Displays
- Supports HDCP 1.4 and 2.2
- Supports HDR
- Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware)
- Video bandwidth up to 600 MHz / 6 Gbps, max. 18 Gbps
- Power consumption: max. 5 W
- Metal housing
- Removable wall mount
- Colour, black
- Dim. (LxWxH): Approx. 168 x 75 x 21 mm
System requirements
- A free HDMI socket
HDMI cable
