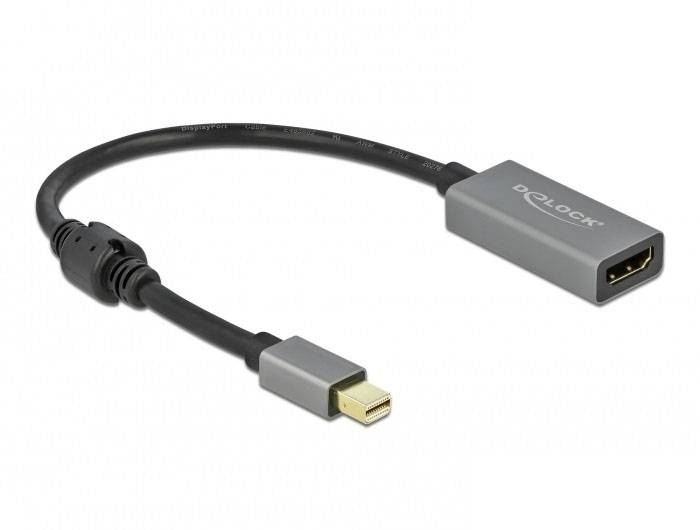

Delock 66570 DisplayPort / HDMI Adapter [1x Mini DisplayPort plug - 1x HDMI socket] Black, Grey 0.20 m
EAN:
Part number:
Item no:
Highlights & Details
Delock 66570 DisplayPort / HDMI Adapter [1x Mini DisplayPort plug - 1x HDMI socket] Black, Grey 0.20 m
- 0.2 m
- Mini DisplayPort Straight Male
- HDMI type A (standard) Straight Female
- 3840 x 2160 pixels 18 Gbit/s 60 Hz
- High Dynamic Range video (HDR) support
- Black/Grey
Technical specifications
- Connection1 Form factor: Straight
- Connection2 Form factor: Straight
- Connection 1: Mini DisplayPort
- Connection 2: HDMI type A (standard)
- Data transfer rate 18 Gbps
- Product type
TV/monitor Adapter
- Connection type
DisplayPort
HDMI
- No. of A connectors
1 x
- Type A
Mini DisplayPort plug
- No. of B connections
1 x
- Type B
HDMI socket
- Cable length
0.20 m
- Factory colour
Black
Grey
- Video resolution
3840 x 2160 Pixel
- Connector version
straight
32/28
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- Resolutions (max.)
UHD 4K @ 60 Hz
- HDMI version
HDMI 2.0
- Cable design
Round
- Signal flow direction
Unidirectional (uni)
- Cable specs
DisplayPort 1.4
HDMI 2.0
- Depth
45 mm
- Height
10 mm
- Width
20 mm
- Display resolution
3840 x 2160 Pixel
- Frame rate
60 Hz
- HDR support
Yes
- UKCA
yes
- Ferrite bead
yes
- HDCP
yes
- Cable diameter
5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381719 Delock 66570 DisplayPort / HDMI Adapter [1x Mini DisplayPort plug - 1x HDMI socket] Black, Grey 0.20 m
Description
With this adapter from Delock, a HDMI monitor can be connected to a system via a free mini DisplayPort interface. The adapter supports a resolution of up to 4K Ultra HD at 60 Hz and is backward compatible with Full-HD 1080p.
Active Adapter
The adapter offers an active conversion, so it is also suitable for graphics cards, which cannot output any DP++ signals.
This text is machine translated.
Active Adapter
The adapter offers an active conversion, so it is also suitable for graphics cards, which cannot output any DP++ signals.
