Delock 67113 VGA / RJ45 Adapter [1x D-SUB socket 15-pin - 1x RJ45 socket] Yellow
EAN:
Part number:
Item no:
Highlights & Details
Delock 67113 VGA / RJ45 Adapter [1x D-SUB socket 15-pin - 1x RJ45 socket] Yellow
- D-Sub 15 straight female
- RJ45 straight female
- Yellow
Technical specifications
- Connection 1: D-Sub 15
- Connection1 Form factor: Straight
- Connection2 Form factor: Straight
- Product type
TV/monitor Adapter
- Connection type
VGA
RJ45
- No. of A connectors
1 x
- Type A
D-SUB socket 15-pin
- No. of B connections
1 x
- Type B
RJ45 socket
- Factory colour
Yellow
- Connector version
straight
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- Cable design
Round
- Signal flow direction
Unidirectional (uni)
- Depth
40 mm
- Height
16 mm
- Width
23 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3383691 Delock 67113 VGA / RJ45 Adapter [1x D-SUB socket 15-pin - 1x RJ45 socket] Yellow
Description

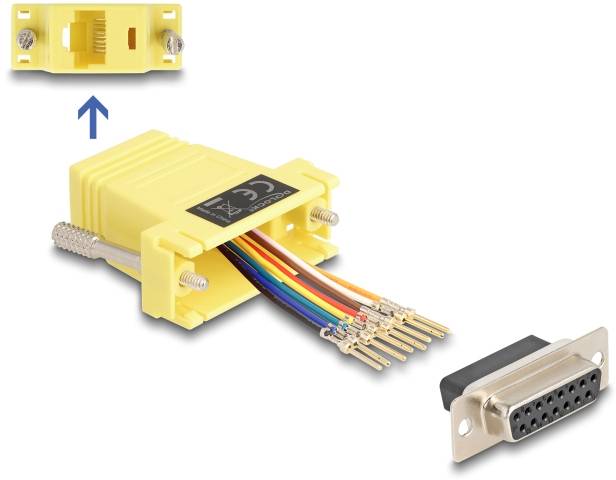

With this adapter from Delock, a serial interface can be extended via an optional CAT 5 / 5e / 6 cable The pin allocation can be individually defined. Simply attach the cable ends in the desired hole on the connector so that they snap into place inside the housing.
