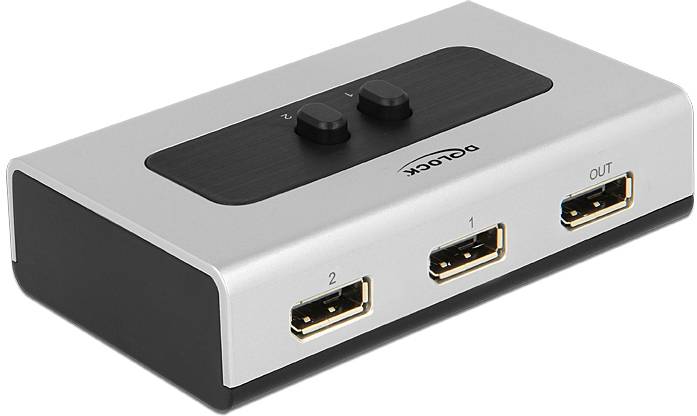

Delock 87668 DisplayPort switch Ultra HD compatibility 7680 x 4320 p
EAN:
Part number:
Item no:
Highlights & Details
DisplayPort 1.4 Manual 2-port switch
- Video port type:DisplayPort
- 2560 x 1440 pixels
- Black/Grey
Technical specifications
- Product type
DisplayPort switch
- Supported monitors
1
- Interfaces (input)
DisplayPort
- Interfaces (output)
DisplayPort
- No. of inputs
2 x
- No. of outputs
1 x
- Switch function
Manual
- Resolution (max.)
7680 x 4320 p
- Distributor/switch features
Ultra HD compatibility
- Factory colour
Black
Grey
- Width
112 mm
- Height
29 mm
- Depth
112 mm
- Weight
151 g
- Cable design
Round
- Version
Cable
- Display resolution
2560 x 1440 Pixel
- No. of DisplayPort
3 x
- Cable use
C13/C14 appliances
- UKCA
yes
- Manual
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380621 Delock 87668 DisplayPort switch Ultra HD compatibility 7680 x 4320 p
Description

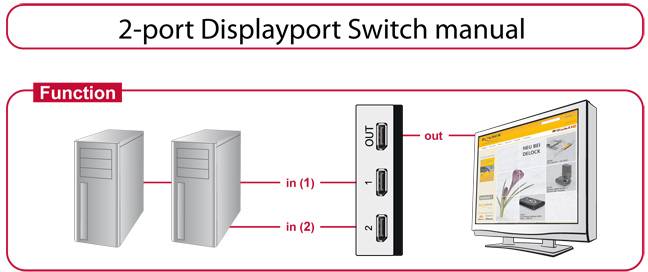

With this Delock DisplayPort switch, 2 DisplayPort devices can be operated via a display port monitor, TV or projector, etc. The DisplayPort source can be selected using the buttons.
This text is machine translated.
This text is machine translated.
Features
- Connections:
- Input:
- 2 x DisplayPort 20-pin socket
- Output:
- 1 x DisplayPort 20-pin socket
- DisplayPort 1.4 specification
- Resolution up to 7680 x 4320 @ 30 Hz (depending on the system and the connected hardware)
- Supports audio and video signals
- 2 mechanical buttons
- Plastic housing
- Do not Require external current supply
- Dimensions (LxWxH): Approx. 112 x 68 x 29 mm (without buttons)
- Colour: Grey / black
System requirements
- PC or Notebook with a free DisplayPort port
DisplayPort connection cable
