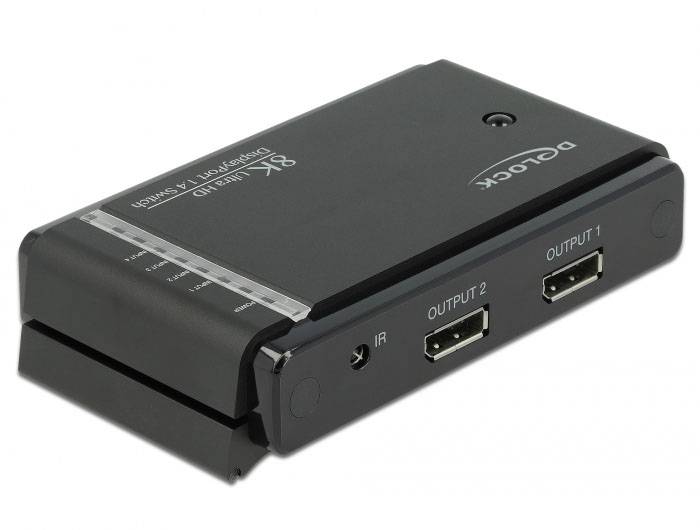

Name: Delock 87750 DisplayPort switch
Brand: Delock
SKU: 3381649

Highlights & Details

DisplayPort 1.4 switch 2 x 2 DisplayPort in to 1 x 2 DisplayPort out 8K

Video port type:DisplayPort
Black
1 pieces(s)

Technical specifications

Product type: DisplayPort switch

Supported monitors: 2

Factory colour: Black

Width: 74 mm

Height: 30 mm

Depth: 130 mm

Weight: 490 g

Cable design: Round

Cable length: 1 m

Version: Cable

Cable use: C13/C14 appliances

Material: Metal

UKCA: yes

AC adapter input current: 0.2 A

Quantity per pack: 1 Stück(e)

DC-in jack: yes

AC adapter output current: 1 A

Documents & Downloads

Datasheet

Datasheet 3381649 Delock 87750 DisplayPort switch

User & Safety Instructions

User & Safety Instructions 3381649 Delock 87750 DisplayPort switch

Description

This DisplayPort switch from Delock can be used to connect to a high-resolution 8K monitor with two DisplayPort inputs. The two inputs can thus be switched between two connected PCs. Alternatively, two 4K monitors can be shared between two connected computers.
You can switch between the DisplayPort devices using the button on the device or the remote control. The output is Dual mode compatible (DP++). Alternatively, an HDMI or DVI monitor can also be connected with an appropriate adapter.

This text is machine translated.

Features

Connections:
Input:
2 x 2 DisplayPort 20-pin socket
1 x DC 5 V power connection
Output:
1 x 2 DisplayPort 20-pin socket

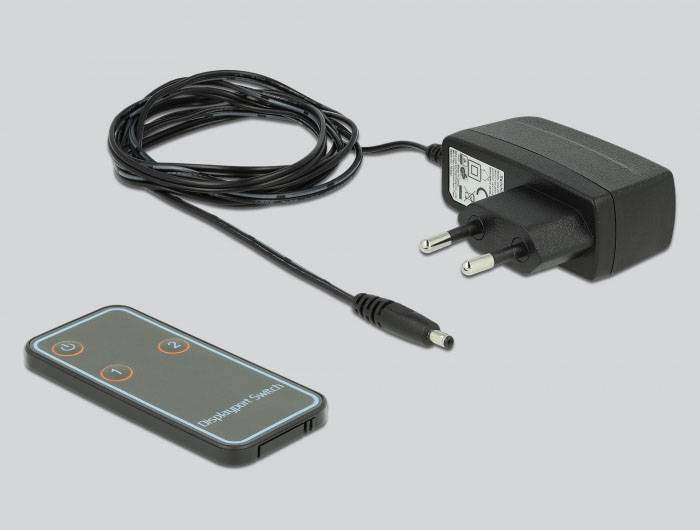

Switch over via button or via infrared remote control
LED display for active connection
DisplayPort 1.4 specification
Downwards compatible to DisplayPort 1.3, 1.2 and 1.1
DisplayPort output supports Dual mode DP++
Transmission of audio and video signals
Resolution up to:
DisplayPort output:
7680 x 4320 @ 30 Hz
3840 x 2160 @ 120 Hz
2560 x 1440 @ 144 Hz
(Depending on the system and the connected hardware)
Metal housing
Colour, black
Dim. (LxWxH): Approx. 130 x 74 x 30 mm

System requirements

A free DisplayPort connection at the system and display
DisplayPort connection cable
