Delock 88821 88821 Wi-Fi antenna 8 dBi 2.4 GHz
EAN:
Part number:
Item no:
Highlights & Details

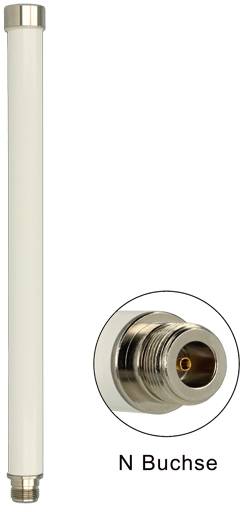

Delock 88821 Network-Antenna Omni-directional antenna N-type 8 dBi
- Omni-directional antenna N-type Metallic, white
- 8 dBi
- 2.4 - 2.4835 / 5.15 - 5,875 GHz
- 50 Ohm
- Vertical polarization
Technical specifications
- Frequency range 2.4 - 2.4835 / 5.15 - 5,875 GHz
- Impedance: 50 ohm
- Product color: Metallic, white
- Product type
Wi-Fi antenna
- Gain
8 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
N socket
- Weight
120 g
- No. of ports
1
- Dual Band compatibility
2.4 GHz and 5 GHz
- Polarisation
Vertical
- Width
22.5 mm
- Height
280 mm
- Length
250 cm
- Version
Adapter
- Factory colour
Multicolour
- Depth
22.5 mm
- Cable use
Networks
- Material (details)
Fibreglass
- UKCA
yes
- Operating temperature (T-T)
-40 - 80 °C
- Quantity per pack
1 Stück(e)
- Power handling
100 W
- Horizontal beam width
360°
- Vertical beam width
23°
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381089 Delock 88821 88821 Wi-Fi antenna 8 dBi 2.4 GHz
Description
This WLAN antenna serves for transmitting and receiving WLAN signals in accordance with IEEE 802.11 ac/a/h/b/g/n.
This text is machine translated.
This text is machine translated.
Features
- 1 x N socket
- Frequency range:
- 2.4000 - 2.4835 GHz
- 5.1500 - 5.8750 GHz

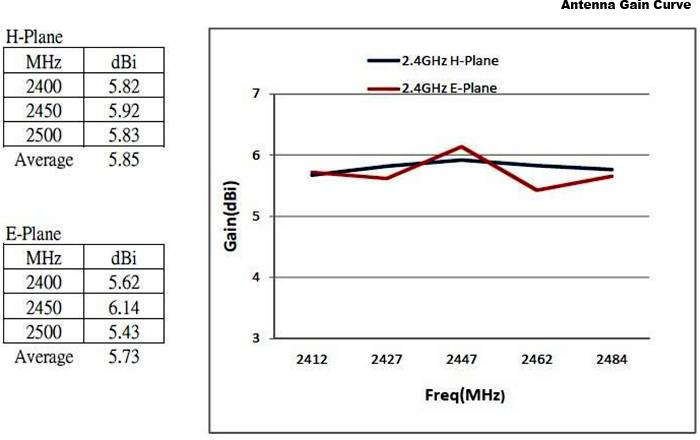

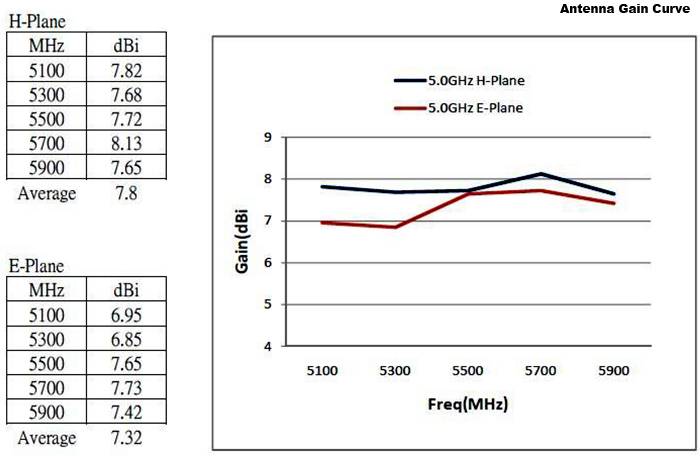

- Antenna gain 6 - 8 dBi
- Impedance: 50 ohm

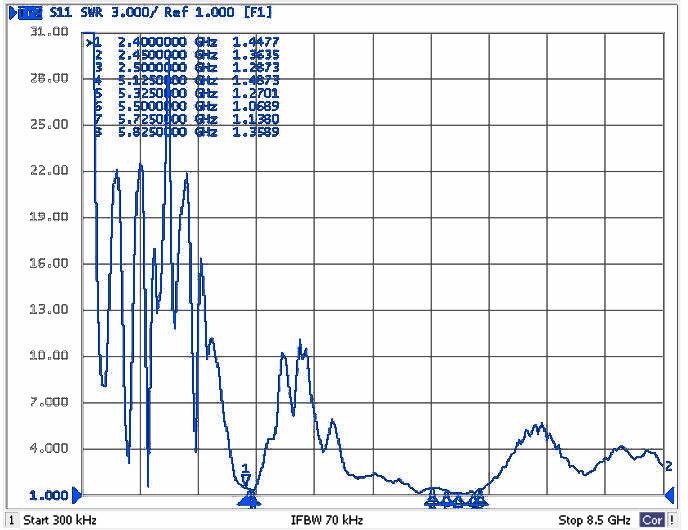

- VSWR: ≤1.5

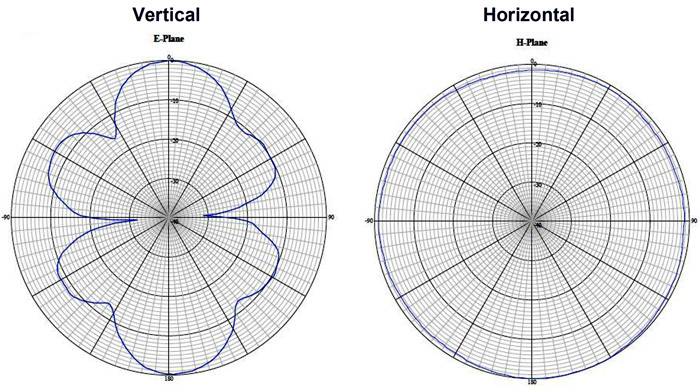

- Polarisation: Vertical
- HBW horizontal opening angle: 360°

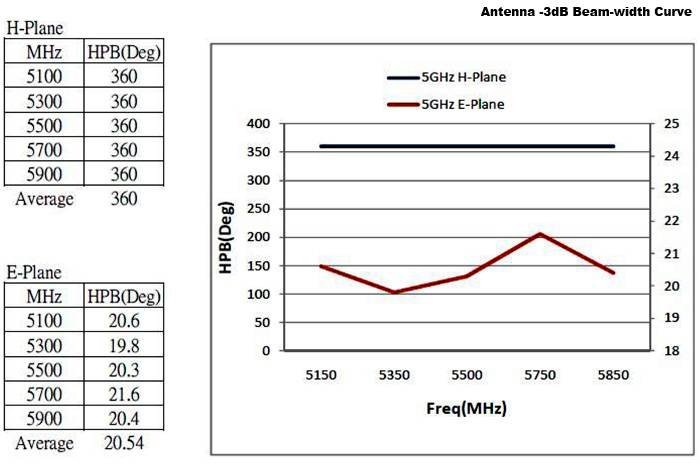

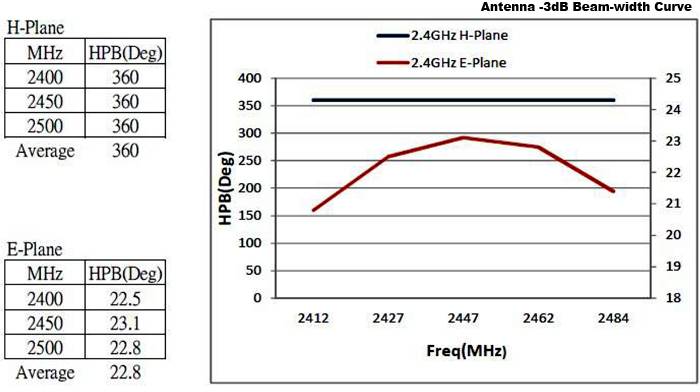

- VBW vertical aperture angle: 23°
- Transmitted power 2 W max.
- Operating temperature: -40 °C ~ 80 °C
- Housing material:GFK
- Colour: white
- Weight approx.: 105 g

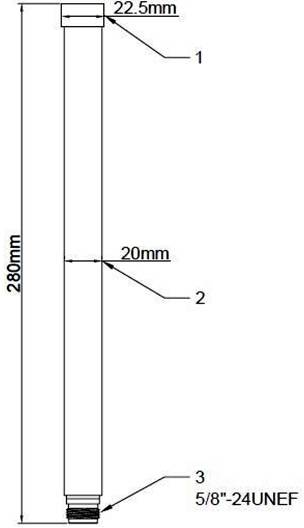

- Dimensions (LxD): Approx. 282 x 22.5 mm
System requirements
- Device with an empty N connection
