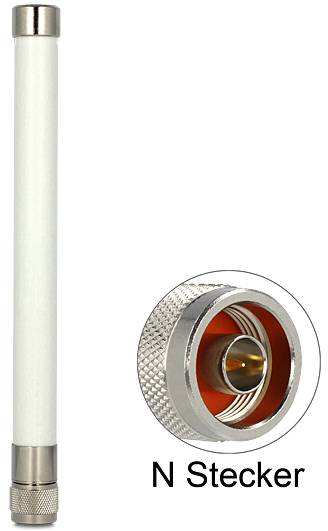

Delock 88822 88822 Wi-Fi antenna 7 dBi 2.4 GHz
EAN:
Part number:
Item no:
Highlights & Details
Delock 88822 Network-Antenna Omni-directional antenna N-type 7 dBi
- Omni-directional antenna N-type white
- 7 dBi
- 2.4 ~ 2.5 GHz
- 50 Ohm
Technical specifications
- 2.4 - 2.5 GHz
- Impedance: 50 ohm
- Product type
Wi-Fi antenna
- Gain
7 dBi
- Type
Monopole antenna
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
N plug
- Weight
200 g
- No. of ports
1
- Dual Band compatibility
2.4 GHz and 5 GHz
- Polarisation
Linear
Vertical
- Width
100 mm
- Height
50 mm
- Length
250 cm
- Version
Adapter
- Factory colour
White
- Cable use
Networks
- UKCA
yes
- Operating temperature (T-T)
-40 - 70 °C
- Diameter
2.1 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380556 Delock 88822 88822 Wi-Fi antenna 7 dBi 2.4 GHz
Description
This WLAN antenna can be connected to a WLAN device with N connection in order to receive and send signals.
This text is machine translated.
This text is machine translated.
Features
- Connection: N plug
- Frequency range:
- 2.400 - 2.500 GHz
- 5.150 - 5.875 GHz
- Antenna gain:
- 4.5 dBi @ 2.400 - 2.500 GHz
- 7.0 dBi @ 5.150 - 5.875 GHz
- Impedance: 50 ohm
- Polarisation: linear, vertical
- VSWR: ≤2.0
- Operating temperature: -10 °C ~ 55 °C
- Housing material:GFK UV-protected
- Length approx. 220 mm
- Diameter:
- Approx. 21.00 mm (tip)
- Approx. 21.00 mm (N)
- Maximum transmission power 2 W
- Maximum wind speed 216 km/h
- Splash-proof
System requirements
- Device with a free N socket
