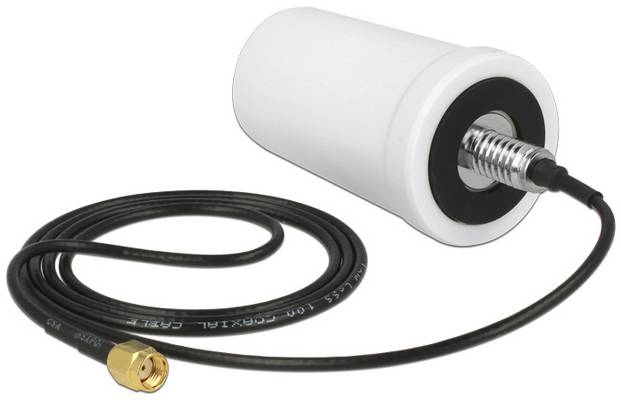

Delock 88985 88985 Wi-Fi antenna 3 dBi 2.4 GHz
EAN:
Part number:
Item no:
Highlights & Details
Delock 88985 network-antenna Omni-directional antenna RP-SMA 3 dBi
- Omni-directional antenna RP-SMA black, white
- 3 dBi
- 2.4 - 2.5 / 4.9 - 5,875 GHz
Technical specifications
- Frequency range 2.4 - 2.5 / 4.9 - 5,875 GHz
- Cable type ULA100
- Product type
Wi-Fi antenna
- Gain
3 dBi
- Wi-Fi frequency band
2.4 GHz
- Antenna socket
RPSMA plug
- Weight
0
- No. of ports
1
- Dual Band compatibility
2.4 GHz and 5 GHz
- Mounting type
Screw fastening
- Polarisation
Linear
Vertical
- Width
45 mm
- Height
77 mm
- Length
77 mm
- Cable length
1 m
- Version
Adapter
- Factory colour
Black
White
- Cable use
Networks
- UKCA
yes
- Operating temperature (T-T)
-10 - 50 °C
- Diameter
4.5 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380682 Delock 88985 88985 Wi-Fi antenna 3 dBi 2.4 GHz
Description
You can connect this WLAN antenna to your WLAN device with RP-SMA connection, in order to send and receive signals.
This text is machine translated.
This text is machine translated.
Features
- RP-SMA plug connection
- Frequency range:
- 2400 - 2500 MHz
- 5150 - 5875 MHz
- Antenna gain:
- 1.4 dBi @ 2400 - 2500 MHz
- 3.0 dBi @ 5150 - 5875 MHz
- Impedance: 50 ohm
- Polarisation: linear, vertical
- VSWR: ≤2.0
- Operating temperature: -10 °C ~ 50 °C
- Polycarbonate housing material
- IP67 protection class
- Screw mounting with 13 mm bore
- Colour: white
- Dim. (LxWxH): Approx. 77 x 45 x 45 mm
- Cable type: Coaxial
- Cable type ULA 100
- Cable color: Black
- Cable attenuation:
- 1.4 dB @ 2500 MHz per meter
- 2.3 dB @ 5875 MHz per meter
- Cable diameter: Approx. 2.79 mm
- Cable length incl. connection: Approx. 1 m.
System requirements
- Device with a free RP-SMA socket
