Name: Delock 88989 Wall/pole mount antenna 5G, LTE
Brand: Delock
SKU: 3383588

Highlights & Details

Navilock NL-400 Multiband GNSS 5G LTE-MIMO WLAN-MIMO IEEE 802.11 ac/a/h/b/g/n antenna 5 x RP-SMA omnidirectional roof mounting outdoors

Technical specifications

Cable type CFD200

Product type: Mobile phone antenna

Factory colour: White

Gain: 4 dBi

Length: 160 mm

Antenna type: Wall/pole mount antenna

Suitable for mains: 5G
LTE

Width: 106 mm

Height: 102 mm

Cable design: Round

Cable length: 3 m

Version: Cable

Depth: 160 mm

: IP67

Cable use: C13/C14 appliances

Weight: 1.6 kg

UKCA: yes

Operating temperature (T-T): -40 - 80 °C

Antenna gain level (max): 30 dBi

Impedance: 50 Ohm

Quantity per pack: 1 Stück(e)

Power consumption: 16 mA

Mounting kit: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3383588 Delock 88989 Wall/pole mount antenna 5G, LTE

Description

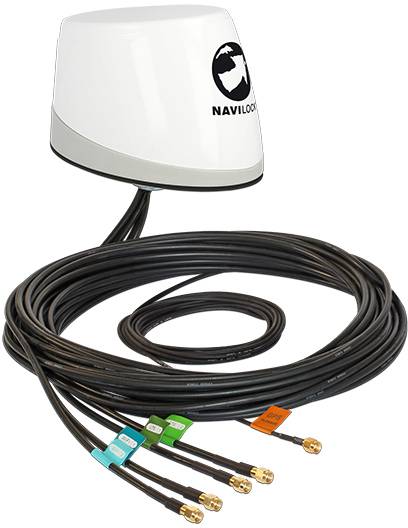

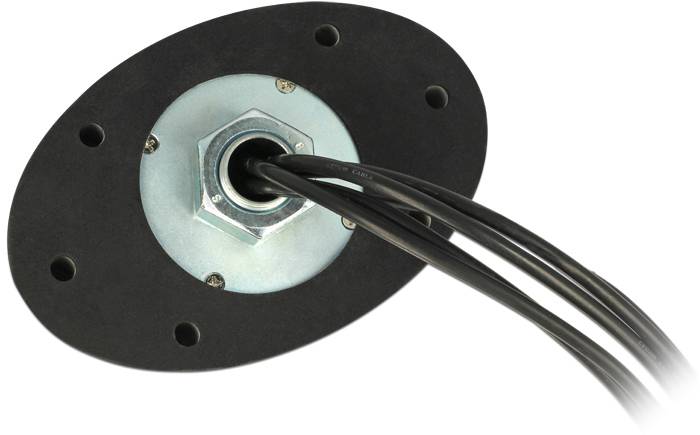

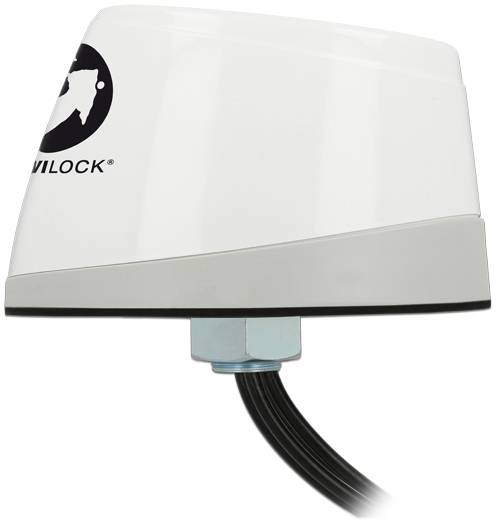

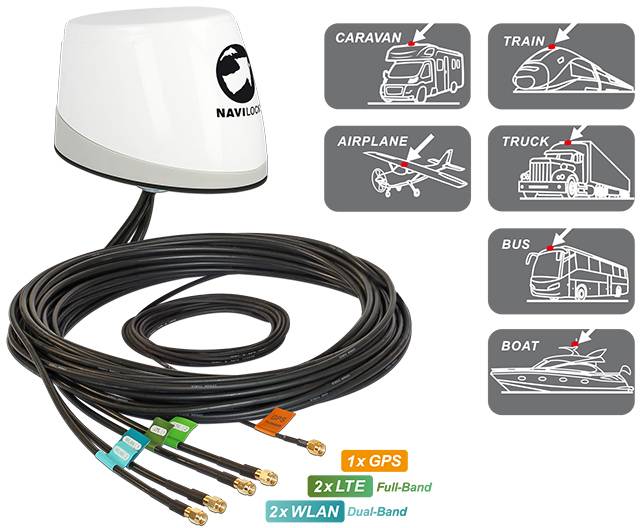

This high-quality multi-band antenna consists of five physically separate transmitting and receiving units. The GNSS patch antenna receives signals from the Global Navigation Satellite Systems GPS, GALILEO and GLONASS. Two PCB antennas operate in MIMO on all common 5G and LTE bands. Two further PCB antennas in MIMO operation completely cover the WLAN range in the dual band. Furthermore, this multi-band antenna is in a position to transmit GSM, UMTS, Bluetooth, Z-Wave and ZigBee signals. With its robust outdoor features, the NL-400 is ideal for harsh everyday life in the fields of transportation, forestry and agriculture, construction as well as in the maritime sector. It is waterproof, shock-resistant and can be used in an extended temperature range. The NL-400 supplies and transmits signals reliably, quickly and accurately under all circumstances. 5G is the new mobile phone standard
5G will use more and wider frequency spectrum than its predecessors LTE (4G) and UMTS (3G).
The 5G standard promises more throughput, capacity and low latency.

This text is machine translated.

Features

Connection 5 x RP-SMA plug
GNSS GPS GALILEO GLONASS:
Frequency range:
GPS, GALILEO, L1, 1.5754200 GHZ
GLONASS G1, 1.6025625 ~ 1.6155000 GHz
Gain 4 dBi
VSWR: Less than 2
Impedance: 50 ohm
Polarization: RHCP
LNA GNSS:
Frequency range:
GPS, GALILEO, L1, 1.5754200 GHZ
GLONASS L1, 1.6025625 ~ 1.6155000 GHz
Gain 30 dBi
Operating voltage 3.3 ~ 5.0 V
Power consumption: 17 mA
VSWR: Less than 2
Impedance: 50 ohm
Polarisation: Linear
Cable type: RG-174
Cable attenuation:
2.4 GHz: 2.06 dB per meter
6.0 GHz: 3.45 dB per meter
5G LTE MIMO:
Frequency range:
698 - 960 MHz
1.710 - 2.170 GHz
2.500 - 2.600 GHz
3.400 - 3.800 GHz
GSM / UMTS / ZigBee / Z-Wave / LoRa
Gain 3.4 - 4 dBi
Transmitted power 5 W
VSWR: Less than 3
Impedance: 50 ohm
Polarisation: Linear
Cable type CFD200
Cable attenuation:
2.4 GHz: 0.55 dB per meter
5.7 GHz: 0.86 dB per meter
WLAN MIMO dual band
Frequency range:
2.400 - 2.483 GHz
5.150 - 5.850 GHz
Bluetooth/ZigBee
Gain 4 dBi
Transmitted power 1 W
VSWR: Less than 3
Impedance: 50 ohm
Polarisation: Linear
Cable type CFD200
Cable attenuation:
2.4 GHz: 0.55 dB per meter
5.7 GHz: 0.86 dB per meter
Operating temperature: -40°C to 80°C
PC-540 PC/ABS Alloy casing material
Cable length 3 m
Cable color: Black
IP67 protection class
Dimensions (LxWxH): Approx. 160 x 106 x 102 mmless than/div
less than/div

System requirements

Device with several free RP-SMA connections

Description

This high-quality multi-band antenna consists of five physically separate transmitting and receiving units. The GNSS patch antenna receives signals from the Global Navigation Satellite Systems GPS, GALILEO and GLONASS. Two PCB antennas operate in MIMO on all common 5G and LTE bands. Two further PCB antennas in MIMO operation completely cover the WLAN range in the dual band. Furthermore, this multi-band antenna is in a position to transmit GSM, UMTS, Bluetooth, Z-Wave and ZigBee signals. With its robust outdoor features, the NL-400 is ideal for harsh everyday life in the fields of transportation, forestry and agriculture, construction as well as in the maritime sector. It is waterproof, shock-resistant and can be used in an extended temperature range. The NL-400 supplies and transmits signals reliably, quickly and accurately under all circumstances. 5G is the new mobile phone standard
5G will use more and wider frequency spectrum than its predecessors LTE (4G) and UMTS (3G).
The 5G standard promises more throughput, capacity and low latency.

This text is machine translated.

Features

Connection 5 x RP-SMA plug
GNSS GPS GALILEO GLONASS:
Frequency range:
GPS, GALILEO, L1, 1.5754200 GHZ
GLONASS G1, 1.6025625 ~ 1.6155000 GHz
Gain 4 dBi
VSWR: Less than 2
Impedance: 50 ohm
Polarization: RHCP
LNA GNSS:
Frequency range:
GPS, GALILEO, L1, 1.5754200 GHZ
GLONASS L1, 1.6025625 ~ 1.6155000 GHz
Gain 30 dBi
Operating voltage 3.3 ~ 5.0 V
Power consumption: 17 mA
VSWR: Less than 2
Impedance: 50 ohm
Polarisation: Linear
Cable type: RG-174
Cable attenuation:
2.4 GHz: 2.06 dB per meter
6.0 GHz: 3.45 dB per meter
5G LTE MIMO:
Frequency range:
698 - 960 MHz
1.710 - 2.170 GHz
2.500 - 2.600 GHz
3.400 - 3.800 GHz
GSM / UMTS / ZigBee / Z-Wave / LoRa
Gain 3.4 - 4 dBi
Transmitted power 5 W
VSWR: Less than 3
Impedance: 50 ohm
Polarisation: Linear
Cable type CFD200
Cable attenuation:
2.4 GHz: 0.55 dB per meter
5.7 GHz: 0.86 dB per meter
WLAN MIMO dual band
Frequency range:
2.400 - 2.483 GHz
5.150 - 5.850 GHz
Bluetooth/ZigBee
Gain 4 dBi
Transmitted power 1 W
VSWR: Less than 3
Impedance: 50 ohm
Polarisation: Linear
Cable type CFD200
Cable attenuation:
2.4 GHz: 0.55 dB per meter
5.7 GHz: 0.86 dB per meter
Operating temperature: -40°C to 80°C
PC-540 PC/ABS Alloy casing material
Cable length 3 m
Cable color: Black
IP67 protection class
Dimensions (LxWxH): Approx. 160 x 106 x 102 mmless than/div
less than/div

System requirements

Device with several free RP-SMA connections
