Delock 89014 89014 Wi-Fi antenna 28.0 dBi 2.4 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Impedance: 50 ohm
- Product type
Wi-Fi antenna
- Gain
28.0 dBi
- Wi-Fi frequency band
2.4 GHz
- Used at
Car
- Antenna socket
SMBA FAKRA socket
- Weight
0
- No. of ports
1
- Polarisation
Linear
- Width
69 mm
- Height
70 mm
- Length
182 mm
- Cable design
Round
- Version
Cable
- Factory colour
Multicolour
IP67
- Cable use
C13/C14 appliances
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3383587 Delock 89014 89014 Wi-Fi antenna 28.0 dBi 2.4 GHz
User & Safety Instructions
User & Safety Instructions 3383587 Delock 89014 89014 Wi-Fi antenna 28.0 dBi 2.4 GHz
Description

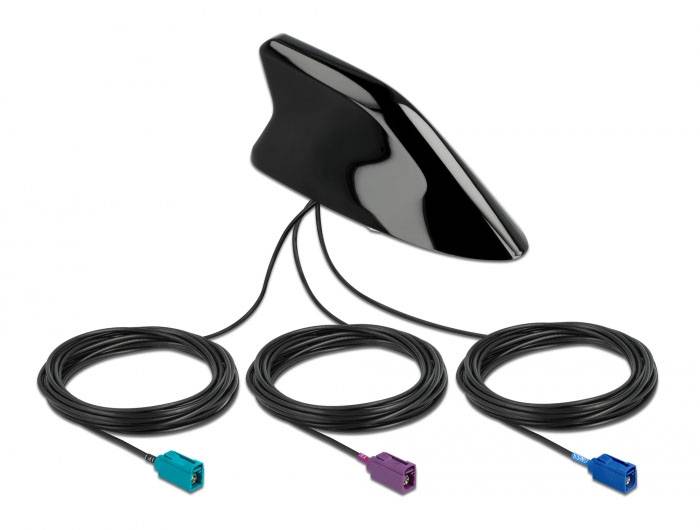

This multi-band antenna by Delock is for mounting on a car roof.
The so-called Shark Fin antenna has three different frequency bands. The GPS patch antenna receives the signals from the Global Navigation Satellite Systems GALILEO and GPS. And it works with all standard LTE tapes as well. With the help of the 2.4 GHz frequency band the WLAN range is also covered.
Stylish and functional
The modern design of this Shark Fin antenna not only looks good, but is also especially stable and aerodynamically.
This text is machine translated.
The so-called Shark Fin antenna has three different frequency bands. The GPS patch antenna receives the signals from the Global Navigation Satellite Systems GALILEO and GPS. And it works with all standard LTE tapes as well. With the help of the 2.4 GHz frequency band the WLAN range is also covered.
Stylish and functional
The modern design of this Shark Fin antenna not only looks good, but is also especially stable and aerodynamically.
This text is machine translated.
Features
- Connections:
- 1 x FAKRA D socket
- 1 x FAKRA Z socket
- 1 x FAKRA C socket
- LTE FAKRA D:
- Frequency range:
- 698 - 960 MHz
- 1710 - 2690 MHz
- Antenna gain 3.5 dBi
- VSWR: Less than 3.0
- Impedance: 50 ohm
- Polarisation: Linear
- WLAN FAKRA Z:
- Frequency range:
- 2400 - 2483.5 MHz
- Antenna gain 3.0 dBi
- VSWR: Less than 2.0
- Impedance: 50 ohm
- Polarisation: Linear
- GNSS FAKRA C:
- Frequency range:
- GPS 1.5754200 GHz
- GALILEO 1.5754200 GHz
- Antenna gain 2 dBi
- VSWR: Less than 1.5
- Impedance: 50 ohm
- Polarization: RHCP
- LNA GNSS:
- Antenna gain 28.0 dBi
- Noise factor: Less than 2.0 dB
- VSWR: Less than 2.0
- Power supply 3.0 - 5.0 V/max.
- Current consumption: Less than 15 mA
- Operating temperature -40 °C ~ 85 °C
- ABS casing material
- Cable length approx. 3 m
- Cable color: Black
- Cable type: RG-174
- Protection class IP67
- Dim. (LxWxH): Approx. 182 x 69 x 70 mm
System requirements
- Devices with free Fakra connections
