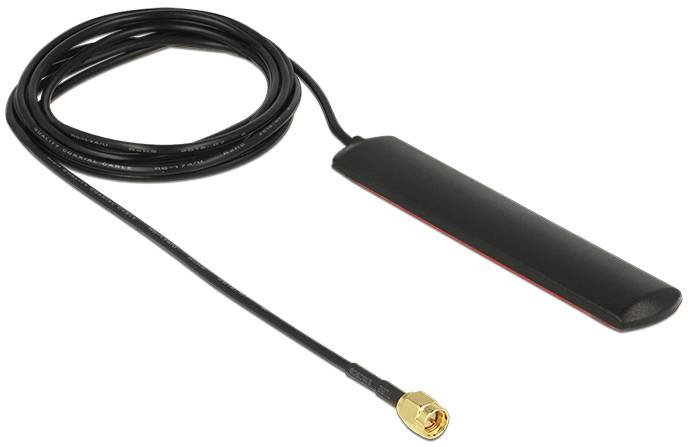

Delock 89491 Internal antenna GSM
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
GSM UMTS LTE WLAN 2.4 GHz antenna SMA plug 2 dBi omnidirectional rigid black adhesive mounting
Technical specifications
- Cable type: RG-174
- Product type
Mobile phone antenna
- Mobile phone standard
GSM
LTE
UMTS
- Factory colour
Black
- Gain
2 dBi
- Length
11.56 cm
- Antenna type
Internal antenna
- Suitable for mains
GSM
- Width
2.17 cm
- Height
0.58 cm
- Cable design
Round
- Cable length
2 m
- Version
Cable
- Depth
72 mm
- Cable use
C13/C14 appliances
- Weight
0.041
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Antenna gain level (max)
2 dBi
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3381008 Delock 89491 Internal antenna GSM
User & Safety Instructions
User & Safety Instructions 3381008 Delock 89491 Internal antenna GSM
Description
This antenna by Delock enables the use of different frequency bands in indoor areas. It is completely compatible with Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- LTE tape:1-6; 8-10; 19; 25; 33-37; 39
- Frequency range 824 - 960, 1920 - 2170, 2400 - 2500 MHz
- GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave
- Antenna gain 2 dBi
- Impedance: 50 ohm
- Polarisation: Vertical
- VSWR: ≤2.0
- Operating temperature -40 °C ~ 85 °C
- Colour, black
- Dimensions (LxWxH): Approx. 11.56 x 2.17 x 0.58 cm
- Cable type: Coaxial
- Cable type: RG-174
- Cable color: Black
- Cable attenuation: 1.8 dB @ 1.8 GHz per meter
- Cable diameter: Approx. 2.7 mm
- Cable length incl. connection: Approx. 2 m.
System requirements
- Device with a free SMA connection
