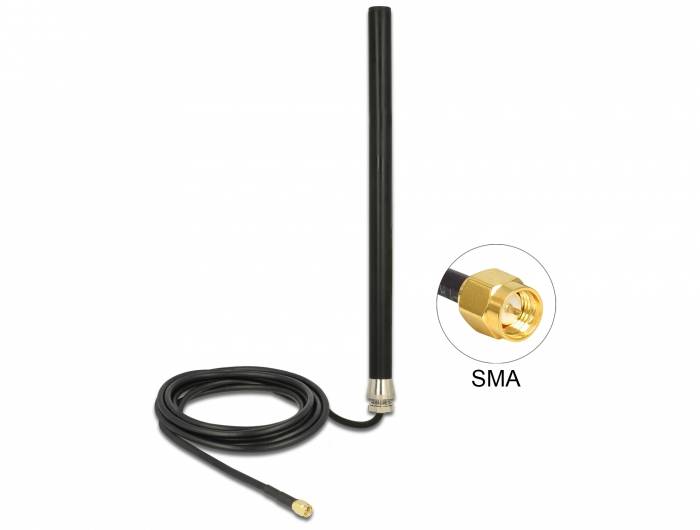

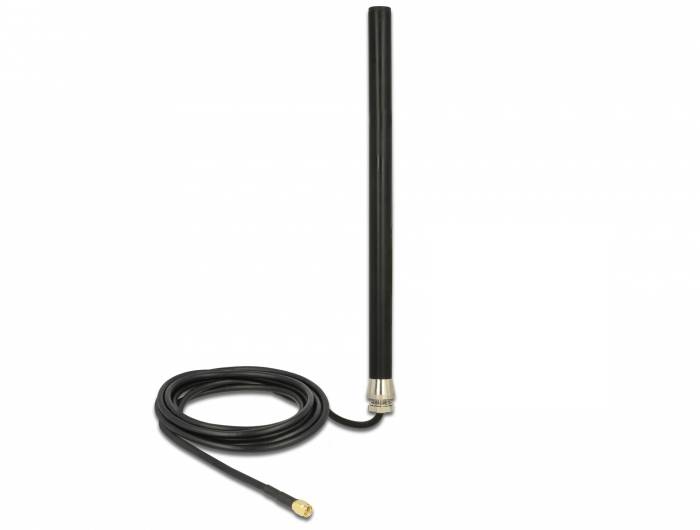

Delock 89529 Wall/pole mount antenna LTE, GSM, UMTS
EAN:
Part number:
Item no:
Highlights & Details
LTE UMTS GSM Antenna SMA Plug 3 dBi omnidirectional rigid with connector cable RG-58, 3 m wall mounting outdoor black
Technical specifications
- Product type
Mobile phone antenna
- Mobile phone standard
GSM
LTE
UMTS
- Factory colour
Black
- Gain
3 dBi
- Length
250 cm
- Antenna type
Wall/pole mount antenna
- Suitable for mains
LTE
GSM
UMTS
- Width
9 cm
- Height
269 mm
- Cable design
Round
- Version
Cable
- Cable use
C13/C14 appliances
- Charging method (Power Delivery)
w/o USB Power Delivery
- Material
Plastic
- Charging capacity (max.)
15 W
- Charging capacity (min.)
10 W
- Weight
380 g
- UKCA
yes
- Gain
3 dB
- Impedance
50 Ohm
- Cord length
3 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381240 Delock 89529 Wall/pole mount antenna LTE, GSM, UMTS
Description
The antenna from Delock enables the use of different LTE, GSM and UMTS bands indoors and outdoors. It is fully Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz compatible.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Frequency range:
- 690 - 960 MHz
- 1710 - 2170 MHz
- 2400 - 2700 MHz
- ZigBee, DECT, Z-Wave, LoRa 868 MHz / 915 MHz
- Antenna gain 3 dBi
- Impedance: 50 ohm
- VSWR: ≤2.0
- Polarisation: Vertical
- Transmitted power 10 W max.
- Antenna type: Rod antenna

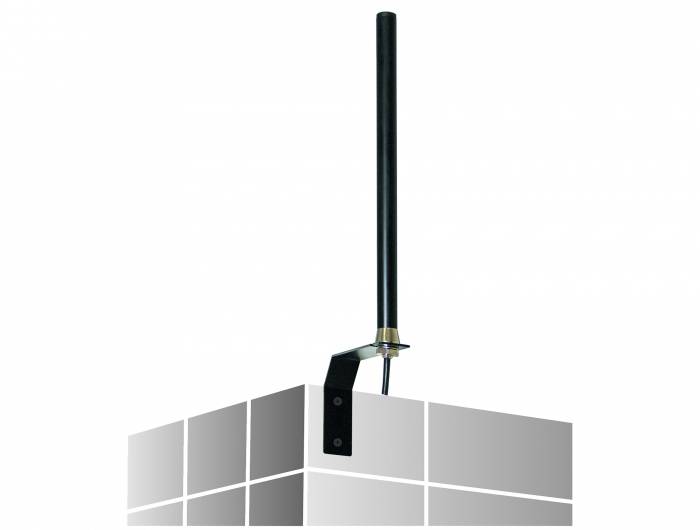

- Wall mounting bracket
- Operating temperature: -30 °C ~ 70 °C
- Housing material: Plastic
- Foot: Metal
- Colour, black
- Cable type: Coaxial
- Cable type: RG-58
- Cable color: Black
- Cable diameter: Approx. 5 mm
- Cable attenuation: 0.57 dB @ 1 GHz per meter
- Cable length approx. 3 m

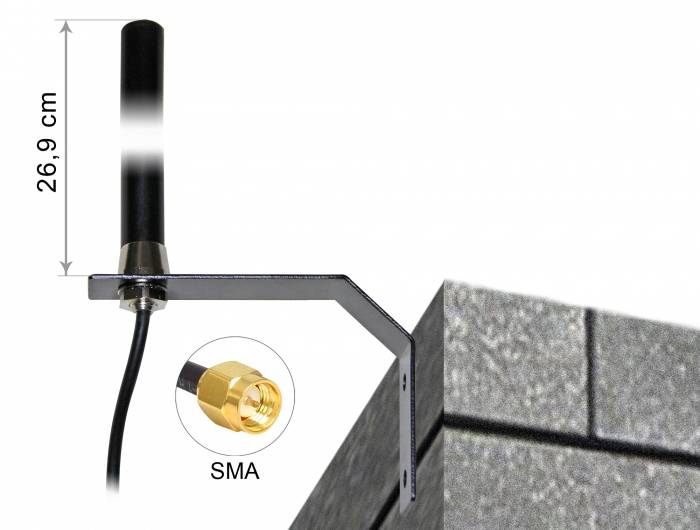

- Dimensions (LxD): Approx. 26.9 x 1.6 cm
System requirements
- Device with a free SMA socket
