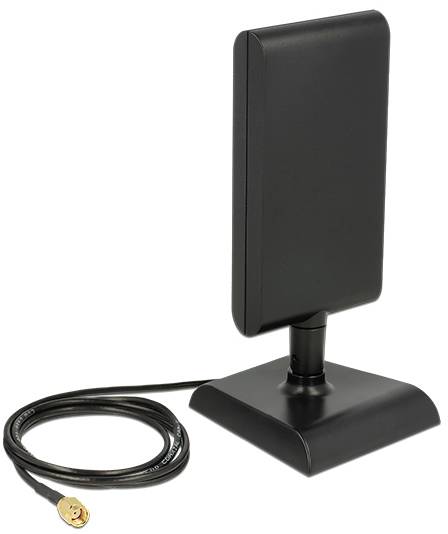

Delock 89590 Internal antenna WLAN
EAN:
Part number:
Item no:
Highlights & Details
WLAN 802.11 ac/a/h/b/g/n Antenna RP-SMA plug 6 - 9 dBi directional with magnetic base and connection cable (ULA 100, 1 m) black
Technical specifications
- Product type
Mobile phone antenna
- Spotlight length
16.2 cm
- Factory colour
Black
- Gain
9 dBi
- Length
166 mm
- Antenna type
Internal antenna
- Features
+ aerial jack
- Suitable for mains
WLAN
- Width
66 mm
- Height
18 mm
- Cable design
Round
- Version
Cable
- Depth
162 mm
- Cable use
C13/C14 appliances
- Weight
200 g
- UKCA
yes
- Operating temperature (T-T)
-10 - 55 °C
- Antenna gain level (max)
9 dBi
- Impedance
50 Ohm
- Antenna gain (2.4 GHz)
6 dBi
- Antenna gain (5 GHz)
9 dBi
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381230 Delock 89590 Internal antenna WLAN
Description
This WLAN antenna can be connected to a WLAN device with RP-SMA connection, in order to receive and transmit signals.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x RP-SMA plug
- Frequency range:
- 2.400 - 2.500 GHz
- 5.150 - 5.875 GHz
- Compatible with Bluetooth
- Antenna gain:
- 6 dBi @ 2.400 - 2.500 GHz
- 9 dBi @ 5.150 - 5.875 GHz
- Impedance: 50 ohm
- Polarisation: linear, vertical
- HBW horizontal opening angle: 55°
- VBW vertical aperture angle: 24°
- VSWR 2.5
- Operating temperature: -10 °C ~ 55 °C
- ABS casing material
- Colour, black
- Antenna length incl. magnetic base: Approx. 16.2 cm
- Properties of pedestal:
- Magnetic underside
- Rubberised base
- wall mounting capability
- Cable type: Coaxial
- Cable type ULA 100
- Cable color: Black
- Cable attenuation: 1.4 dB @ 2.5 GHz per meter
- Cable diameter: Approx. 2.79 mm
- Cable length: approx. 1 m
- Dimensions:
- Antenna (LxWxH): Approx. 162 x 66 x 18 mm
- Base (LxWxH): Approx. 80 x 77 x 15 mm
System requirements
- Device with a free RP-SMA socket
