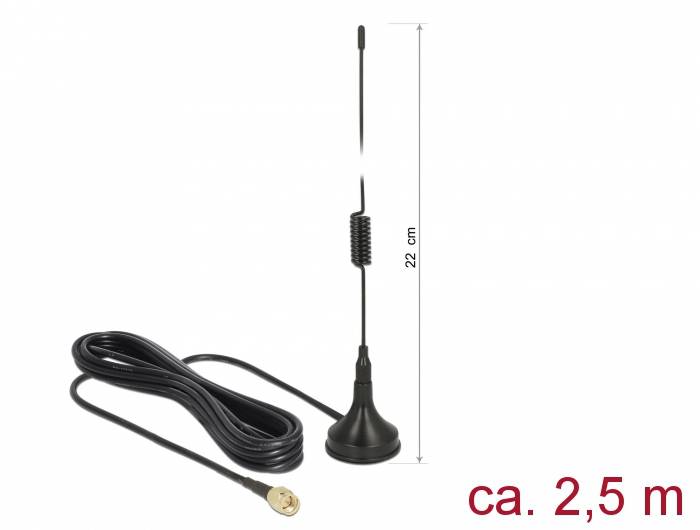

Delock 89613 Internal antenna GSM, UMTS
EAN:
Part number:
Item no:
Highlights & Details
GSM / UMTS / LTE antenna SMA plug 2 dBi solid directional with connection cable RG-174 2.5 m outdoor black
Technical specifications
- Product type
Mobile phone antenna
- Mobile phone standard
GSM
LTE
UMTS
- Factory colour
Black
- Gain
2 dBi
- Antenna type
Internal antenna
- Suitable for mains
GSM
UMTS
- Width
29.5 cm
- Height
22 cm
- Cable length
2.5 m
- Version
Adapter
- Cable use
Networks
- Charging capacity (max.)
7.5 W
- Charging capacity (min.)
2.5 W
- Weight
0.10
- UKCA
yes
- Gain
1.5 dB
- Antenna gain level (max)
2 dBi
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
- Antenna cable length
2.5 m
- Frequency range
900 - 1800 MHz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3382114 Delock 89613 Internal antenna GSM, UMTS
Description
The antenna from Delock enables the use of different LTE, GSM and UMTS bands indoors and outdoors. It is completely LTE, GSM, UMTS, ZigBee 902/928 MHZ, DECT, Z-Wave 908/921 MHZ, NB-IoT compatible
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- LTE, GSM, UMTS, Z-Wave 908/921 MHz, ZigBee 902/928 MHz, DECT, NB-IoT
- Frequency range:
- 900 - 1800 MHz
- 1900 - 2100 MHz
- Antenna gain 2 dBi
- Impedance: 50 ohm
- VSWR: ≤2.0
- Polarisation: Linear
- Operating temperature -40 °C ~ 85 °C
- Colour, black
- Cable type: Coaxial
- Cable type: RG-174
- Cable color: Black
- Cable diameter: Approx. 2.9 mm
- Cable attenuation: 1.5 dB @ 1.5 GHz per meter
- Minimum bend radius: Approx. 10.5 mm
- Cable length incl. connections: Approx. 2.5 m.
- Antenna length incl. magnetic base: Approx. 22.0 cm
- Diameter of magnetic base: Approx. 29.5 mm
System requirements
- Device with a free SMA socket
