Delock 89614 Internal antenna LTE
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

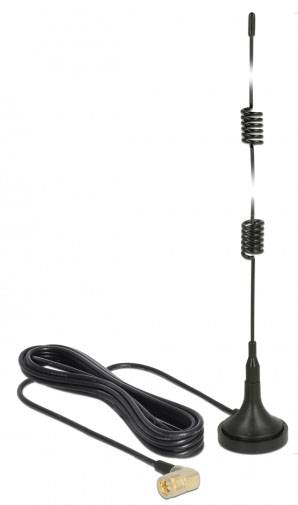

LTE antenna SMA plug 90° 2.5 dBi omnidirectional antenna with magnetic stand and connection cable RG-174 2.5 m outdoor black
Technical specifications
- Cable type: RG-174
- Product type
Mobile phone antenna
- Mobile phone standard
LTE
- Factory colour
Black
- Gain
2.5 dBi
- Antenna type
Internal antenna
- Suitable for mains
LTE
- Width
32.6 mm
- Height
265 mm
- Cable length
2.5 m
- Version
Adapter
- Cable use
Networks
- Weight
0.000
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Antenna gain level (max)
2.5 dBi
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
- Diameter
3.26 cm
Documents & Downloads
Datasheet
Datasheet 3382115 Delock 89614 Internal antenna LTE
User & Safety Instructions
User & Safety Instructions 3382115 Delock 89614 Internal antenna LTE
Description
This Delock LTE antenna allows multiple LTE tapes to be used indoors and outdoors. It is completely GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, NB-IoT, ISM, and LoRa 868 MHz / 915 MHz compatible.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x 90° SMA plugs
- GSM, UMTS, LTE, BLUETOOTH, ISM, LoRa, Z-Wave, WLAN, Zigbee, DECT, NB-IoT ISM
- Frequency range:
- 690 - 960 MHz
- 1710 - 2700 MHz
- Antenna gain 2.5 dBi
- Impedance: 50 ohm
- VSWR: ≤2.0
- Polarisation: Linear
- Operating temperature -40 °C ~ 85 °C
- Colour, black
- Cable type: Coaxial
- Cable type: RG-174
- Cable color: Black
- Cable attenuation: 1.5 dB @ 1.5 GHz per meter
- Minimum bend radius: Approx. 10.5 mm
- Cable diameter: Approx. 2.9 mm
- Cable length incl. connections: Approx. 2.5 m.
- Antenna length incl. magnetic base: Approx. 26.5 cm
- Diameter of magnetic base: Approx. 32.6 mm
System requirements
- Device with a free SMA socket
