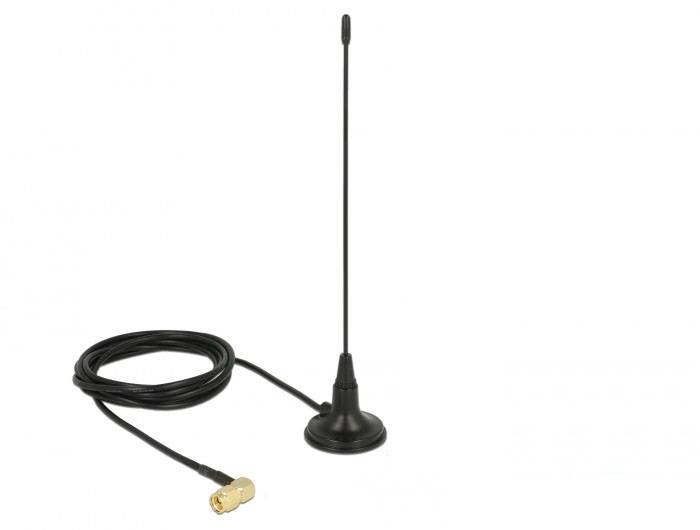

Delock 89615 Mag mount antenna
EAN:
Part number:
Item no:
Highlights & Details
480 MHz Antenna SMA plug 90° 2.5 dBi omnidirectional emission with magnetic base and connection cable RG-174 1.5 m outdoor black
Technical specifications
- Cable type: RG-174
- Product type
Mobile phone antenna
- Factory colour
Black
- Gain
2.5 dBi
- Length
16.6 cm
- Antenna type
Mag mount antenna
- Width
33 mm
- Height
16.6 cm
- Cable design
Round
- Cable length
1.5 m
- Version
Cable
- Cable use
C13/C14 appliances
- Weight
0.035
- UKCA
yes
- Operating temperature (T-T)
-40 - 85 °C
- Antenna gain level (max)
2.5 dBi
- Impedance
50 Ohm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3383578 Delock 89615 Mag mount antenna
Description
This Delock antenna allows you to use the 480 MHz bandwidth in indoor and outdoor areas.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x 90° SMA plugs
- Frequency range 480 MHz
- Antenna gain 2.5 dBi
- Impedance: 50 ohm
- VSWR: ≤2.0
- Polarisation: Linear
- Operating temperature -40 °C ~ 85 °C
- Colour, black
- Cable type: Coaxial
- Cable type: RG-174
- Cable color: Black
- Cable diameter: Approx. 2.9 mm
- Cable attenuation: 1.5 dB @ 1.5 GHz per meter
- Minimum bend radius: Approx. 10.5 mm
- Antenna length incl. magnetic base: Approx. 16.6 cm
- Cable length incl. connection: Approx. 1.5 m.
- Diameter of magnetic base: Approx. 33.0 mm
System requirements
- Device with a free SMA socket
