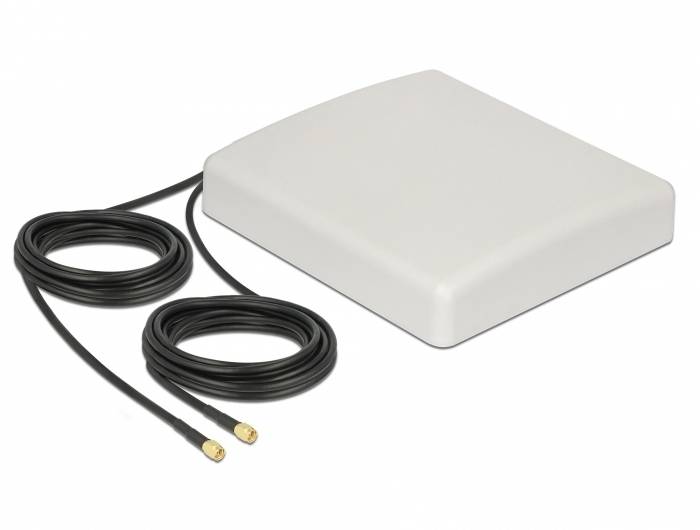

Delock 89890 Wall/pole mount antenna LTE
EAN:
Part number:
Item no:
Highlights & Details
LTE MIMO Antenna 2 x SMA Plug 8 dBi directional with connection cable RG-58 5 m white outdoor
Technical specifications
- Cable type: RG-58
- Product type
Mobile phone antenna
- Mobile phone standard
LTE
- Factory colour
White
- Gain
8 dBi
- Length
23.7 cm
- Antenna type
Wall/pole mount antenna
- Suitable for mains
LTE
- Width
22.9 cm
- Height
5 cm
- Cable design
Round
- Cable length
5 m
- Version
Cable
- Depth
237 mm
- Cable use
C13/C14 appliances
- Charging capacity (max.)
7.5 W
- Charging capacity (min.)
2.5 W
- Weight
700 g
- UKCA
yes
- Operating temperature (T-T)
-40 - 65 °C
- Antenna gain level (max)
8 dBi
- Impedance
50 Ohm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3381268 Delock 89890 Wall/pole mount antenna LTE
Description
The MIMO antenna from Delock allows you to use various LTE bands indoors and outdoors. It is fully GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth and LoRa 868 MHz / 915 MHz compatible.
This text is machine translated.
This text is machine translated.
Features
- Connection 2 x SMA plug
- GSM, UMTS, LTE, ZIGBEE, DECT Z-Wave, NB-IoT, WLAN, Bluetooth,
- LoRa 868 MHz / 915 MHz, MIMO
- Frequency range:
- 698 - 960 MHz
- 1710 - 2700 MHz
- Antenna gain 8 dBi
- Impedance: 50 ohm
- VSWR: ≤2.0
- Polarisation: Vertical, horizontal
- HBW horizontal opening angle: 75°
- VBW vertical aperture angle: 65°
- Cable type: RG-58
- Cable length incl. connection: Approx. 5 m.
- Operating temperature -40 °C - 65 °C
- ABS casing
- Weight: approx. 0.7 kg
- Dimensions (LxWxH): Approx. 23.7 x 22.9 x 5.0 cm
- Max. Mast diameter: Ca. 5.5 cm
System requirements
- Device with two free SMA connectors
