Delock 90023 90023 N connector Socket 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Cable category
LMR 400
Product type
N connector
Connector type
Socket
Connection
Socket
Datasheet (PDF)
Highlights & Details

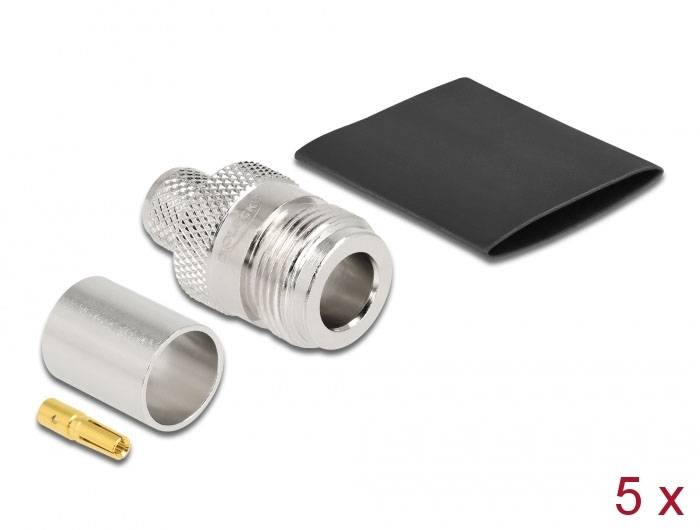

N socket for crimping LMR 400 with suitable 5x shrink hose
- Connection type N-type
- 0 - 6000 MHz 50 ohm
- Housing material: Brass
- Nickel
- 5 pieces(s)
Technical specifications
- Port 1: No.
- Packaging type
Piece
- Cable category
LMR 400
- Product type
N connector
- Connector type
Socket
- Connection
Socket
- Content
1 pc(s)
- Case material
Brass nickel plated
- Manufacturer part #
90023
- Length
27.8 mm
- Type
90023
- Cable design
Round
- Version
Cable
- Factory colour
Nickel
- Depth
27.8 mm
- Height
16.5 mm
- Width
16.5 mm
- Cable use
C13/C14 appliances
- Charging capacity (max.)
7.5 W
- Charging capacity (min.)
2.5 W
- Weight
0.14
- UKCA
yes
- Impedance
50 Ohm
- Quantity per pack
5 Stück(e)
- Frequency range
0 - 6000 MHz
Documents & Downloads
Datasheet
Datasheet 3381663 Delock 90023 90023 N connector Socket 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3381663 Delock 90023 90023 N connector Socket 1 pc(s) Piece
Description
This socket including suitable heat-shrink tubing from Delock is suitable for connecting components of high-frequency technology.
This text is machine translated.
This text is machine translated.
Features
- 1 x N socket for crimping
- Cable type LMR 400
- Housing: Nickel-plated brass
- Impedance: 50 ohm
- Frequency range DC - 6 GHz
- Dimensions (LxWxH):
- Connection: Approx. 27.8 x 16.5 x 16.5 mm
- Heat shrink tubing: Approx. 30 x 17.5 x 17.5 mm
System requirements
- Coaxial cable suitable for crimping
