Delock 90052 Internal antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

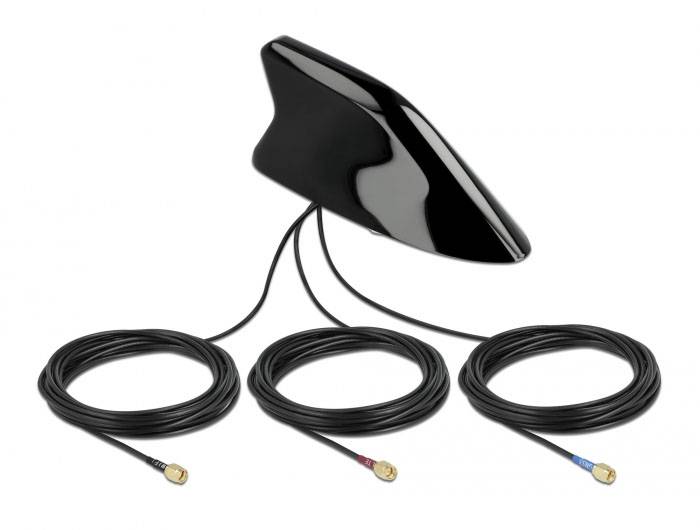

Shark Fin antenna with LTE + WLAN + GNSS multi-band
Technical specifications
- Product type: Car GPS antenna
- Product type
Mobile phone antenna
- Factory colour
Black
- Length
182 mm
- Antenna type
Internal antenna
- Width
70 mm
- Height
69 mm
- Cable design
Round
- Cable length
3 m
- Version
Cable
- Cable use
C13/C14 appliances
- Weight
100 g
- UKCA
yes
- Impedance
50 Ohm
Documents & Downloads
Datasheet
Datasheet 3383477 Delock 90052 Internal antenna
User & Safety Instructions
User & Safety Instructions 3383477 Delock 90052 Internal antenna
Description

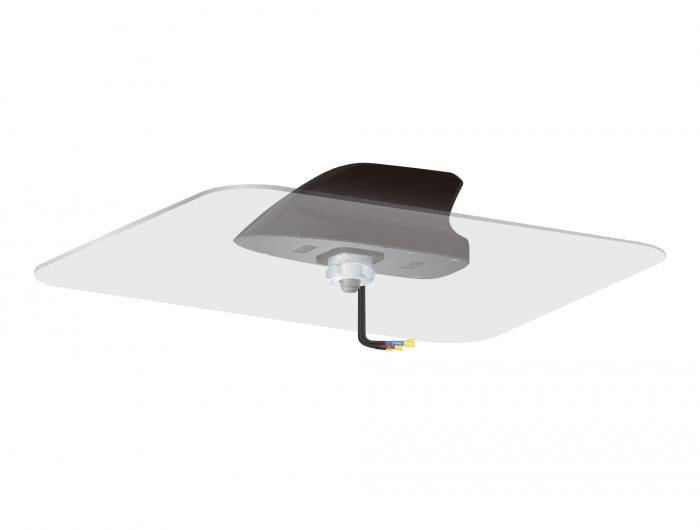

This multi-band antenna by Delock is for mounting on a car roof.
The so-called Shark Fin antenna has three different frequency bands. The GPS patch antenna receives the signals from the Global Navigation Satellite Systems GALILEO and GPS. And it works with all standard LTE tapes as well. With the help of the 2.4 GHz frequency band the WLAN range is also covered.
Stylish and functional
The modern design of this Shark Fin antenna not only looks good, but is also especially stable and aerodynamically.
This text is machine translated.
The so-called Shark Fin antenna has three different frequency bands. The GPS patch antenna receives the signals from the Global Navigation Satellite Systems GALILEO and GPS. And it works with all standard LTE tapes as well. With the help of the 2.4 GHz frequency band the WLAN range is also covered.
Stylish and functional
The modern design of this Shark Fin antenna not only looks good, but is also especially stable and aerodynamically.
This text is machine translated.
Features
- Connections:
- 1 x SMA plug
- 1 x SMA plug
- 1 x RP-SMA plugs
- SMA plug
- Frequency range:
- 698 - 960 MHz
- 1710 - 2690 MHz
- Antenna gain 3.5 dBi
- VSWR: Less than 3.0
- Impedance: 50 ohm
- Polarisation: Linear
- RP-SMA plug:
- Frequency range:
- 2400 - 2483.5 MHz
- Antenna gain 3.0 dBi
- VSWR: Less than 2.0
- Impedance: 50 ohm
- Polarisation: Linear
- SMA plug
- Frequency range:
- GPS 1.5754200 GHz
- GALILEO 1.5754200 GHz
- Antenna gain 2 dBi
- VSWR: Less than 1.5
- Impedance: 50 ohm
- Polarization: RHCP
- LNA GNSS:
- Antenna gain 28.0 dBi
- Noise factor: Less than 2.0 dB
- VSWR: Less than 2.0
- Power supply 3.0 - 5.0 V/max.
- Current consumption: Less than 15 mA
- Operating temperature -40 °C ~ 85 °C
- ABS casing material
- Cable length approx. 3 m
- Cable color: Black
- Cable type: RG-174
- Protection class IP67
- Dim. (LxWxH): Approx. 182 x 70 x 69 mm
System requirements
- Devices with free SMA / RP-SMA connections
