Delock 90102 Wall/pole mount antenna 5G, LTE, WLAN
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

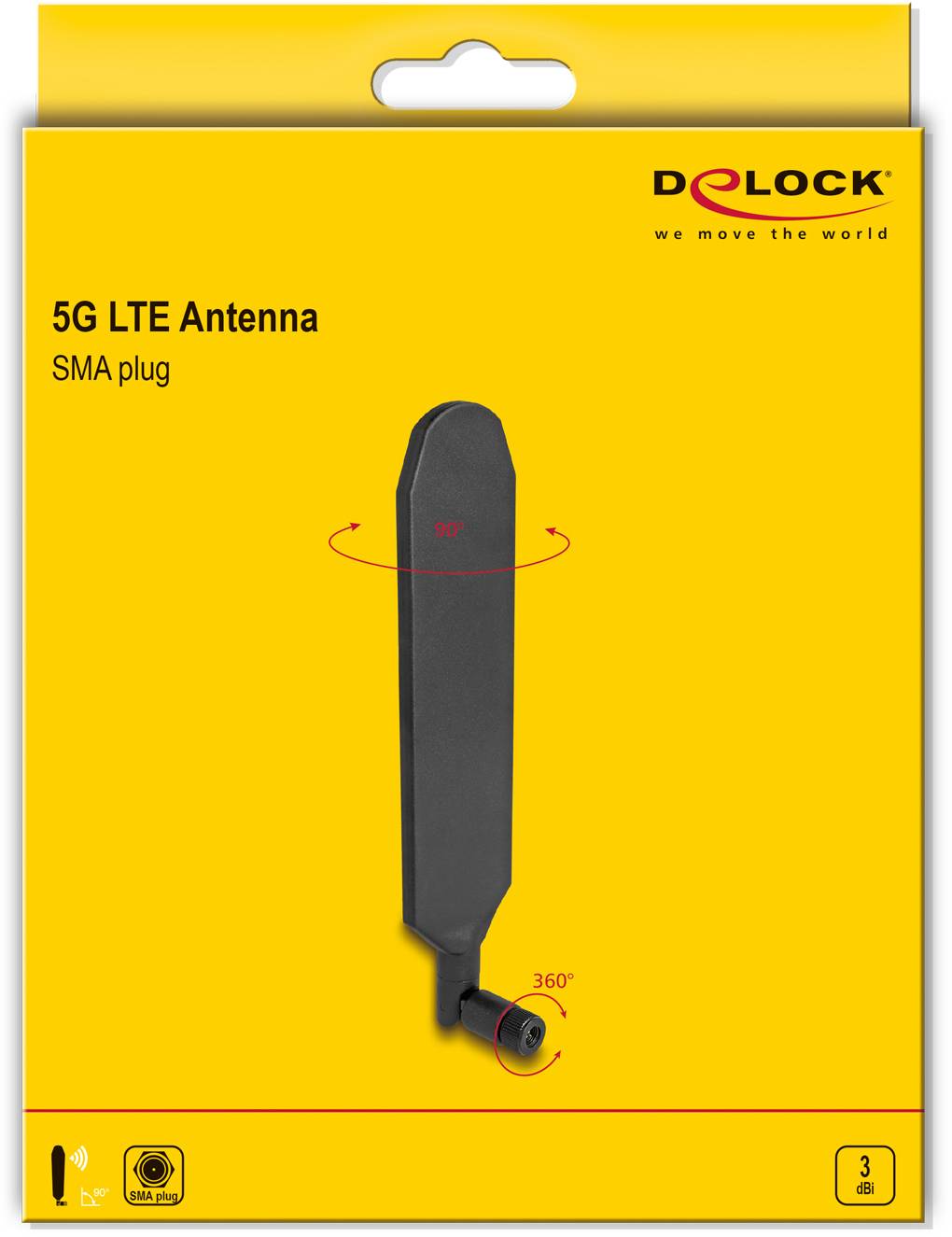

5G LTE antenna SMA plug 3 dBi omnidirectional extension possible with swiveling joint black
Technical specifications
- Product type
Mobile phone antenna
- Mobile phone standard
5G
LTE
- Factory colour
Black
- Length
209 cm
- Antenna type
Wall/pole mount antenna
- Suitable for mains
5G
LTE
WLAN
- Width
42 mm
- Height
6 mm
- Cable design
Round
- Version
Cable
- Depth
209 mm
- Cable use
C13/C14 appliances
- Weight
80 g
- UKCA
yes
- Operating temperature (T-T)
-40 - 80 °C
- Antenna gain level (max)
3 dBi
- Impedance
50 Ohm
- Quantity per pack
1 Stück(e)
- Gain
0,5 / 3 dBi
Documents & Downloads
Datasheet
Datasheet 3383475 Delock 90102 Wall/pole mount antenna 5G, LTE, WLAN
User & Safety Instructions
User & Safety Instructions 3383475 Delock 90102 Wall/pole mount antenna 5G, LTE, WLAN
Description
This Delock 5G LTE antenna allows you to use various 5G LTE bands indoors. It is fully GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM and LoRa compatible. 5G will use more and wider frequency spectrum than its predecessors LTE (4G) and UMTS (3G). The 5G standard promises more throughput, capacity and low latency.
This text is machine translated.
This text is machine translated.
Features
- Connection 1 x SMA plug
- Less than span style= color:zero "GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, LoRaminor ALS/span
- Frequency range:
- 700 - 960 MHz
- 1710 - 2700 MHz
- 2300 - 2500 MHz
- 3300 - 4000 MHz
- Antenna gain 0.5 - 3.0 dBi
- Impedance: 50 ohm
- VSWR: Max. 2.8:1
- Polarisation: linear, vertical
- Operating temperature: -40 °C ~ 80 °C
- ABS casing material
- Colour, black
- Dim. (LxWxH): Approx. 209 x 42 x 6 mm
System requirements
- Device with a free SMA connection
